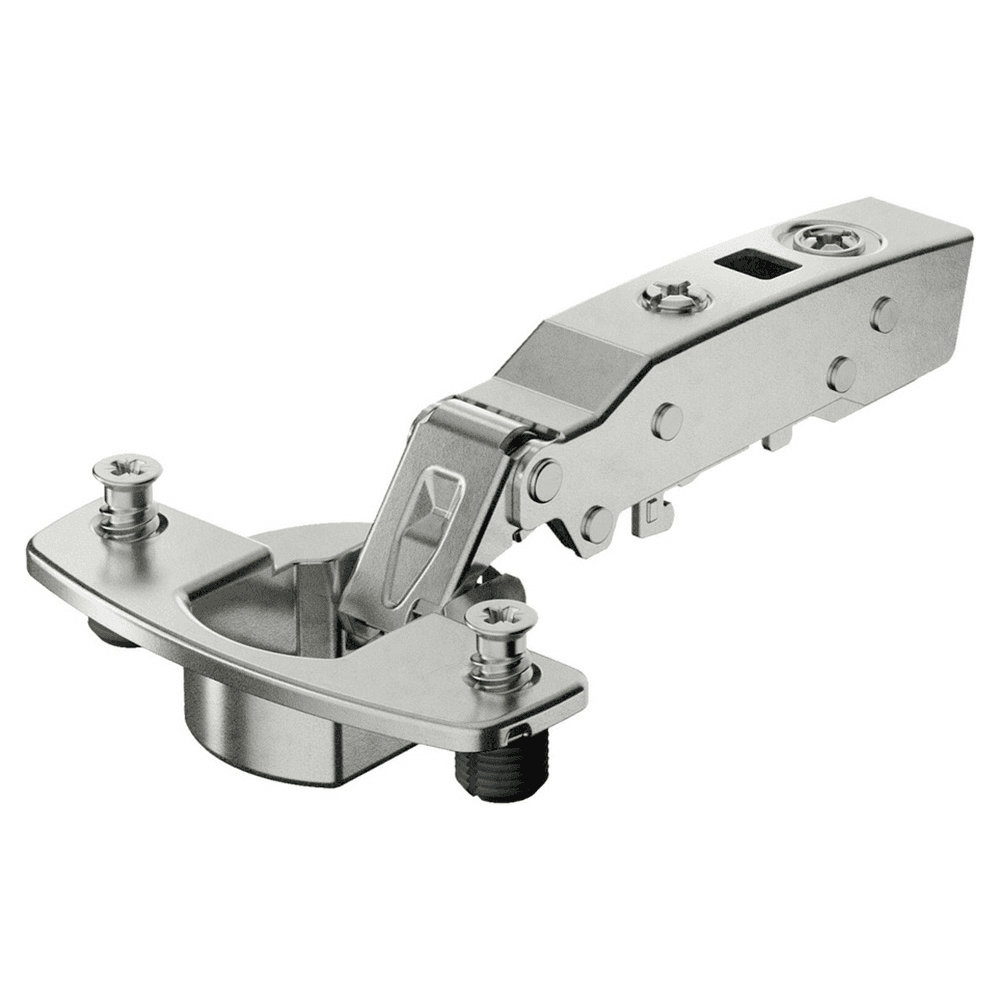

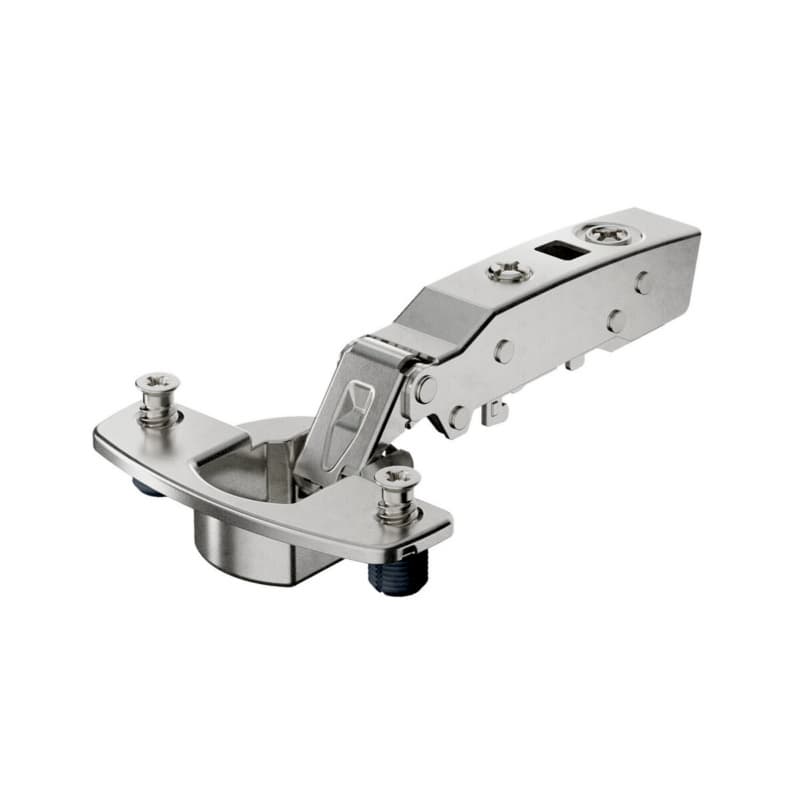

Sensys 8645i 110° Opening Hinge with Integrated Silent System, 45mm Bore Pattern, Soft-Closing, Overlay, Nickel-Plated, Dowelled
50 items
1000 items
Product Details

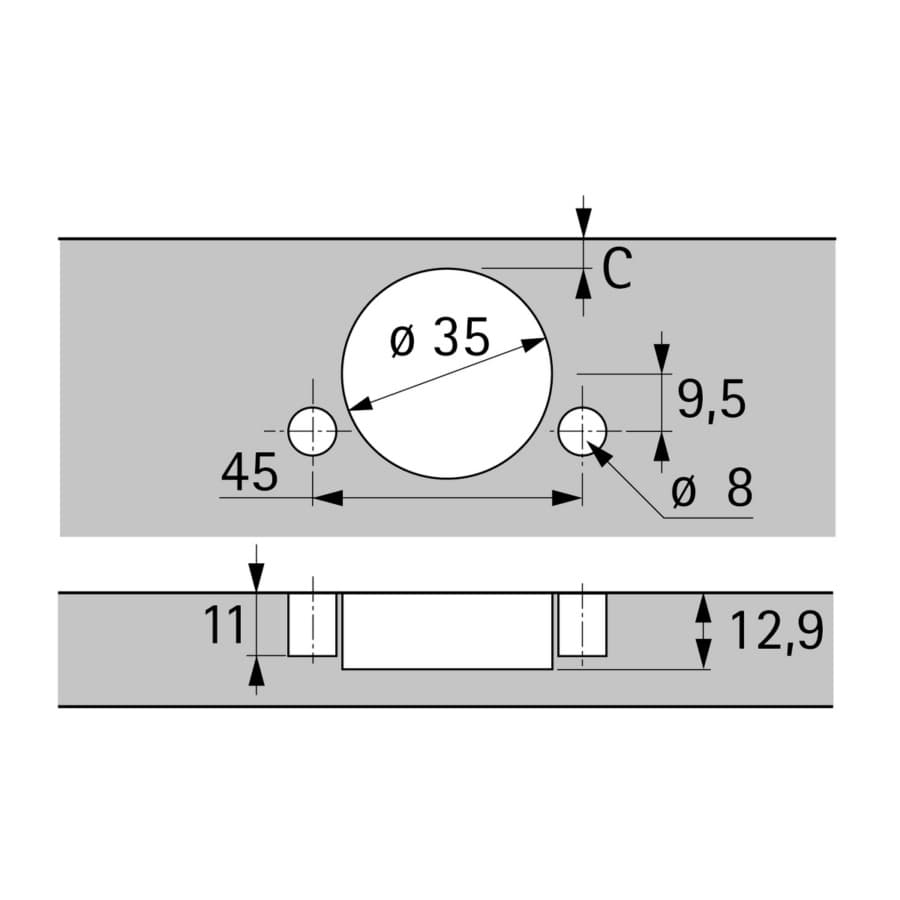

Features • Sensys 110° hinge • With integrated Silent System, with self closing feature (Sensys 8645i) • Quality classification under EN 15570, Level 3 • Opening angle 110° • For door thickness 15mm - 24mm • Door mounting option overlay (B 12.5mm) • TB - drilling pattern 45mm x 9.5mm • Cup depth 12.8mm • Installation with expanding sockets (TB 58) • Integrated overlay adjustment +2mm / -2mm • Integrated depth adjustment +3mm / -2mm • Height adjustment at mounting plate • Steel nickel plated
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Concealed Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.8mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
