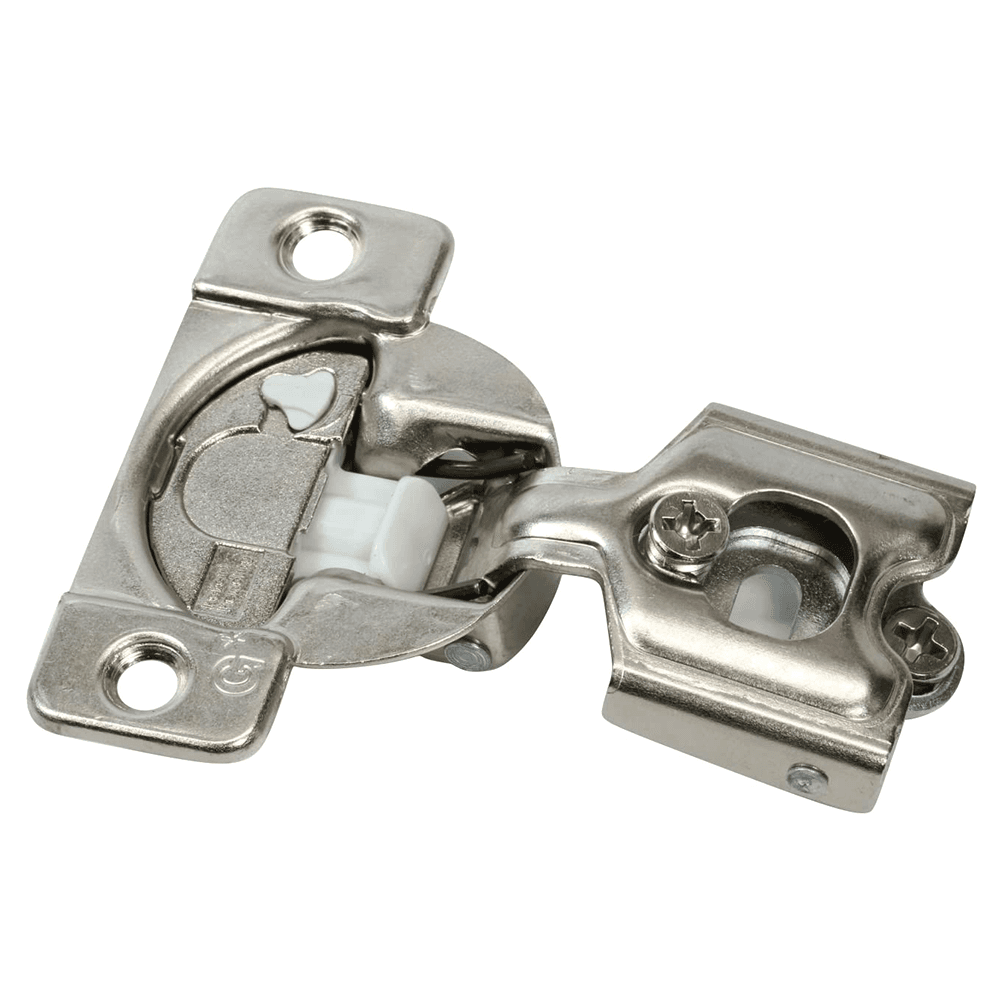

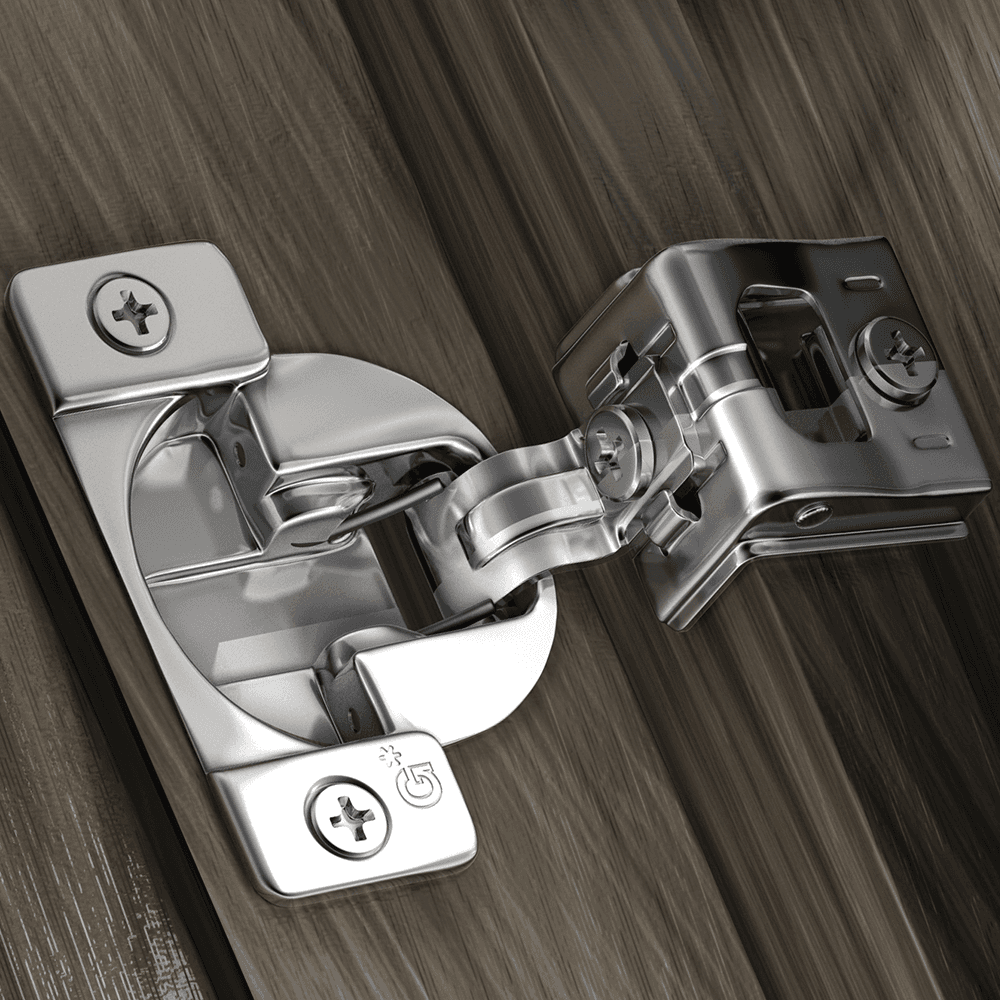

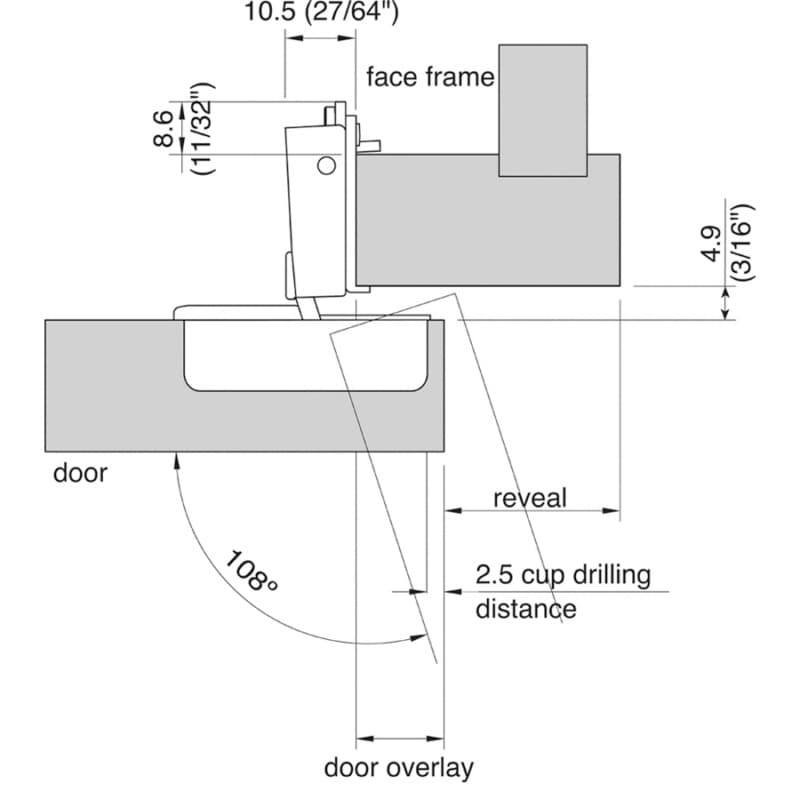

TEC 864 108° Opening Side-Mount Face Frame Hinge, 45mm Boring Pattern, Soft-Closing, 1/2" Overlay, Screw-On
Item # GTEC4423A-15
•Mfr # 04423A-15
$4.38
/Each
300 items
$3.71/Each
1500 items
$3.48/Each
Mounting Type: Screw-On
Overlay: 1/2"
Min Order: 1
Qty mult. by: 1
Product Details
The TEC hinge system offers a proven technology that makes TEC the first brand choice among face frame hinge systems. Quiet and effortless closing action is guaranteed every time with TEC Soft-close hinges. Sleek in design with the soft-close mechanism pre-mounted in the hinge cup. TEC Self-close hinges include three dimensional adjustment and a variety of overlays to meet your hinge needs. Made in the USA, TEC hinges are built to last.
Features:
• Screw-on mounting hinge, 1/2" overlay
• Soft-close damper is pre-mounted in the hinge cup
• Adjustment switch to regulate closing action
• One piece hinge and base plate combination
• 3 dimensional adjustment
• 11mm cup drilling depth
• Front locating tabs position hinge on face frame
• Cam side adjustment
• Cam depth adjustment
• Height adjustment at mounting screw
• Works with current GRASS insertion machinery
Features:
• Screw-on mounting hinge, 1/2" overlay
• Soft-close damper is pre-mounted in the hinge cup
• Adjustment switch to regulate closing action
• One piece hinge and base plate combination
• 3 dimensional adjustment
• 11mm cup drilling depth
• Front locating tabs position hinge on face frame
• Cam side adjustment
• Cam depth adjustment
• Height adjustment at mounting screw
• Works with current GRASS insertion machinery
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 300 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | 1/2" |
| Closing Type | Soft-Closing |
| Opening Angle | 108° |
| Model | |
| Hinge Type | Side-Mount Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
