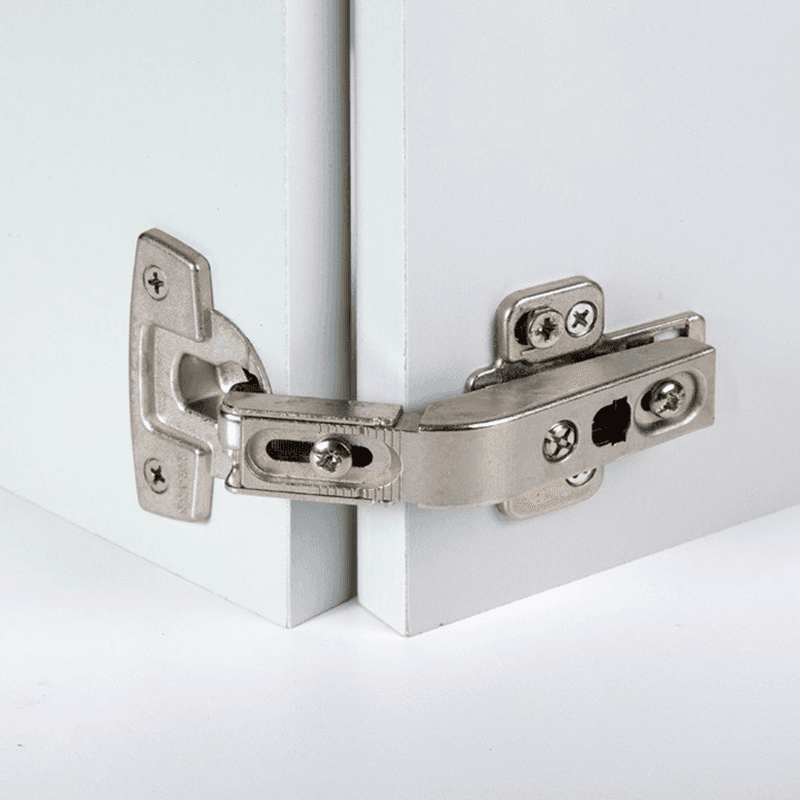

Nexis Pie-Cut Corner 170° Opening Hinge, 42mm Bore Pattern, Self-Closing, Nickel-Plated, Dowelled
Item # GNX015070140225
•Mfr # F015070140225
Mounting Type: Dowelled
Product Details
Features:
• Dowelled mount
• Nexis pie cut corner hinges in Nickel-Plated finish are designed for folding door in corner cabinet
• Use in conjunction with Nexis 170? opening hinges
• For door thickness of 19mm to 24mm
• Shallow cup depth of 10.8mm
• Side-to-side adjustment of +2mm to -2mm
• Height Adjustment of +2mm to -2mm
• Depth Adjustment of +2mm to -2mm
• Nexis hinges are designed to work with Grass Nexis mounting plates
• Dowelled mount
• Nexis pie cut corner hinges in Nickel-Plated finish are designed for folding door in corner cabinet
• Use in conjunction with Nexis 170? opening hinges
• For door thickness of 19mm to 24mm
• Shallow cup depth of 10.8mm
• Side-to-side adjustment of +2mm to -2mm
• Height Adjustment of +2mm to -2mm
• Depth Adjustment of +2mm to -2mm
• Nexis hinges are designed to work with Grass Nexis mounting plates
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 125 |
| Mounting Type | Dowelled |
| Closing Type | Self-Closing |
| Opening Angle | 170° |
| Hinge Type | Pie-Cut Corner Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 42mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.6mm |
| Cabinet Type | Face Frame/Frameless |
