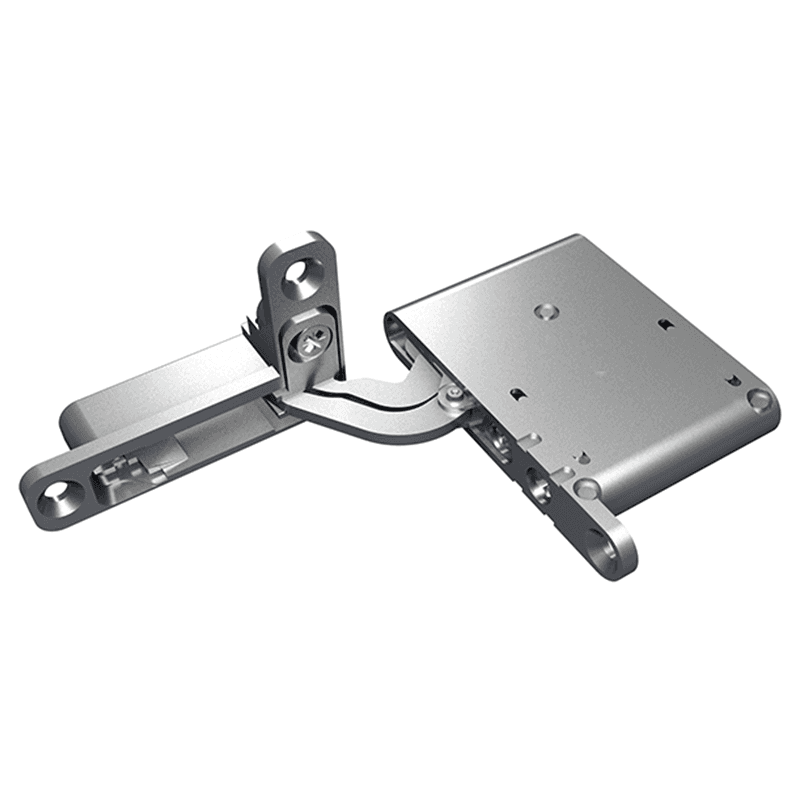

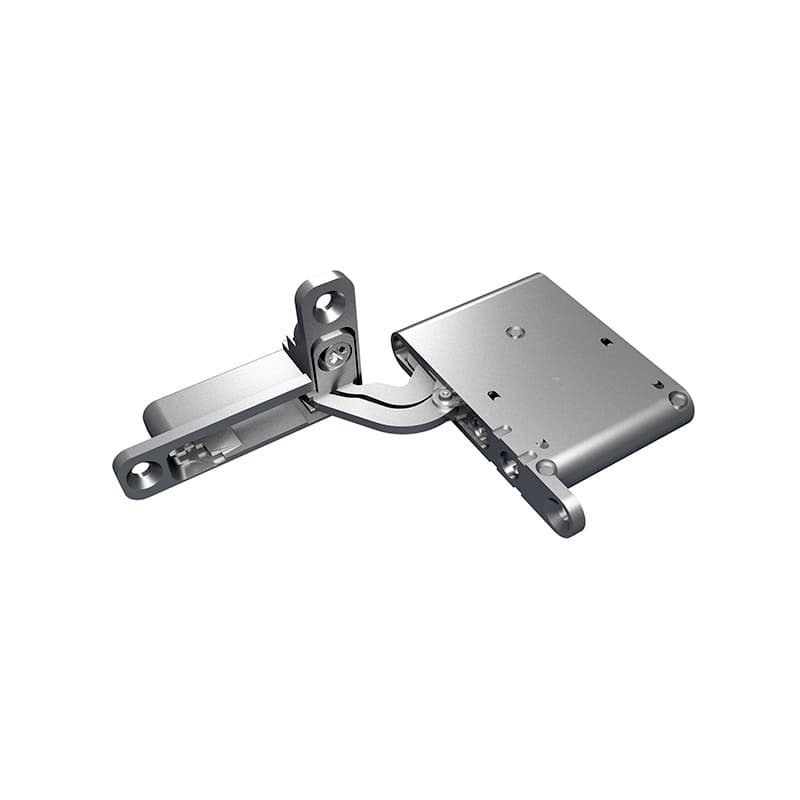

Tiomos H Invisible 105° Opening Hinge, Nickel-Plated
Item # GTIOF051139126507
•Mfr # F051139126507
Finish: Nickel-Plated
Product Details
Features:
• Available in Nickel-Plated finish

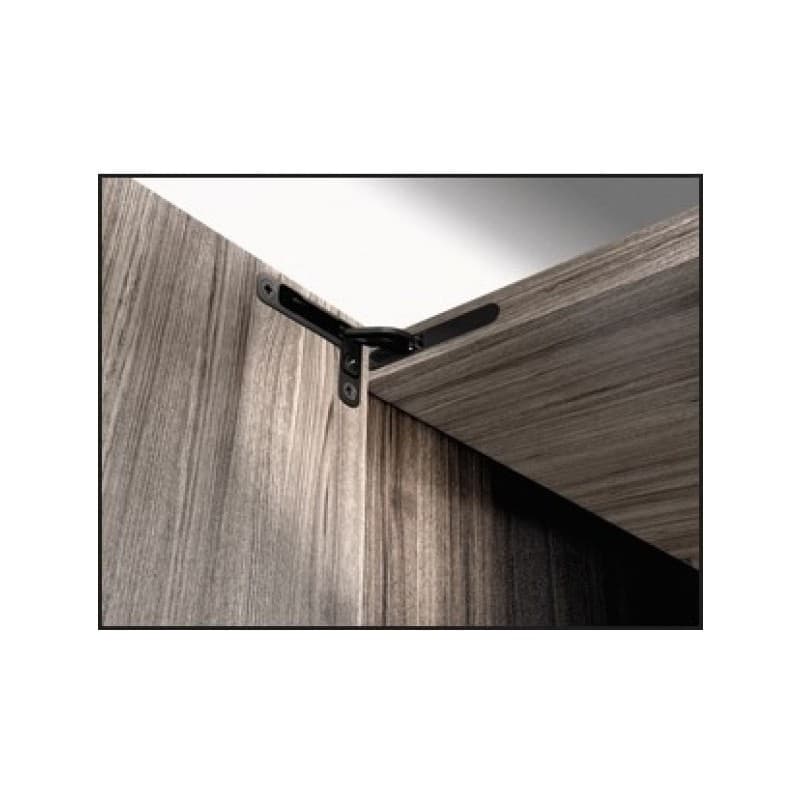

• Hidden hinge is fully recessed in cabinet

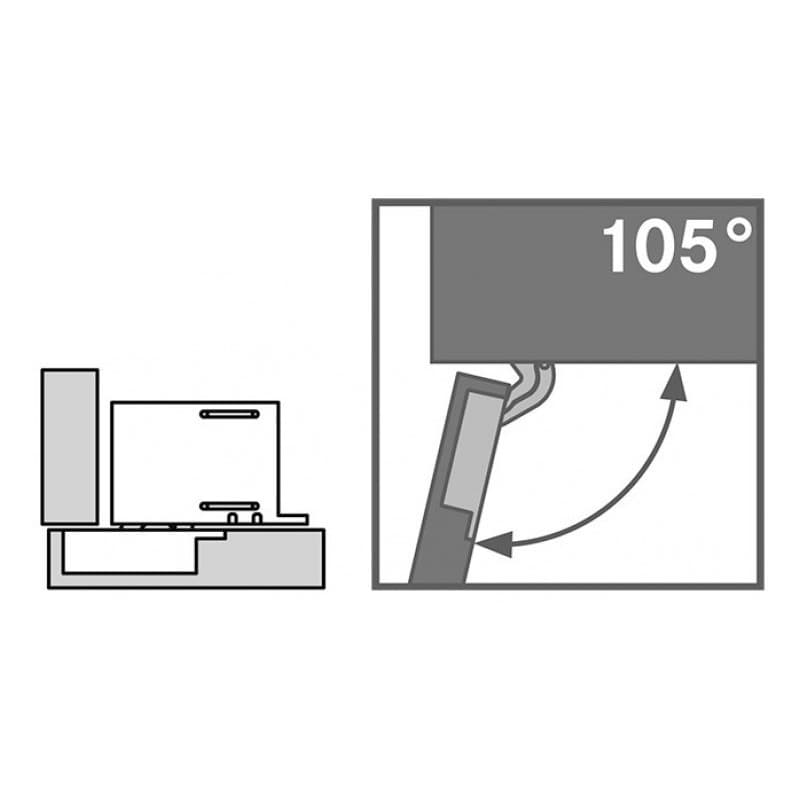

• 105? opening angle
• Integrated soft-close damper
• 3-dimentional adjustments via cam
• For door thicknesses from 18mm (21/32")
• Door recess depth: 19/32" (15mm)
• Cabinet recess depth: 1-21/32" (42mm)
• Load-bearing capacity of 26.5lb
• Available in Nickel-Plated finish
• Hidden hinge is fully recessed in cabinet
• 105? opening angle
• Integrated soft-close damper
• 3-dimentional adjustments via cam
• For door thicknesses from 18mm (21/32")
• Door recess depth: 19/32" (15mm)
• Cabinet recess depth: 1-21/32" (42mm)
• Load-bearing capacity of 26.5lb
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Finish | Nickel-Plated |
| Opening Angle | 105ø |
| Hinge Type | Invisible Hinge |
| Material | Die-Cast |
| Length | |
| Barrel Diameter | |
| Material Thickness | 18mm |
| Screw Hole | |
| Door Thickness | |
| Height | |
| Width | |
| Closing Type |
