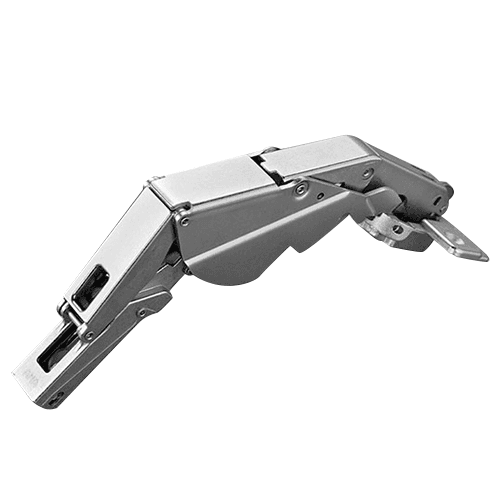

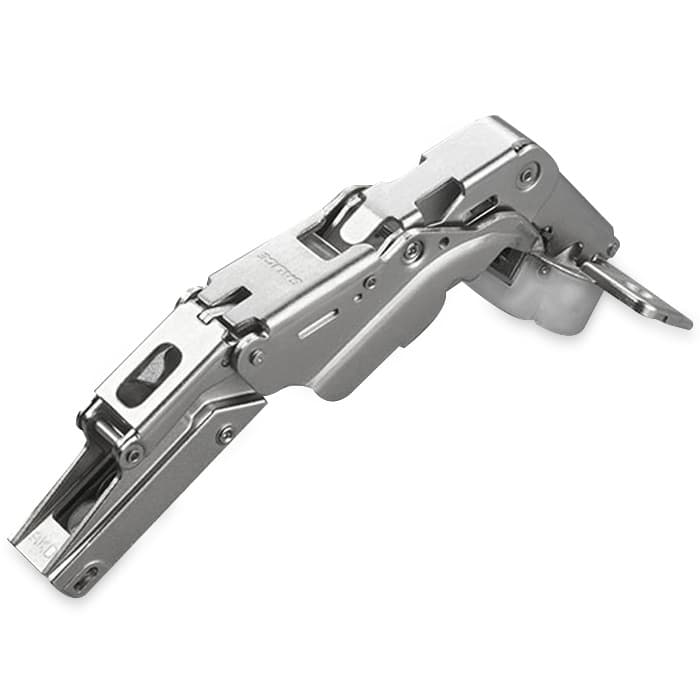

Series 200 155° Opening Hinge, 45mm Bore Pattern, Self-Closing, Full Overlay, Nickel-Plated, Screw-On
Item # SALC2PHA99
•Mfr # C2PHA99
$17.12
/Each
25 items
$15.80/Each
100 items
$15.23/Each
Min Order: 1
Quantity Multiple by: 1
Product Details
The Series 200 make up an integrated system of hinges developed to provide a solution to any situation involving concealed hinges.
Features:
• Screw-on mounting type
• Standard euro hinge in Nickel-plated finish
• For thicker doors maximum 36mm
• Hinge with greater opening angle and reduced operating profile
• Dimensions of the O 35mm cup
• Possible drilling distance on the door (K): from 3mm to 9mm
• Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates
Features:
• Screw-on mounting type
• Standard euro hinge in Nickel-plated finish
• For thicker doors maximum 36mm
• Hinge with greater opening angle and reduced operating profile
• Dimensions of the O 35mm cup
• Possible drilling distance on the door (K): from 3mm to 9mm
• Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Mounting Type | Screw-On |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 155° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel/Die-Cast Zinc |
| Cabinet Type |
