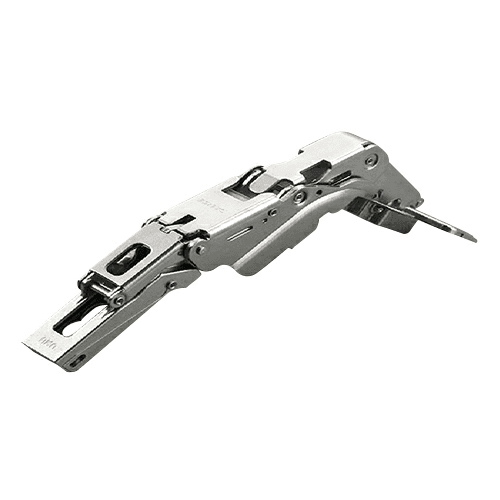

Series 200 155° Opening Hinge, 45mm Bore Pattern, Self-Closing, Full Overlay, Nickel-Plated, Dowelled
Item # SALC2RKA99
•Mfr # C2RKA99
$5.73
/Each
100 items
$5.29/Each
Min Order: 1
Qty mult. by: 1
Product Details
The Series 200 make up an integrated system of hinges developed to provide a solution to any situation involving concealed hinges.
Features:
• For minimum 10mm thick doors
• Dimensions of the O35mm cup
• 8.5mm deep die-cast cup
• 155? opening

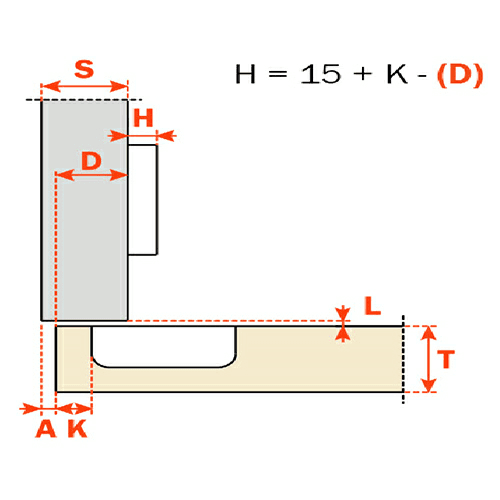

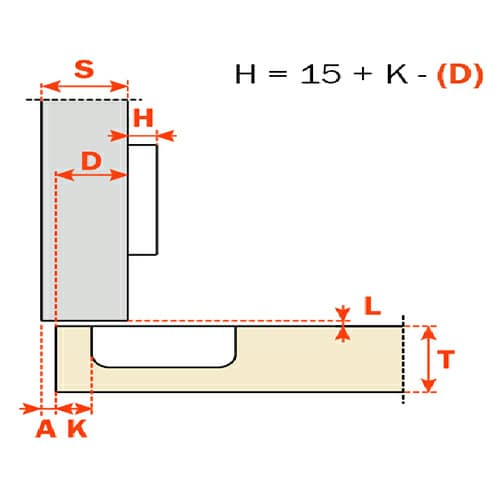

• Possible drilling distance on the door (K): from 3 to 8mm
• Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates
Features:
• For minimum 10mm thick doors
• Dimensions of the O35mm cup
• 8.5mm deep die-cast cup
• 155? opening
• Possible drilling distance on the door (K): from 3 to 8mm
• Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 155° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 8.5mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
