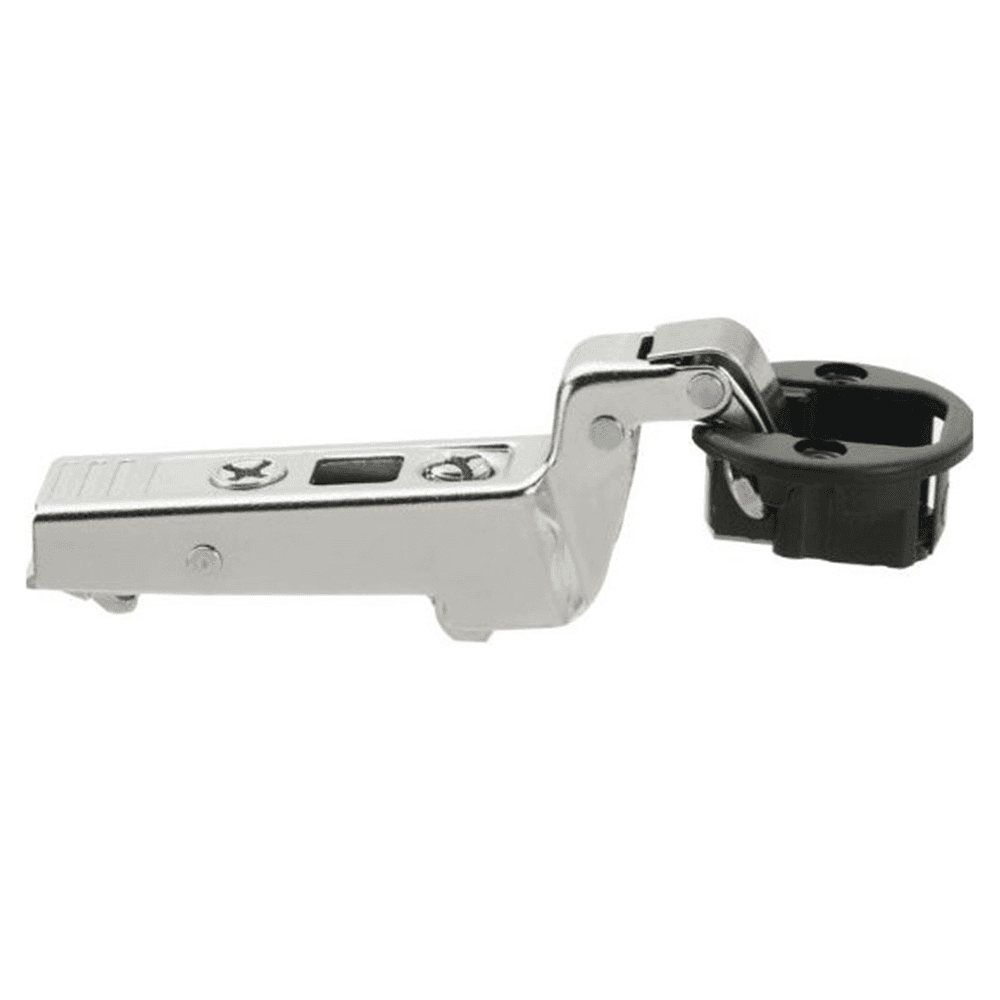

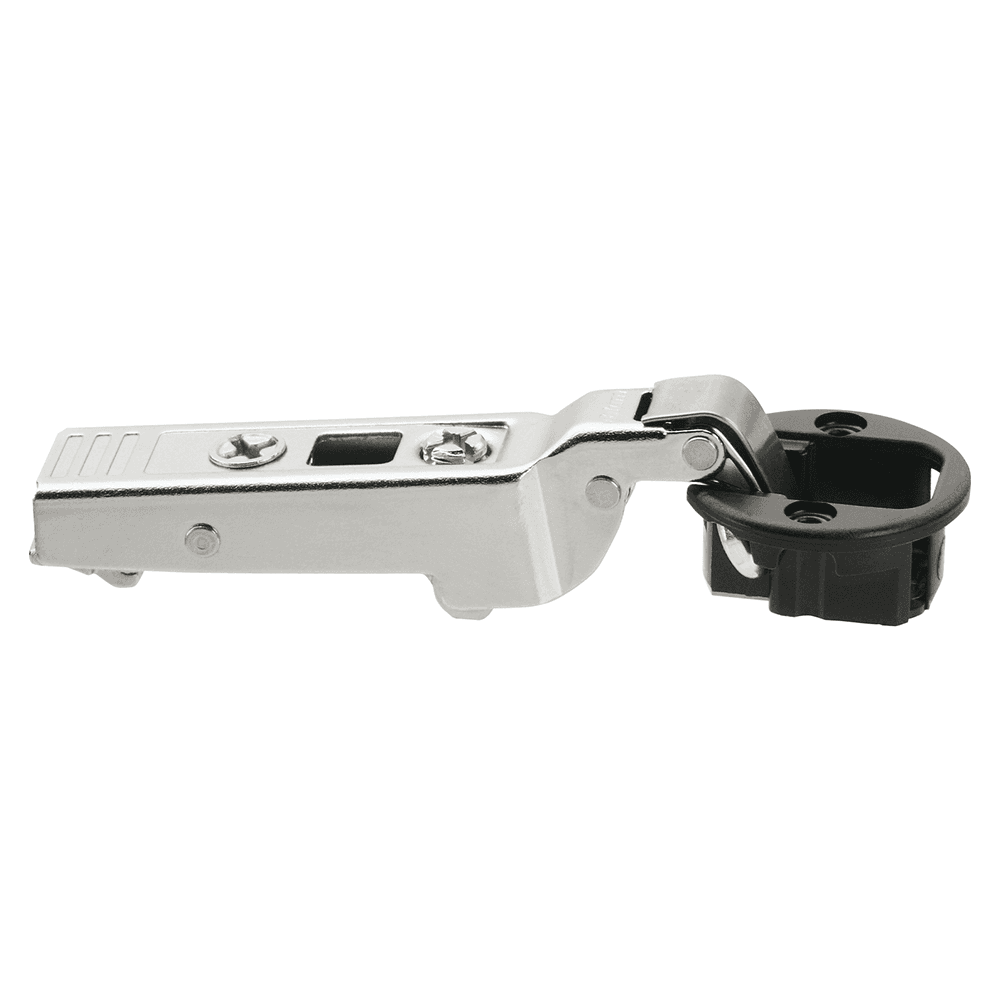

Clip Top Glass Door 94° Opening Hinge, Self-Closing, Nickel-Plated, Inset
Item # B75T430
•Mfr # 75T4300
Product Details
CLIP top hinges are concealed hinges for cabinet doors, meaning they cannot be seen when the door is closed. These hinges are easy to use and they work in almost any hinge application because of the wide variety of mounting plates available. That's right, these Euro hinges can be used in frameless and face frame cabinets. CLIP top hinges can also be easily upgraded with soft closing BLUMOTION making them a flexible and reliable option for any cabinet.
\rFeatures:\r
• For glass thickness of 4.5 mm to 7 mm
• Side adjustment of 5 mm to 3.5 mm\r
• Three-dimensional adjustment\r

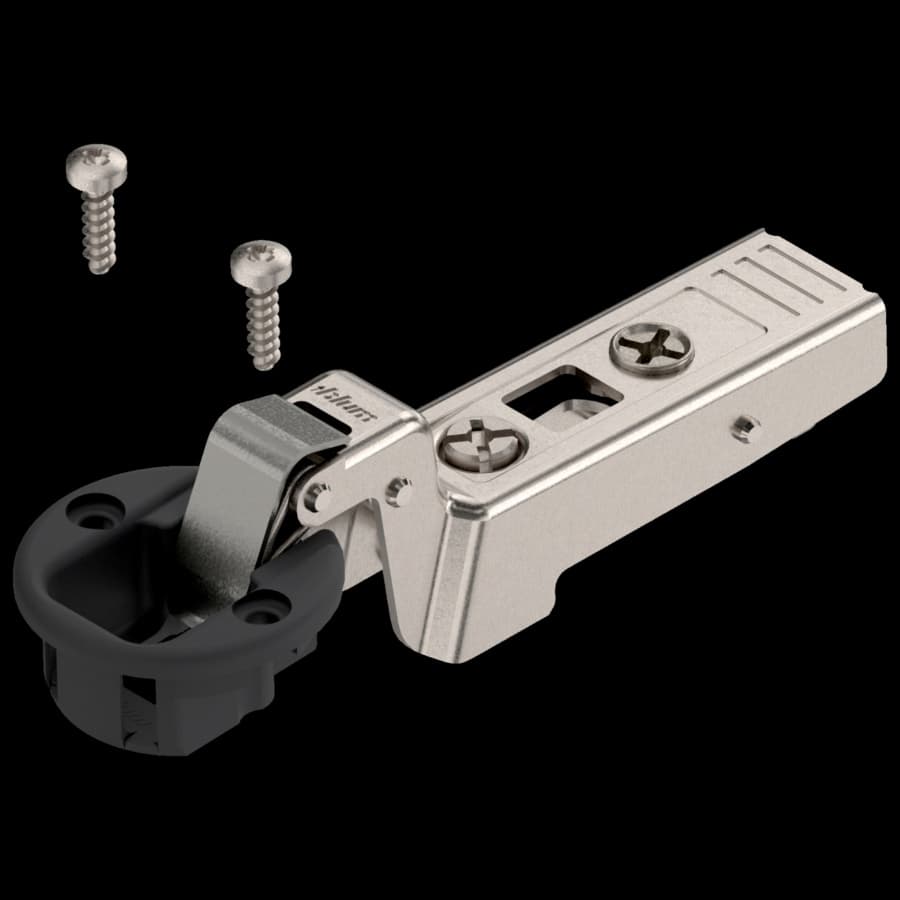

• Fixing screws included\r
• 26 mm drill bit required
\rFeatures:\r
• For glass thickness of 4.5 mm to 7 mm
• Side adjustment of 5 mm to 3.5 mm\r
• Three-dimensional adjustment\r
• Fixing screws included\r
• 26 mm drill bit required
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 50 |
| Finish | Nickel-Plated |
| Overlay | Inset Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 94° |
| Mounting Type | Screw-On |
| Hinge Type | Glass Door Face Frame/Frameless |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
