Clip Top 95° Opening Thick Door Hinge, 45mm Bore Pattern, Soft-Closing, Inset, Nickel-Plated, Dowelled
Item # B71B978
•Mfr # 71B9780
$5.67
/Each
50 items
$5.56/Each
250 items
$5.41/Each
Mounting Type: Dowelled
Min Order: 1
Qty mult. by: 1
Product Details
CLIP top BLUMOTION hinges have the soft close mechanism integrated in the hinge cup, and continues to provide the quality of motion you have come to expect from Blum.
Features:
• Dowelled mount hinge in nickel-plated finish • BLUMOTION integrated into the hinge cup • Deactivation switch for small/light doors • For door thicknesses up to 30 (1-3/16") • Overload safety feature • Compatible with existing CLIP mounting plates and hinge arm cover caps • Side adjustment: +/- 2mm • Depth adjustment: plus 3/minus 2mm, convenient with spiral screwPlease be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 250 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Inset Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 95° |
| Model | |
| Hinge Type | Thick Door Hinge |
| Finish | Nickel-Plated |

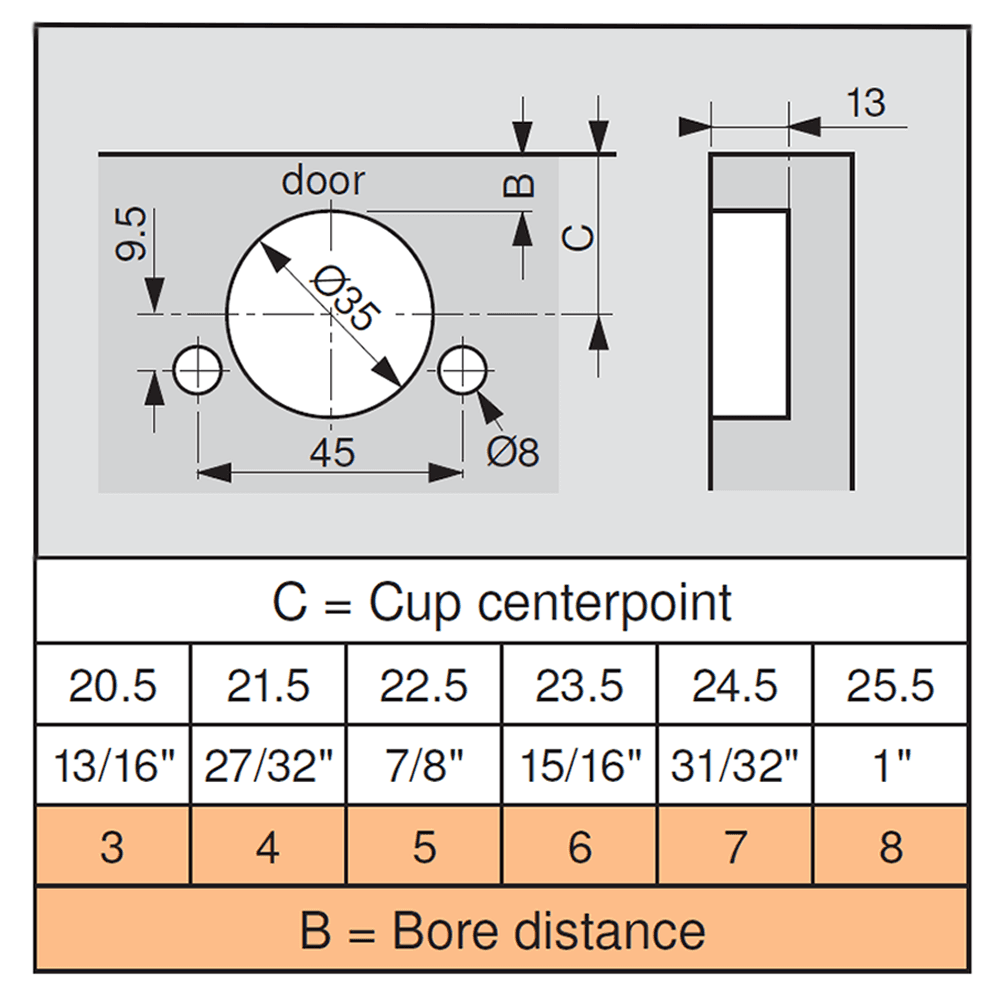

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 13mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
