Clip Top 95° Opening Thick Door Hinge, 45mm Bore Pattern, Soft-Closing, Full Overlay, Nickel-Plated, Dowelled
250 items
1250 items
Mounting Type: Dowelled
Product Details
CLIP top BLUMOTION hinges have the soft close mechanism integrated in the hinge cup, and continues to provide the quality of motion you have come to expect from Blum.
Features

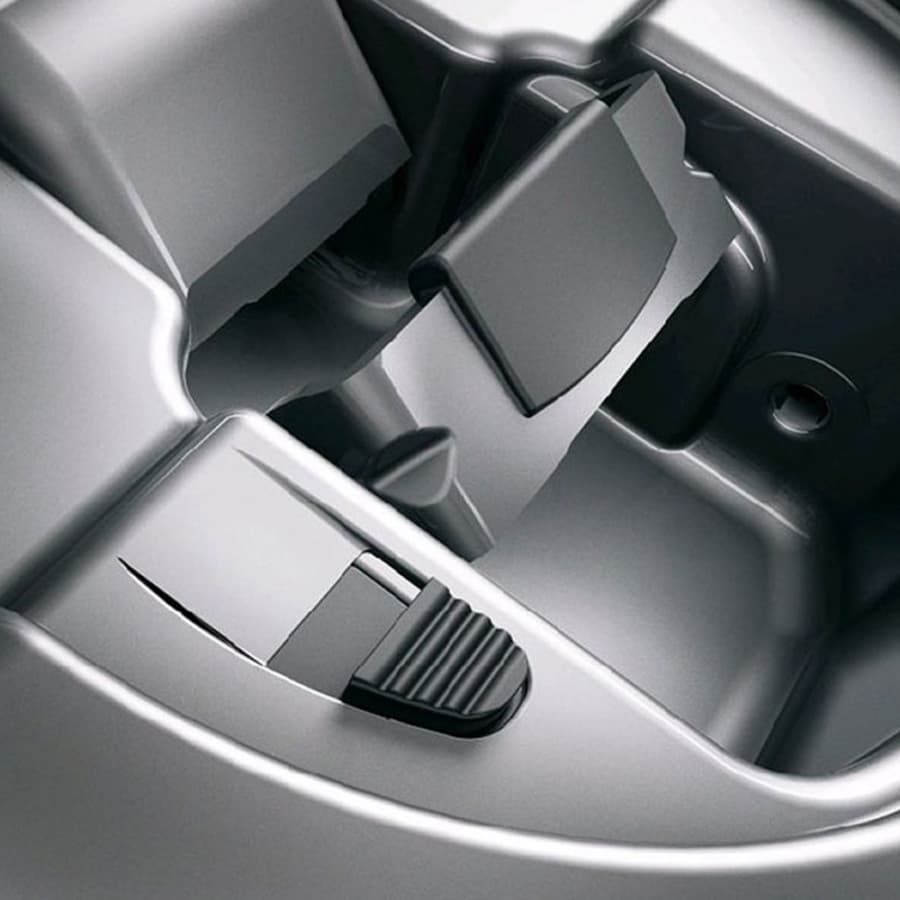

• BLUMOTION integrated into the hinge cup

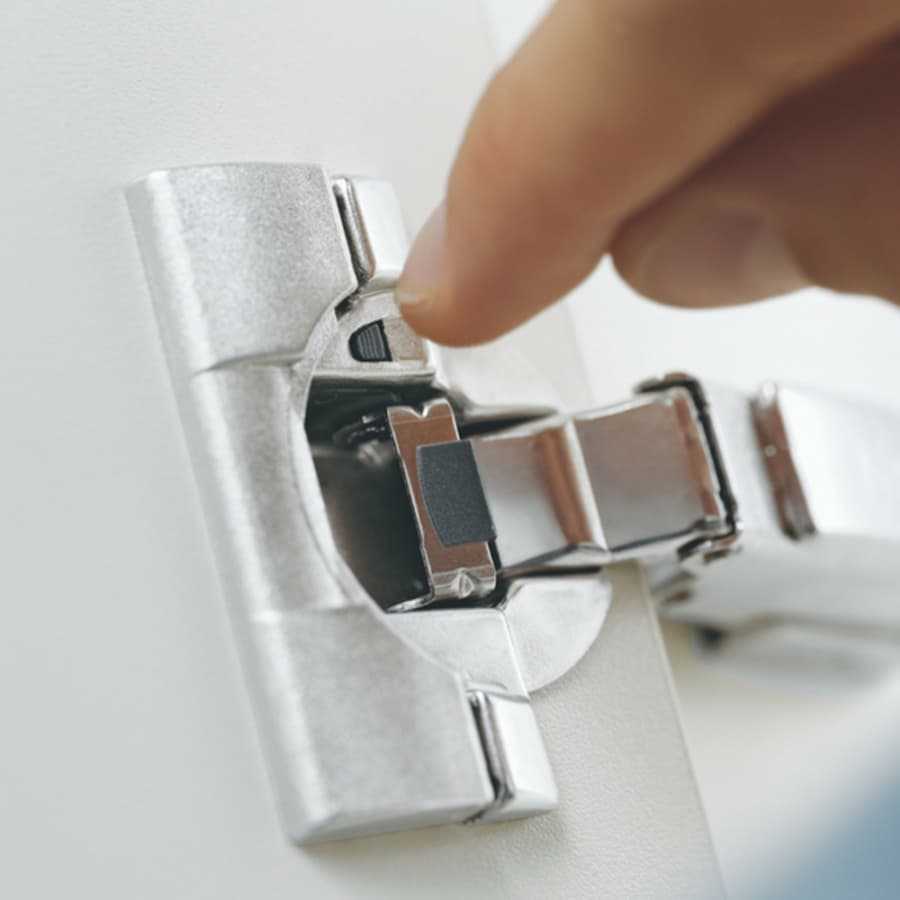

• Deactivation switch for small/light doors
• For door thicknesses up to 30 (1-3/16")
• Overload safety feature
• Compatible with existing CLIP mounting plates and hinge arm cover caps
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Mounting Type | Dowelled |
| Overlay | Full Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 95° |
| Model | |
| Hinge Type | Thick Door Hinge |
| Finish | Nickel-Plated |

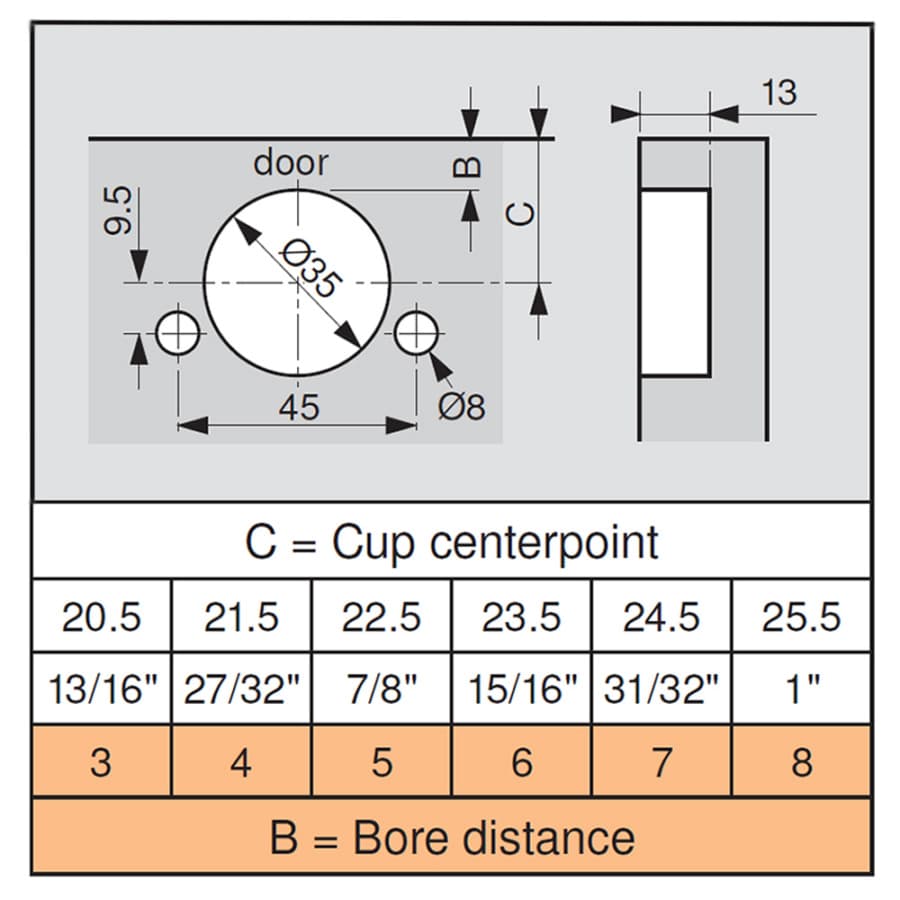

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 13mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
