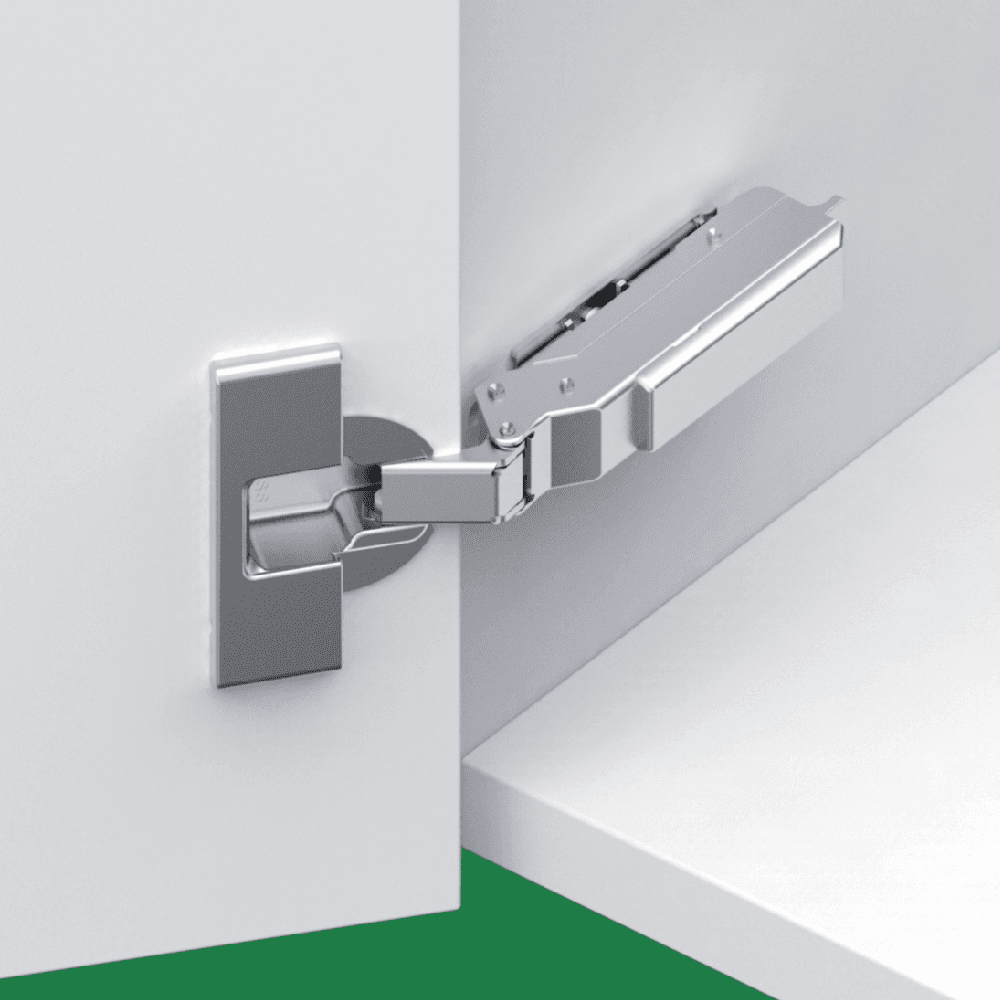

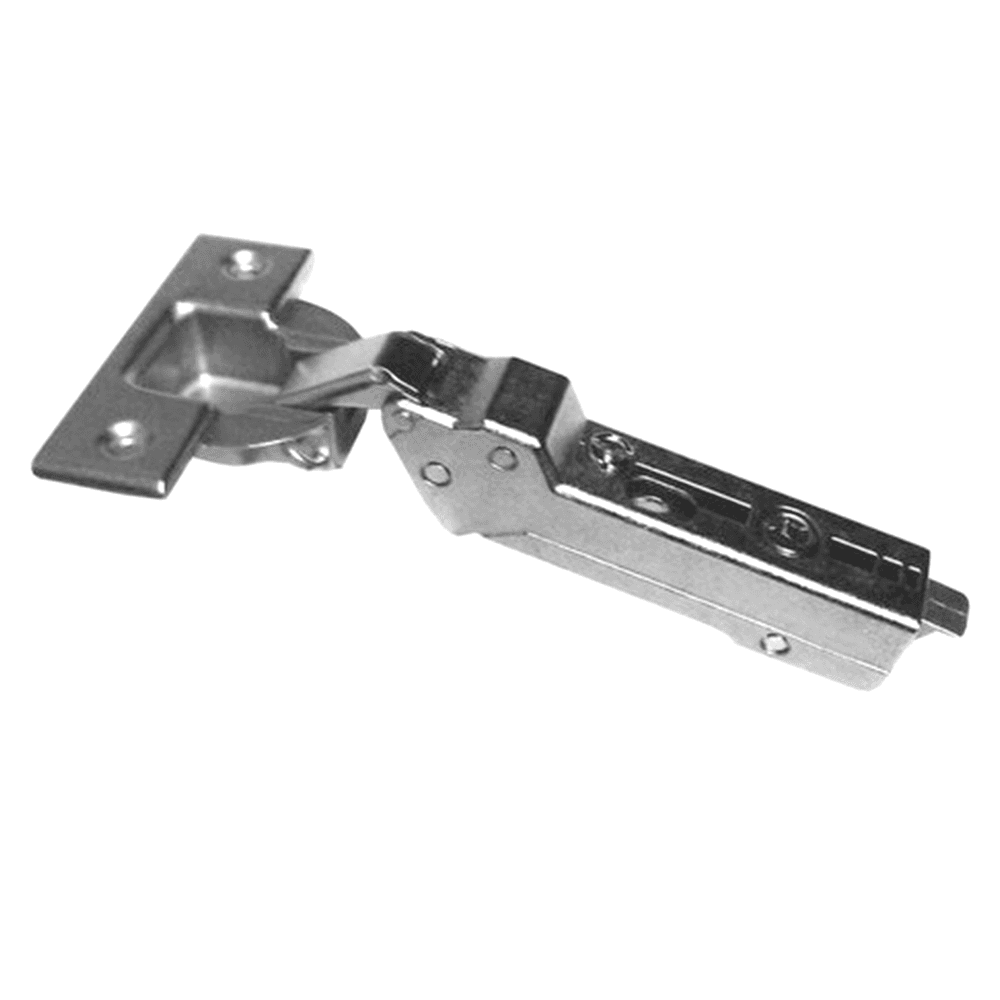

Tiomos 110° Opening Hinge, 45mm Bore Pattern, Self-Closing, Half Overlay, Nickel-Plated, Screw-On
Item # GTIOF045138459228
•Mfr # F045138459228
Mounting Type: Screw-On
Product Details
• 3-dimensional adjustment with suitable base plate
• Accommodates overlays up to 24mm (15/16•)
• Optimal reveal up to 24 mm door thickness
• For face frame or frameless cabinets
• Accommodates overlays up to 24mm (15/16•)
• Optimal reveal up to 24 mm door thickness
• For face frame or frameless cabinets
Specifications
| Box Quantity | 150 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | Half Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.6mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
