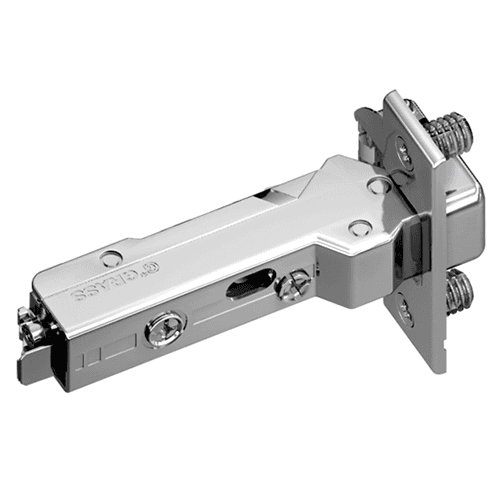

Tiomos 110° Opening Hinge, 42mm Bore Pattern, Soft-Closing, Half Overlay, Nickel-Plated, Dowelled
Item # GTIOF028138343228
•Mfr # F028138343228
$6.47
/Each
150 items
$5.50/Each
750 items
$5.17/Each
Product Details

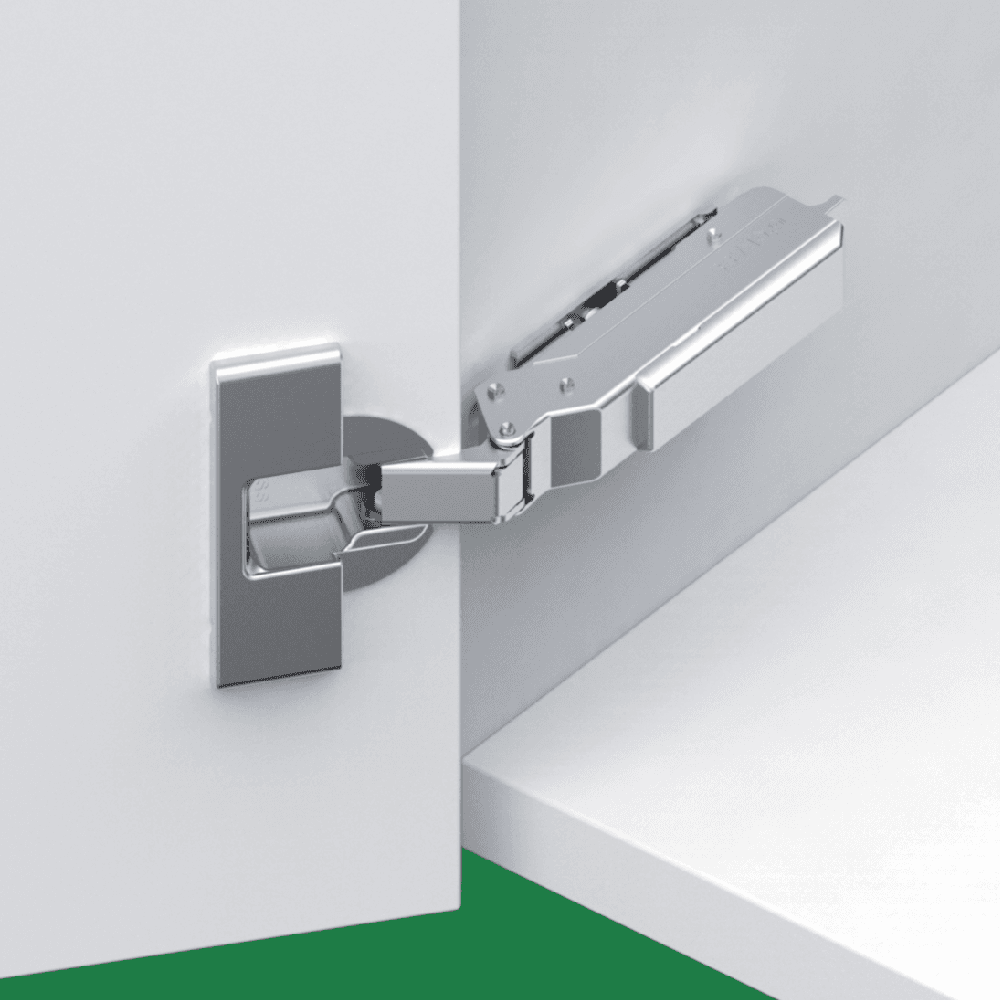

The GRASS Tiomos 110˚ soft-closing hinge is custom made for standard door cabinets. The soft-closing feature is integrated to its arm and can be activated or deactivated using the soft-close damper. This half-overlay hinge is equipped with optimum lever that opens the door effortlessly. The depth of this soft-closing hinge is easily adjustable with a worm gear. The stepless height adjustment feature correctly positions it on the cabinet.
Features:
• For both face-frame and frameless cabinets
• Designed for 24mm overlays
• Toolless damper adjustment
• Stepless height adjustment

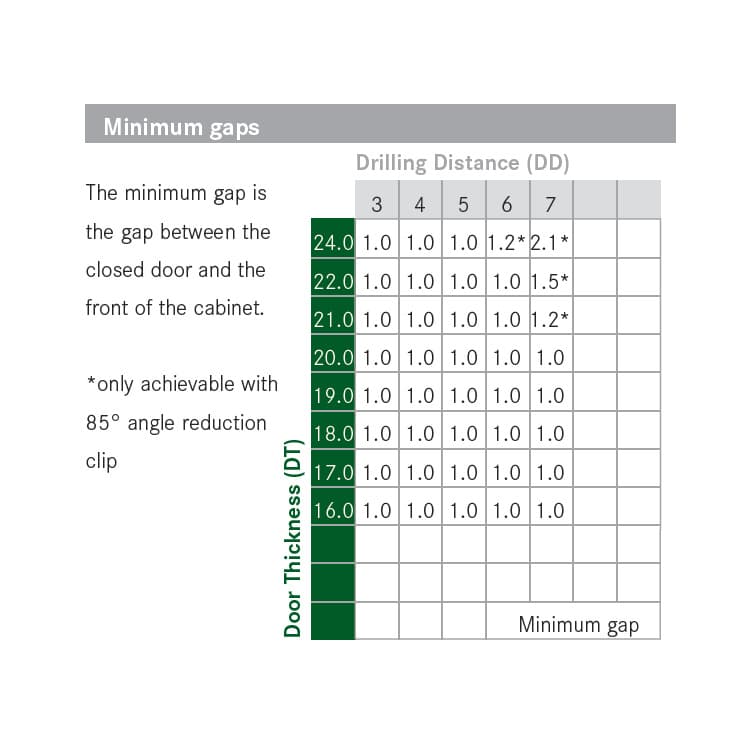

• Ensures minimum gaps and reveals
Features:
• For both face-frame and frameless cabinets
• Designed for 24mm overlays
• Toolless damper adjustment
• Stepless height adjustment
• Ensures minimum gaps and reveals
Specifications
| Box Quantity | 150 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Half Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 42mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.6mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
