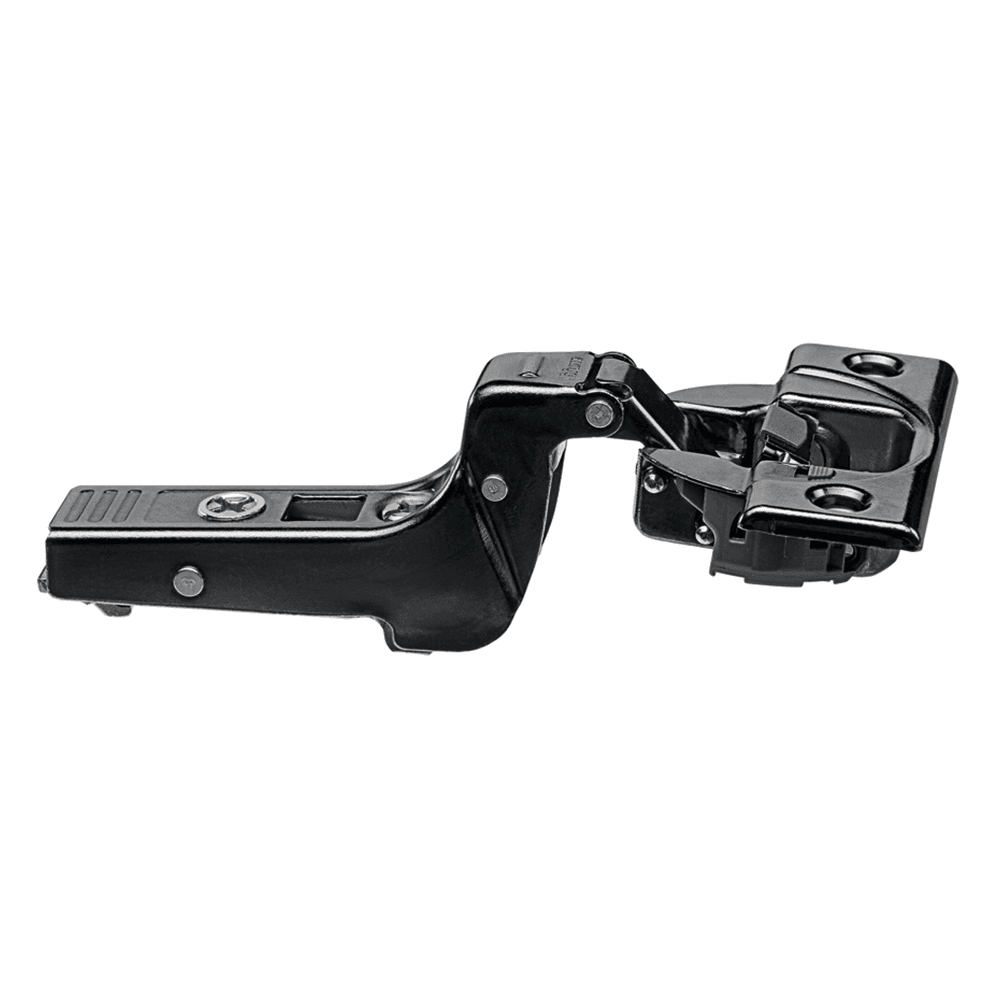

Clip Top 95° Opening Thick Door Hinge, 45mm Bore Pattern, Soft-Closing, Inset, Onyx Black, Screw-On
Item # B71B975-BK
•Mfr # 71B9750
$5.74
/Each
50 items
$5.30/Each
Mounting Type: Screw-On
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• Screw-on mount hinge in onyx black finish • Corrosion protection comparable to standard nickel finish • High quality mounting plates with convenient cam height adjustment • BLUMOTION is integrated into the hinge cup • Deactivation switch for small/light doors • Geometry for door thicknesses up to 26mm (1") • Boring distance range: 3mm to 7mm • 45mm boring pattern • Dowel hinges must be inserted with knock-in tool or universal insertion ramPlease be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Mounting Type | Screw-On |
| Overlay | Inset Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 95° |
| Model | |
| Hinge Type | Thick Door Hinge |
| Finish | Onyx Black |

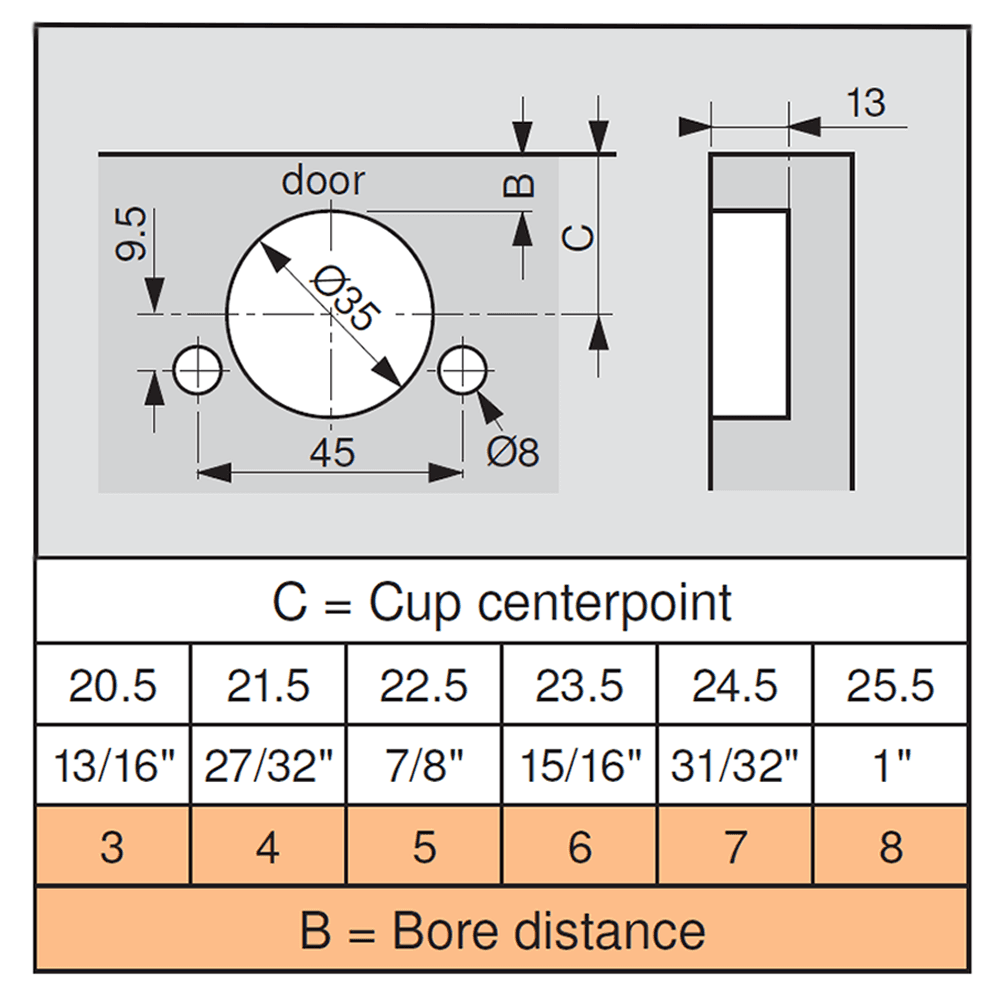

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 13mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
