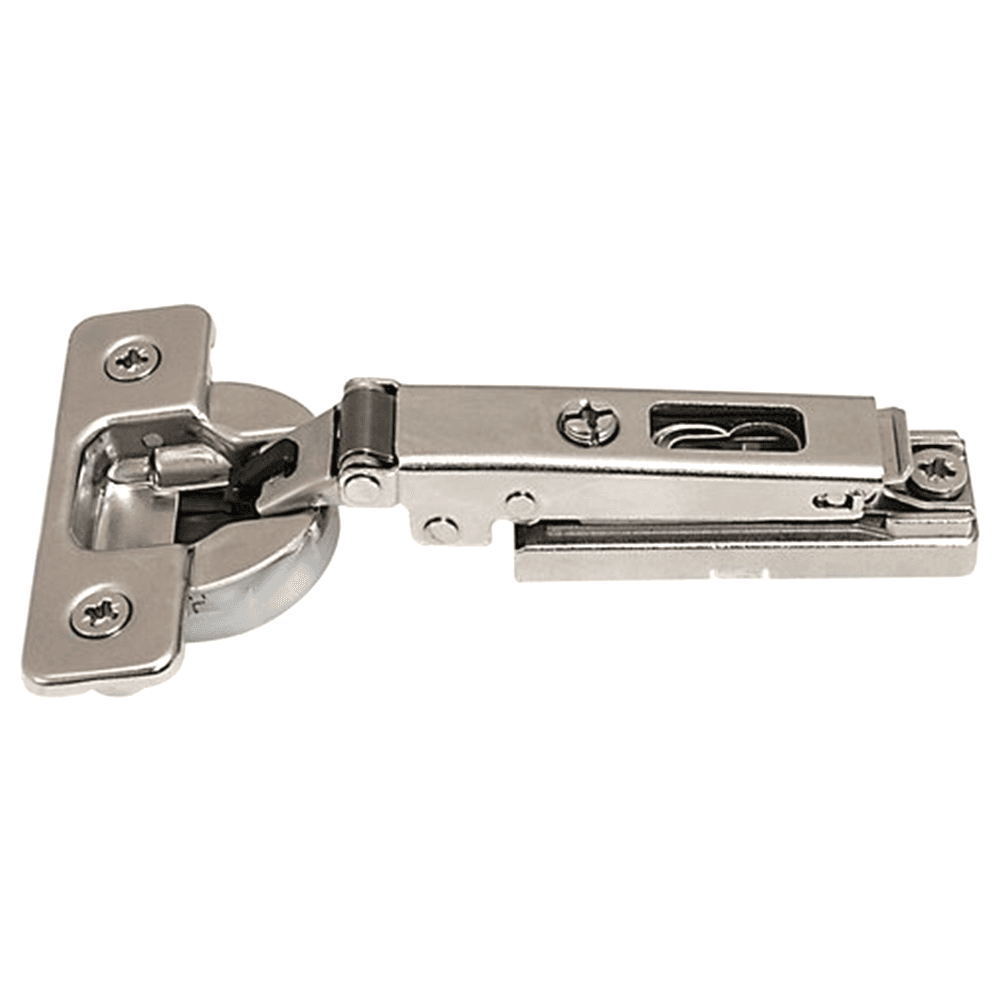

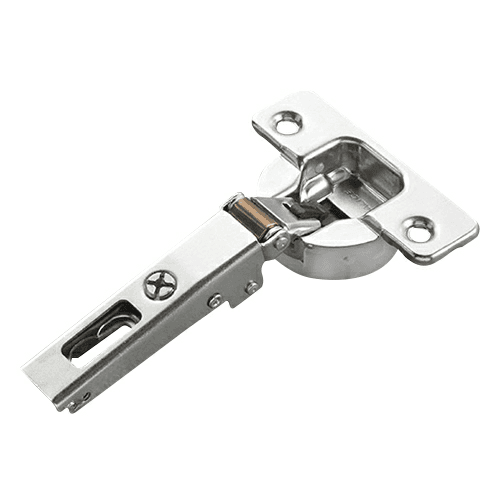

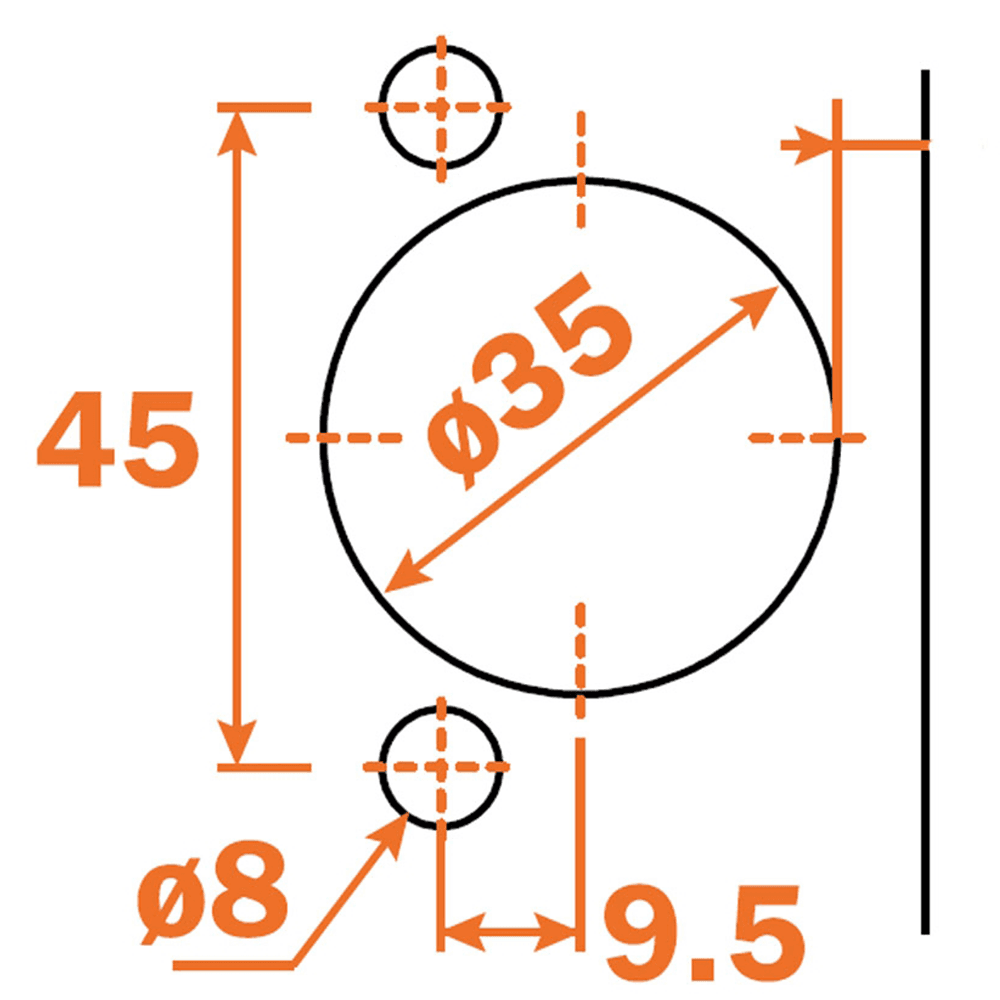

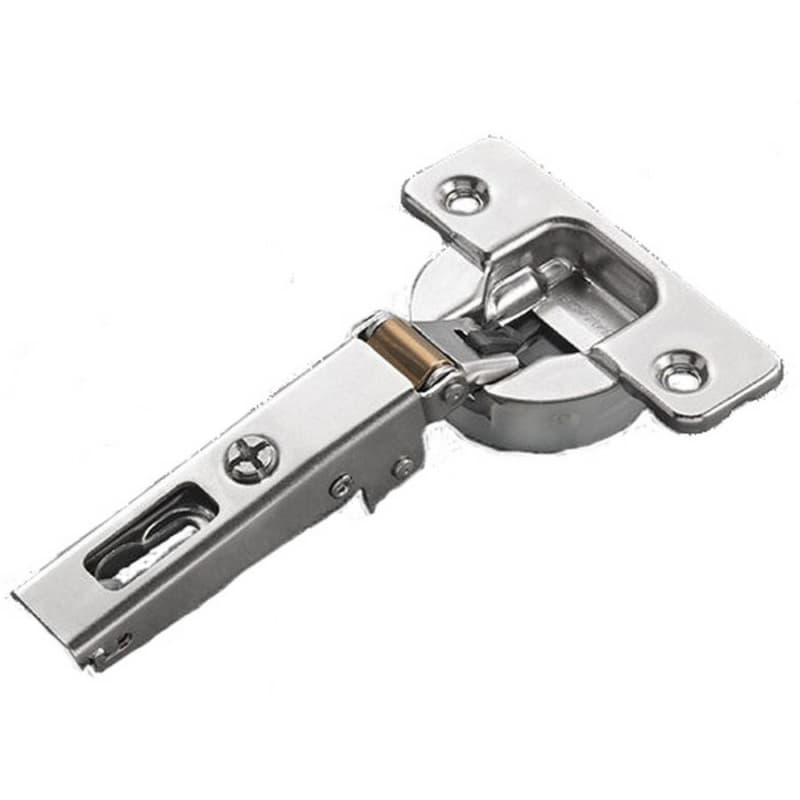

Series 100 105° Opening Hinge, 45mm Bore Pattern, Silentia Soft-Closing, Full Overlay, Nickel-Plated, Logica

Silentia+ allows a perfect and constant closing of the door in any condition, use and application.
The innovative soft-close technology guarantees excellent performances to the complete range of hinges. Silentia+ includes numerous technological elements in the required spaces and maintains the aesthetics of the hinges of the first generation.

Features:
• Compensated side adjustment from -1.5 mm to +4.5 mm.
• Height adjustment ?2 mm.
• Depth adjustment with Series 200 mounting plates +2.8 mm.
• Depth adjustment with Domi snap-on mounting plates from -0.5 mm to +2.8 mm.
• Anti-sliding safety stop
• Symmetrical and asymmetrical bright nickel plated steel or die-cast
• Series 200 mounting plates.
• Snap-on assembly on Domi mounting plates.
• Positioning with pre-determined stop on traditional Series 200mounting plates.
• Use POZIDRIVE No. 2 screwdrivers for all screws
