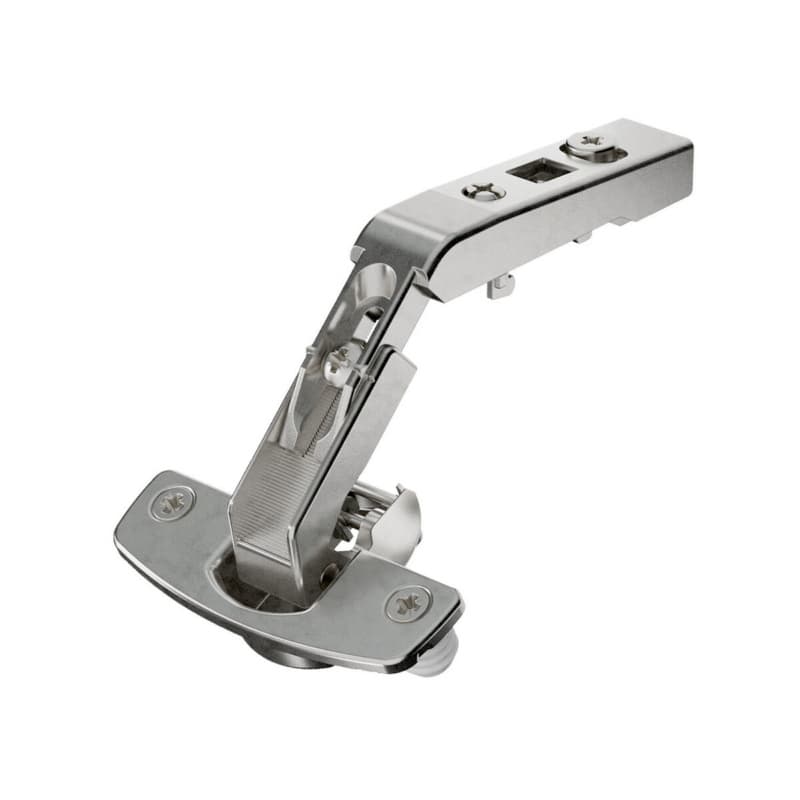

Intermat 50°/65° Opening Hinge, 45mm Bore Pattern, Overlay, Nickel-Plated, Dowelled
Item # HET909011601
•Mfr # 9090116
$7.81
/Each
50 items
$7.14/Each
Min Order: 1
Qty mult. by: 1
Product Details
Features:
• Dowelled mount
• Intermat hinge in Nickel-Plated finish
• Hinge for corner cabinet folding doors
• Without self closing feature (Intermat 9930)
• Quality classification under EN 15570, Level 2
• Opening angle 50?/65?
• For door thickness 15mm - 21mm
• Door mounting option overlay

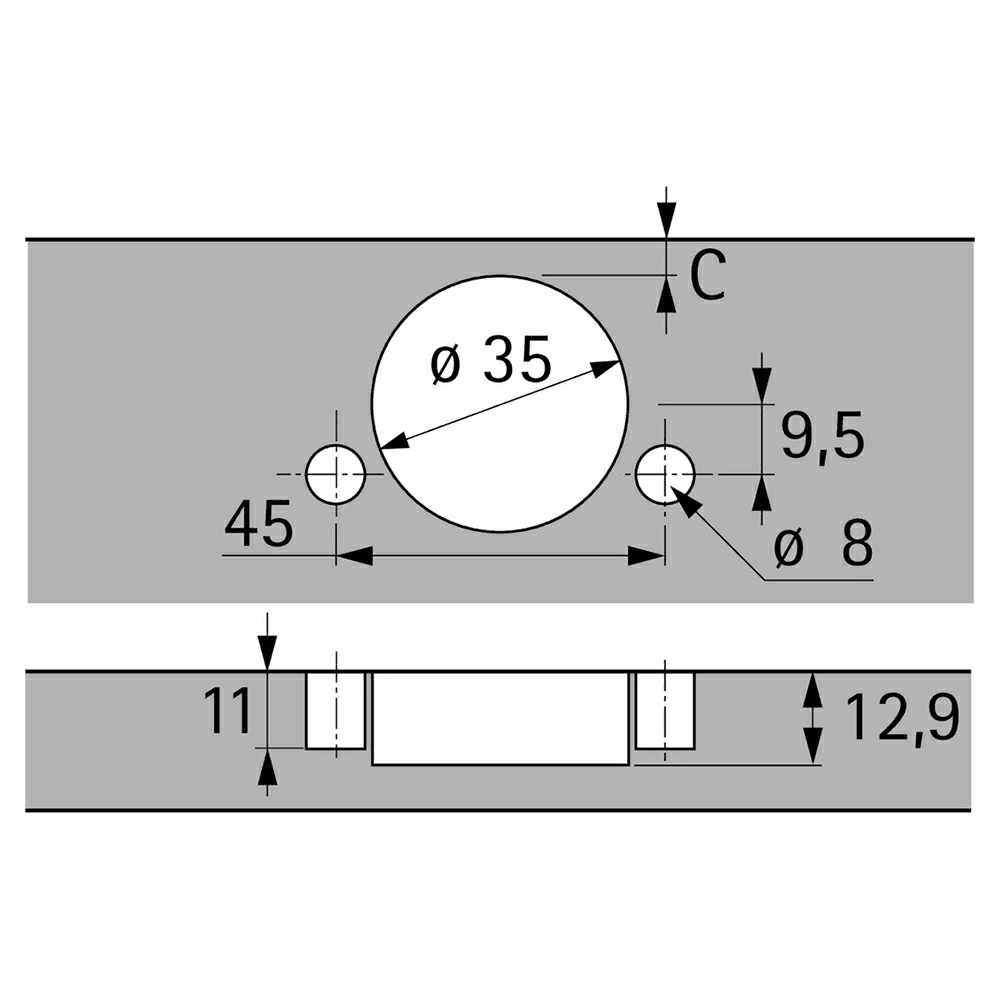

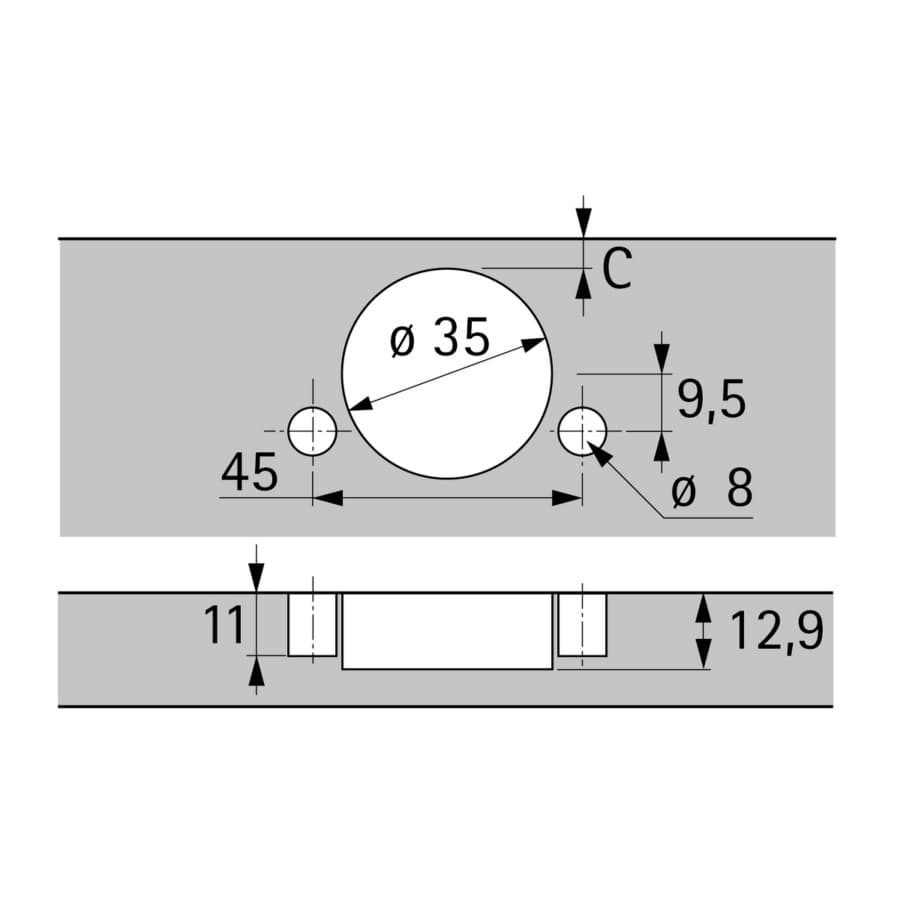

• Drilling pattern TB 45 x 9,5 mm
• Integrated diagonal adjustment +9.5 mm / -9.5 mm
• Integrated overlay adjustment, see sketch
• Integrated depth adjustment, see sketch
• Height adjustment at mounting plate
• Dowelled mount
• Intermat hinge in Nickel-Plated finish
• Hinge for corner cabinet folding doors
• Without self closing feature (Intermat 9930)
• Quality classification under EN 15570, Level 2
• Opening angle 50?/65?
• For door thickness 15mm - 21mm
• Door mounting option overlay
• Drilling pattern TB 45 x 9,5 mm
• Integrated diagonal adjustment +9.5 mm / -9.5 mm
• Integrated overlay adjustment, see sketch
• Integrated depth adjustment, see sketch
• Height adjustment at mounting plate
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 50 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Overlay |
| Closing Type | |
| Opening Angle | 50°/65° |
| Model | |
| Hinge Type | Intermat Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.8mm |
| Material | Steel/Die-Cast Zinc |
| Cabinet Type |
