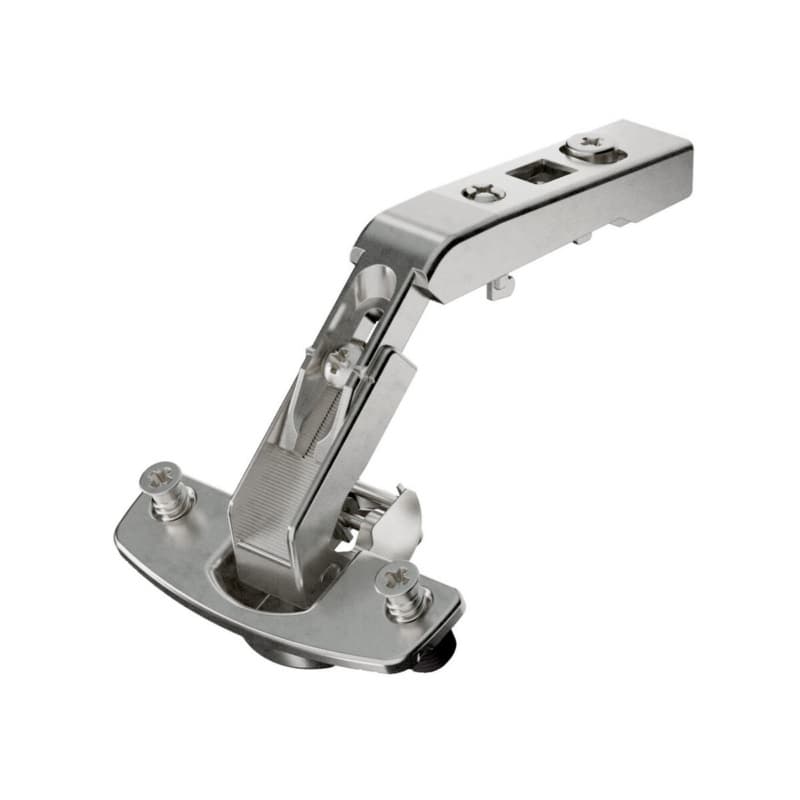

Intermat 9930 50°/65° Opening Hinge for Corner Cabinet Folding Door, 45mm Bore Pattern, Overlay, Nickel-Plated, Expando
50 items
Mounting Type: Expanding Dowels
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
Product Details
• Expando mounting hinge
• Hinge for corner cabinet folding doors
• Without self closing feature (Intermat 9930)
• Quality classification under EN 15570, Level 2
• For door thickness 15mm - 21mm
• Door mounting option overlay
• Installation with expanding sockets
• Integrated diagonal adjustment +9.5mm / -9.5mm

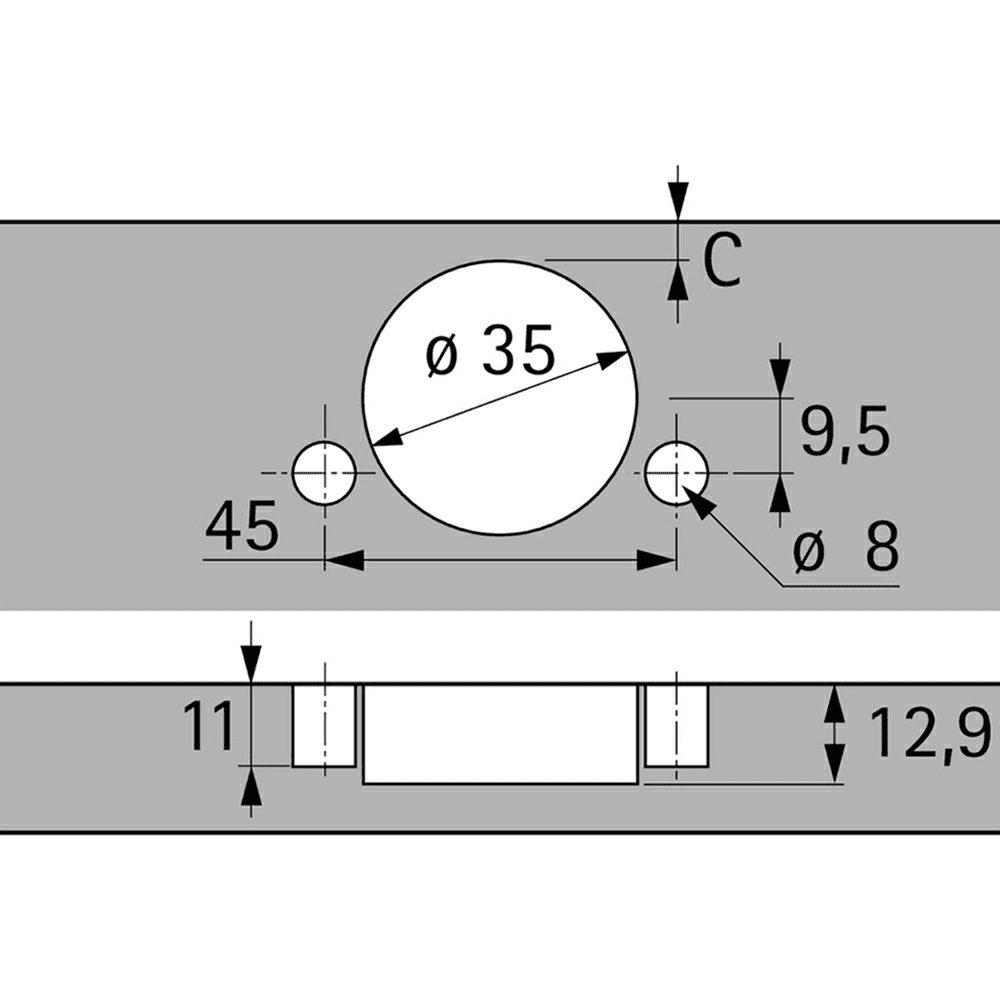

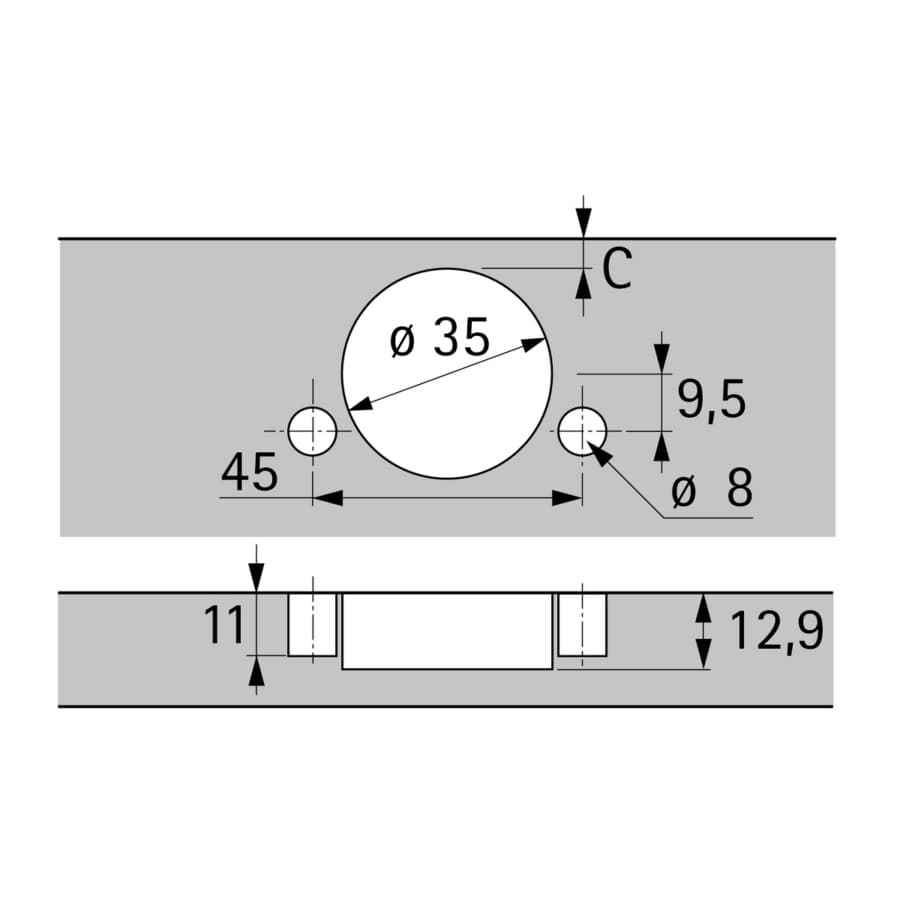

• Integrated overlay adjustment, see sketch
• Integrated depth adjustment, see sketch
• Height adjustment at mounting plate
This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Mounting Type | Expanding Dowels |
| Overlay | Overlay |
| Closing Type | |
| Opening Angle | 50°/65° |
| Model | |
| Hinge Type | Intermat Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.8mm |
| Material | Steel |
| Cabinet Type |
