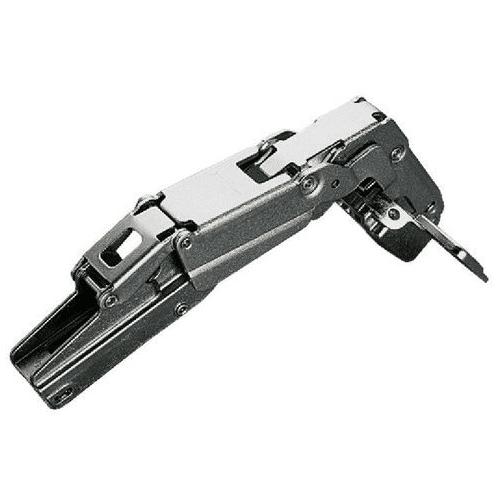

Series 200 165° Opening Push Hinge, 45mm Bore Pattern, Self-Closing, Half Overlay, Nickel-Plated, Screw-On
Item # SALC2PSG99
•Mfr # C2PSG99
$7.92
/Each
50 items
$7.29/Each
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• Screw-On mounting type
• Push to open hinge in Nickel-Plated finish
• Salice Series 200 "self-opening/push to open" hinge is a hinge that contains a special "reverse" spring which enables the door to open automatically once a small amount of pressure is applied to the door
• The pressure to the door activates a release device at which point the hinge takes over and opens the door completely
• The release device serves to hold the door in the closed position as well as to release the door
• 200 Series 165 degree(s) push to open hinges have: Cup depths of only 11mm making the hinge compatible with most cabinet door profiles
• Hinge cup edge drilling distance of 3mm to 9mm
• Patented parallel side-to-side adjustment of +4.5mm to -1.5mm via hinge arm screw
• Available in "Screw-on" with two #6 x 5/8" screws (not included) and press-in dowel cup fastening designs
• Series 200 hinges are designed to work with Salice mounting plates
• Screw-On mounting type
• Push to open hinge in Nickel-Plated finish
• Salice Series 200 "self-opening/push to open" hinge is a hinge that contains a special "reverse" spring which enables the door to open automatically once a small amount of pressure is applied to the door
• The pressure to the door activates a release device at which point the hinge takes over and opens the door completely
• The release device serves to hold the door in the closed position as well as to release the door
• 200 Series 165 degree(s) push to open hinges have: Cup depths of only 11mm making the hinge compatible with most cabinet door profiles
• Hinge cup edge drilling distance of 3mm to 9mm
• Patented parallel side-to-side adjustment of +4.5mm to -1.5mm via hinge arm screw
• Available in "Screw-on" with two #6 x 5/8" screws (not included) and press-in dowel cup fastening designs
• Series 200 hinges are designed to work with Salice mounting plates
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Mounting Type | Screw-On |
| Overlay | Half Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 165° |
| Model | |
| Hinge Type | Push to Open Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel/Die-Cast Zinc |
| Cabinet Type | Face Frame/Frameless |
Item # SALC2PSG99
•Mfr # C2PSG99
$7.92
/Each
50 items
$7.29/Each
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• Screw-On mounting type
• Push to open hinge in Nickel-Plated finish
• Salice Series 200 "self-opening/push to open" hinge is a hinge that contains a special "reverse" spring which enables the door to open automatically once a small amount of pressure is applied to the door
• The pressure to the door activates a release device at which point the hinge takes over and opens the door completely
• The release device serves to hold the door in the closed position as well as to release the door
• 200 Series 165 degree(s) push to open hinges have: Cup depths of only 11mm making the hinge compatible with most cabinet door profiles
• Hinge cup edge drilling distance of 3mm to 9mm
• Patented parallel side-to-side adjustment of +4.5mm to -1.5mm via hinge arm screw
• Available in "Screw-on" with two #6 x 5/8" screws (not included) and press-in dowel cup fastening designs
• Series 200 hinges are designed to work with Salice mounting plates
• Screw-On mounting type
• Push to open hinge in Nickel-Plated finish
• Salice Series 200 "self-opening/push to open" hinge is a hinge that contains a special "reverse" spring which enables the door to open automatically once a small amount of pressure is applied to the door
• The pressure to the door activates a release device at which point the hinge takes over and opens the door completely
• The release device serves to hold the door in the closed position as well as to release the door
• 200 Series 165 degree(s) push to open hinges have: Cup depths of only 11mm making the hinge compatible with most cabinet door profiles
• Hinge cup edge drilling distance of 3mm to 9mm
• Patented parallel side-to-side adjustment of +4.5mm to -1.5mm via hinge arm screw
• Available in "Screw-on" with two #6 x 5/8" screws (not included) and press-in dowel cup fastening designs
• Series 200 hinges are designed to work with Salice mounting plates
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Mounting Type | Screw-On |
| Overlay | Half Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 165° |
| Model | |
| Hinge Type | Push to Open Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel/Die-Cast Zinc |
| Cabinet Type | Face Frame/Frameless |
