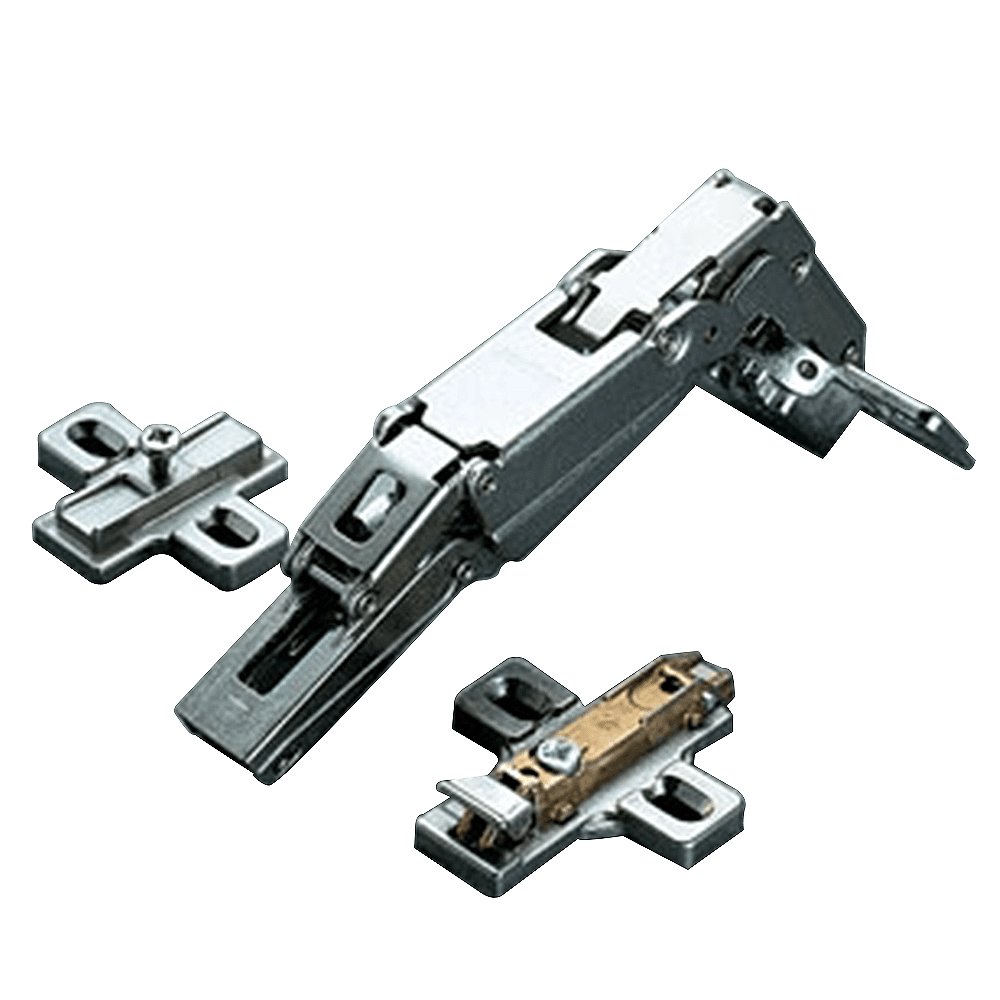

Push Series 200 165° Opening Hinge, 45mm Bore Pattern, Self-Closing, Inset, Nickel-Plated, Dowelled
Item # SALC2RSP99
•Mfr # C2RSP99
Product Details
Features:
• Dowel cup mount
• Inset
• 11mm deep die-cast cup
• Adjustable, self-opening hinges incorporate a reverse spring action which causes the door to swing fully open when light pressure is applied to the face of the door
• When the door is closed, it is held in position by a hook shaped catch which functions like a touch latch
• No finger pulls, back levels or decorative hardware are ever required resulting in a very clean look to the cabinet
• Compatible with all traditional Series 200 mounting plates and with all Domer snap-on mounting plates
• Compensating side adjustment from -0.5mm to +5.5mm
• Height adjustment +/- 2mm
• Depth adjustment with Series 200 mounting plates +/-2.8mm
• Depth adjustment with Domer snap-on mounting plates from -0.5mm to +2.8mm
• Anti-sliding safety stop
• Dowel cup mount
• Inset
• 11mm deep die-cast cup
• Adjustable, self-opening hinges incorporate a reverse spring action which causes the door to swing fully open when light pressure is applied to the face of the door
• When the door is closed, it is held in position by a hook shaped catch which functions like a touch latch
• No finger pulls, back levels or decorative hardware are ever required resulting in a very clean look to the cabinet
• Compatible with all traditional Series 200 mounting plates and with all Domer snap-on mounting plates
• Compensating side adjustment from -0.5mm to +5.5mm
• Height adjustment +/- 2mm
• Depth adjustment with Series 200 mounting plates +/-2.8mm
• Depth adjustment with Domer snap-on mounting plates from -0.5mm to +2.8mm
• Anti-sliding safety stop
Specifications
| Mounting Type | Dowelled |
| Overlay | Inset Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 165° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
