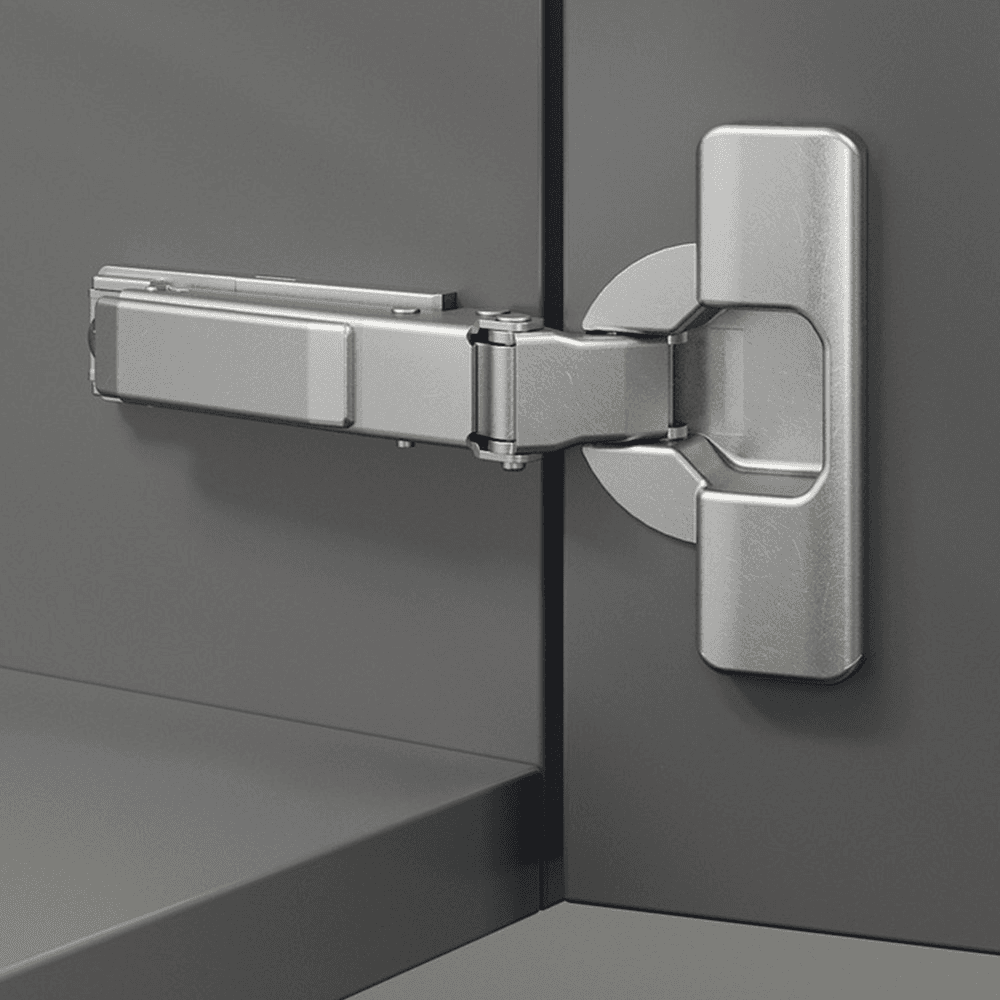

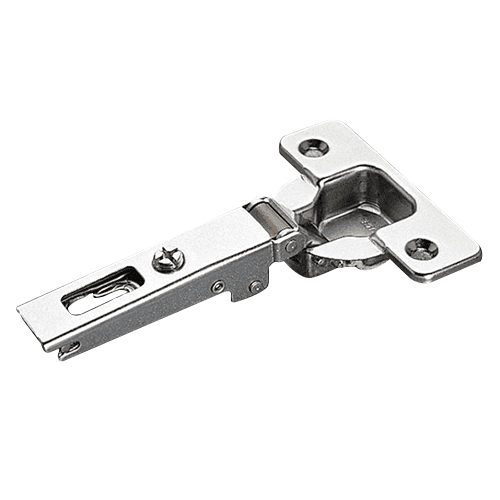

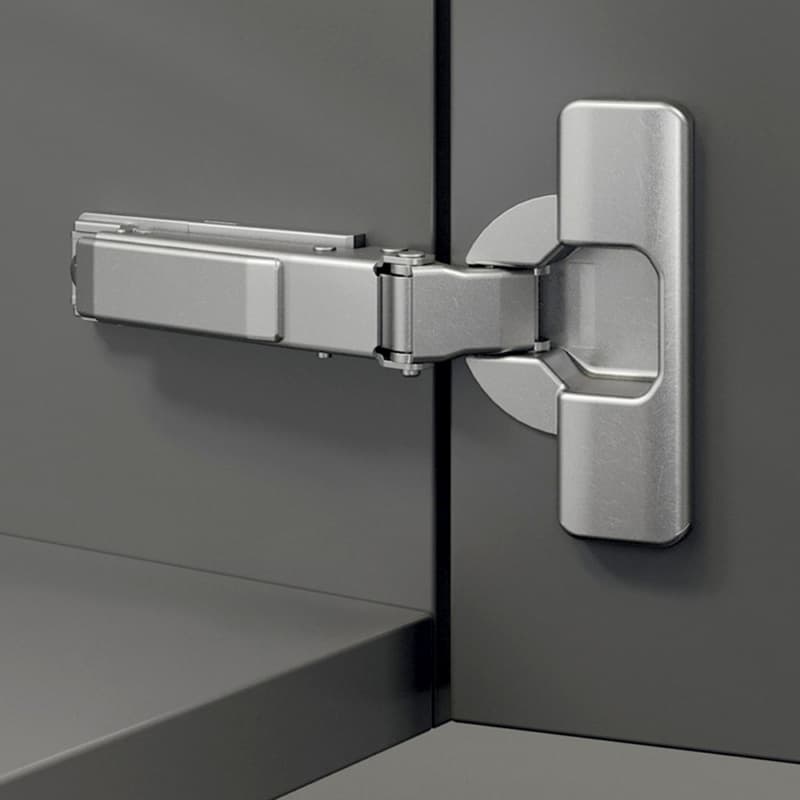

Push Series 200 110° Opening Hinge, 45mm Bore Pattern, Self-Closing, Full Overlay, Nickel-Plated, Dowelled
Item # SALC2RPA99
•Mfr # C2RPA99
$3.76
/Each
300 items
$3.49/Each
Mounting Type: Dowelled
Min Order: 1
Qty mult. by: 1
Product Details
It is a self-opening system for the doors of all types of handleless furniture. It consists of a series of self-opening hinges, release devices that can be fitted to the top, base or side panel of the cabinet, and retaining catches to be fitted to the back of the door.
Features:
• The retaining catches can be pressure-fixed or screw-fixed.
• When a greater opening angle is required.
• Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.
• Compensating side adjustment from - 1.5 to + 4.5 mm.
• Height adjustment ? 2 mm.
• Depth adjustment with Series 200 mounting plates + 2.8 mm.
• Depth adjustment with Domi snap-on mounting plates from - 0.5 mm to + 2.8 mm.
• Anti-sliding safety stop.
• Series 200 mounting plates.
• Snap-on assembly on Domi mounting plates .
• Positioning with pre-determined stop on traditional Series 200 mounting plates.
• Use POZIDRIVE No. 2 screwdrivers for all screws.
Features:
• The retaining catches can be pressure-fixed or screw-fixed.
• When a greater opening angle is required.
• Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.
• Compensating side adjustment from - 1.5 to + 4.5 mm.
• Height adjustment ? 2 mm.
• Depth adjustment with Series 200 mounting plates + 2.8 mm.
• Depth adjustment with Domi snap-on mounting plates from - 0.5 mm to + 2.8 mm.
• Anti-sliding safety stop.
• Series 200 mounting plates.
• Snap-on assembly on Domi mounting plates .
• Positioning with pre-determined stop on traditional Series 200 mounting plates.
• Use POZIDRIVE No. 2 screwdrivers for all screws.
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
