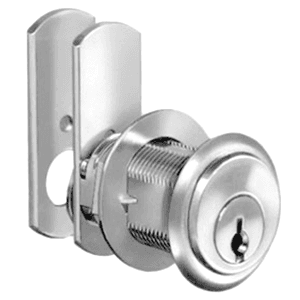

8106 Pin Tumbler Cylinder Cam Lock for Lipped/Overlay Application, Satin Brass, Keyed to KA915 Key
Item # NC8106-915-4
•Mfr # C8106-915-4
$30.89
/Each
10 items
$28.54/Each
50 items
$26.18/Each
Keyed As: KA915 Key
Finish: Satin Brass
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• For drawers, right or left hand doors
• Requires 3/4" diameter hole
• Use N8109 for lipped or overlay construction, the other locks for flush application
• For overlay application, the combined thickness of front and frame cannot exceed the cylinder length
• 90˚ cam turn, key removable in both locked and unlocked positions
• Supplied with two keys, trim, washer, spur washer for wood, mounting nut and two cams for both applications
• Specific cams to be used with N8102 lock are available for overlay construction using 3/4" thick front and 3/4" thick frame
• For drawers, right or left hand doors
• Requires 3/4" diameter hole
• Use N8109 for lipped or overlay construction, the other locks for flush application
• For overlay application, the combined thickness of front and frame cannot exceed the cylinder length
• 90˚ cam turn, key removable in both locked and unlocked positions
• Supplied with two keys, trim, washer, spur washer for wood, mounting nut and two cams for both applications
• Specific cams to be used with N8102 lock are available for overlay construction using 3/4" thick front and 3/4" thick frame
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Keyed As | KA915 Key |
| Finish | Satin Brass |
| Product Type | Cylinder Cam Lock |
| Width | |
| Height | |
| Cam Length | |
| Depth | |
| Material | Steel |
| Mounting Type | |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | 3/4" |
| Certifications | |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | |
| Tumbler Type | Pin Tumbler |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
