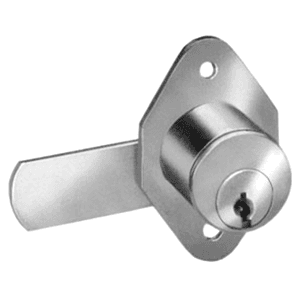

8183 Pin Tumbler Cylinder Cam Lock for Lipped/Overlay Application, Dull Chrome, Keyed to KA103 Key
Item # NC8183-103-26D
•Mfr # C8183-103-26D
$34.78
/Each
10 items
$29.17/Each
50 items
$28.04/Each
Keyed As: KA103 Key
Min Order: 1
Qty mult. by: 1
Product Details
This lock's "Advantage Plus" re-keyable lock is fastened into place with two screws for easy installation.
Features:
• Re-keying or servicing is accomplished by removing the cam retaining screws and cam
• Use a 5/64" Allen wrench to remove the plug cylinder assembly
• The mounting plate remains installed on the cabinet
• Re-key as required and reinstall cylinder plug assembly on mounting plate
• For drawers and R.H. or L.H. doors
• Flush mounted
• Requires a 7/8" diameter hole for cylinder
• 90˚ cam turn, key removable in both locked and unlocked positions
• Supplied with two keys, extra backplate, two cams and two mounting screws
Features:
• Re-keying or servicing is accomplished by removing the cam retaining screws and cam
• Use a 5/64" Allen wrench to remove the plug cylinder assembly
• The mounting plate remains installed on the cabinet
• Re-key as required and reinstall cylinder plug assembly on mounting plate
• For drawers and R.H. or L.H. doors
• Flush mounted
• Requires a 7/8" diameter hole for cylinder
• 90˚ cam turn, key removable in both locked and unlocked positions
• Supplied with two keys, extra backplate, two cams and two mounting screws
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 1 |
| Keyed As | KA103 Key |
| Finish | Dull Chrome |
| Product Type | Cylinder Cam Lock |
| Width | 2" |
| Height | 1-17/64" |
| Cam Length | |
| Depth | |
| Material | Steel |
| Mounting Type | |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | 57/64" |
| Certifications | |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | |
| Tumbler Type | Pin Tumbler |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
