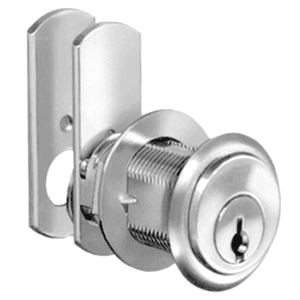

8108 Pin Tumbler Cylinder Cam Lock for Lipped/Overlay Application, Dull Chrome, Keyed to KA107 Key
Item # NC8108-107-26D
•Mfr # C8108-107-26D
$30.23
/Each
10 items
$27.98/Each
50 items
$25.70/Each
Keyed As: KA107 Key
Finish: Dull Chrome
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• For drawers, right or left hand doors
• Requires 3/4" diameter hole
• Use N8109 for lipped or overlay construction, the other locks for flush application
• For overlay application, the combined thickness of front and frame cannot exceed the cylinder length
• 90˚ cam turn, key removable in both locked and unlocked positions
• Supplied with two keys, trim, washer, spur washer for wood, mounting nut and two cams for both applications
• Specific cams to be used with N8102 lock are available for overlay construction using 3/4" thick front and 3/4" thick frame
• For drawers, right or left hand doors
• Requires 3/4" diameter hole
• Use N8109 for lipped or overlay construction, the other locks for flush application
• For overlay application, the combined thickness of front and frame cannot exceed the cylinder length
• 90˚ cam turn, key removable in both locked and unlocked positions
• Supplied with two keys, trim, washer, spur washer for wood, mounting nut and two cams for both applications
• Specific cams to be used with N8102 lock are available for overlay construction using 3/4" thick front and 3/4" thick frame
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Keyed As | KA107 Key |
| Finish | Dull Chrome |
| Product Type | Cylinder Cam Lock |
| Width | |
| Height | |
| Cam Length | |
| Depth | |
| Material | Steel |
| Mounting Type | |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | 3/4" |
| Certifications | |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | |
| Tumbler Type | Pin Tumbler |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
