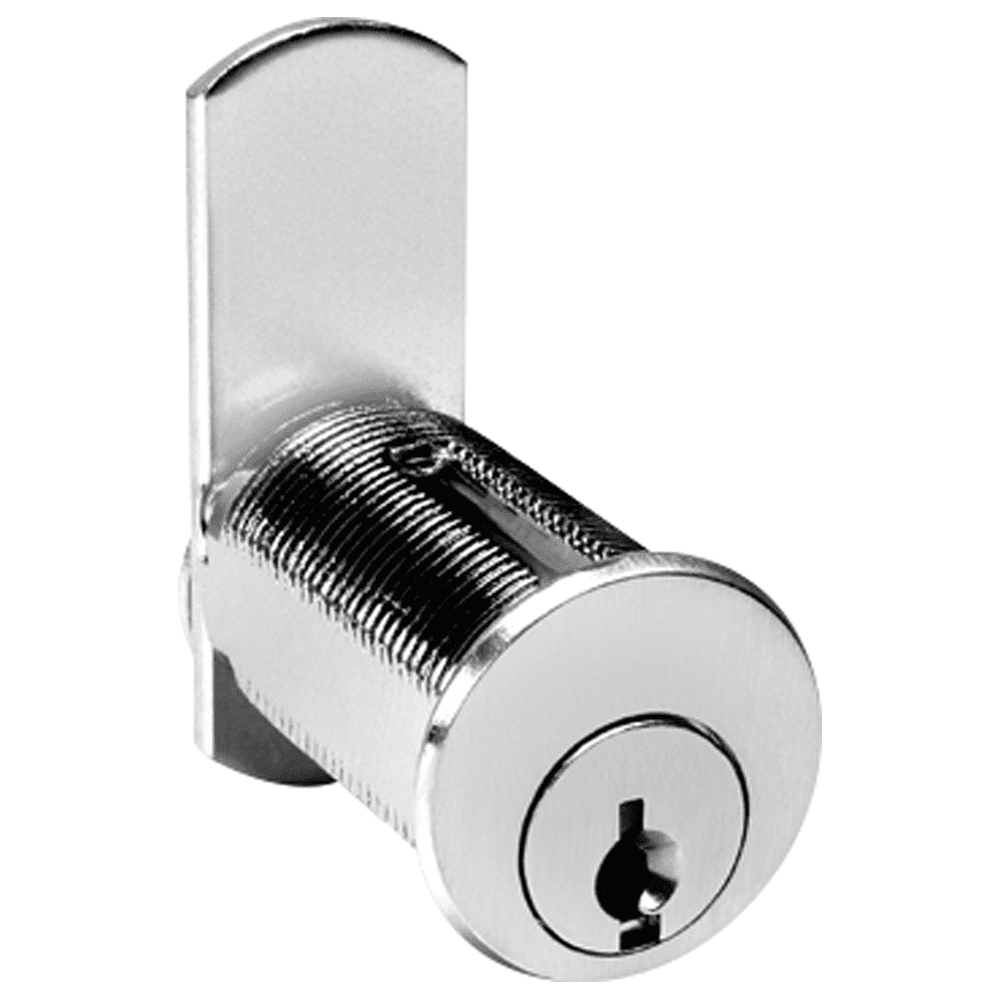

8109 Pin Tumbler Cylinder Cam Lock for Lipped/Overlay Application, Dull Chrome, Keyed to KA107 Key
Item # NC8109-107-26D
•Mfr # C8109-107-26D
$30.23
/Each
10 items
$27.98/Each
50 items
$25.70/Each
Keyed As: KA107 Key
Finish: Dull Chrome
Min Order: 1
Quantity Multiple by: 1
Product Details
Application:
• For drawer, R.H. or L.H. doors. C8109 is for lipped or overlay construction
Operation:
• 90˚ cam turn, key removable in both locked and unlocked positions
Packaging:
• Supplied with two keys, trim washer, spur washer for wood, mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately.
Through the use of a shifter, the 360˚ key turn turns the cam 90˚ in either direction. Actual application determines which cam position is the locked position. Each lock is furnished with an alternate cam for opposite cam turn.
• For drawer, R.H. or L.H. doors. C8109 is for lipped or overlay construction
Operation:
• 90˚ cam turn, key removable in both locked and unlocked positions
Packaging:
• Supplied with two keys, trim washer, spur washer for wood, mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately.
Through the use of a shifter, the 360˚ key turn turns the cam 90˚ in either direction. Actual application determines which cam position is the locked position. Each lock is furnished with an alternate cam for opposite cam turn.
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Keyed As | KA107 Key |
| Finish | Dull Chrome |
| Product Type | Cylinder Cam Lock |
| Width | |
| Height | |
| Cam Length | |
| Depth | |
| Material | Steel |
| Mounting Type | |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | 3/4" |
| Certifications | |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | |
| Tumbler Type | Pin Tumbler |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
