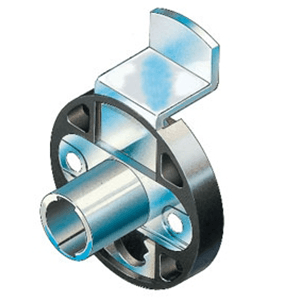

Type 235 Cam Body for Timberline Locks, 1-1/2" Cam Length, Horizontal Mount
Item # TMBCB-235
•Mfr # CB-235
Product Details
Features:
• Horizontal Mount
• Two Styles Available
• REequires 16.5 MM Diameter Hole
• Attractive Tough Nylon Housing
• Mounts In 3/4" Material
• Lock Plug Required
• Horizontal Mount
• Two Styles Available
• REequires 16.5 MM Diameter Hole
• Attractive Tough Nylon Housing
• Mounts In 3/4" Material
• Lock Plug Required
Specifications
| Keyed As | |
| Finish | |
| Product Type | Cylinder Body |
| Width | 1-13/16" |
| Height | |
| Cam Length | |
| Depth | |
| Material | |
| Mounting Type | Horizontal |
| Shape | |
| Bolt Length | 1-1/2" |
| Application | |
| Cylinder Diameter | |
| Certifications | |
| Bolt Throw | 1/2" |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | |
| Tumbler Type | |
| Bolt Set Back | 7/8" |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
