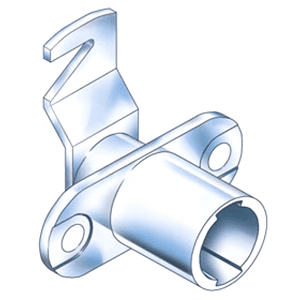

Type 181 Cam Body for Timberline Locks, Horizontal Mount, Flipper/Tambour Lock
Item # TMBCB-181
•Mfr # CB-181
$4.34
/Each
25 items
$3.76/Each
200 items
$3.31/Each
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• Requires SP-181 STRIKE PLATE
• Requires 16.5mm diameter hole
• Mounts in 3/4" material
• Requires SP-181 STRIKE PLATE
• Requires 16.5mm diameter hole
• Mounts in 3/4" material
Specifications
| Keyed As | |
| Finish | |
| Product Type | Cylinder Body |
| Width | 1-21/32" |
| Height | |
| Cam Length | 29/32" |
| Depth | |
| Material | |
| Mounting Type | Horizontal |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | |
| Certifications | |
| Bolt Throw | |
| Cam Rotation | 180 Degree |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | |
| Tumbler Type | |
| Bolt Set Back | |
| Cam Setback | 13/32" |
| Open Bolt Length | |
| Center to Center |
