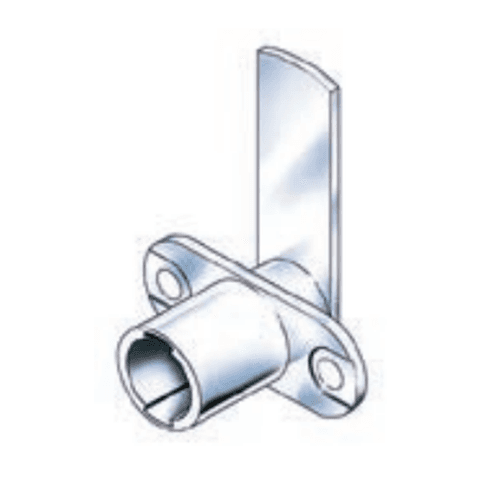

Type 187 Cylinder Body for Timberline Lock, 3/4" Cylinder Length, Horizontal Mount
Item # TMBCB-187
•Mfr # CB-187
Product Details
Features:
• 180ø rotation
• All locks require a 16.5mm diameter bore hole
• Designed to mount in 3/4" thick material with 3/4" long cylinder
• Locks must be installed to lock in a counterclockwise position
• Screws not included
• 1-23/32" cam extension
• 9/32" set back
• 180ø rotation
• All locks require a 16.5mm diameter bore hole
• Designed to mount in 3/4" thick material with 3/4" long cylinder
• Locks must be installed to lock in a counterclockwise position
• Screws not included
• 1-23/32" cam extension
• 9/32" set back
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Keyed As | |
| Finish | |
| Product Type | Cylinder Body |
| Width | |
| Height | |
| Cam Length | 1/23/1932 |
| Depth | |
| Material | |
| Mounting Type | Horizontal |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | |
| Certifications | |
| Bolt Throw | |
| Cam Rotation | 180 Degree |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | |
| Tumbler Type | |
| Bolt Set Back | |
| Cam Setback | Sep-32 |
| Open Bolt Length | |
| Center to Center |
