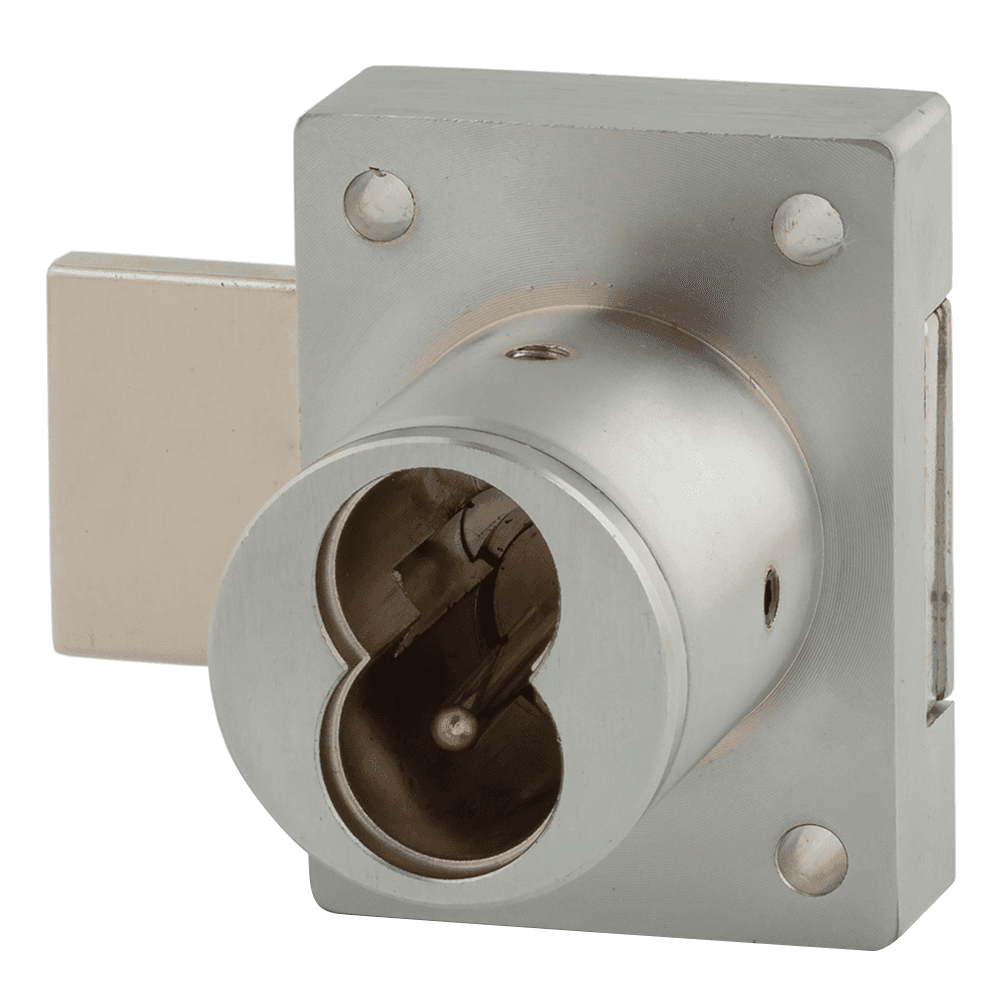

721DR No Core Deadbolt Door Lock Body, Satin Chrome
Finish: Satin Chrome
Product Details
• Deadbolt Door Lock Body is finished in Satin Chrome
• Retrofits: Best 3L
• Reversible: Field reversible between door and drawer functions
• ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07041 (721DW)
• Woodwork Institute: (WI) acknowledged product
• Standard function: Key removable in locked and unlocked position (removable in locked position only, available via direct ship)
• Body: Zinc die cast
Keying Information:
• Cores: Not included
• Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores
• Compatible electronic cylinders: Medico Nexgen XT or VIDEX CyberLock SFIC cylinders
Includes:
For 1-1/4" barrel length locks:
• 725-1 spacer to fit 6 or 7 pin cores
• 725-PA plastic thumb turn
• 10-350 (qty 3) plastic spacers
• 10-054 1/4" plastic bar strike
• 10-057 0.65" plastic bar strike
This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Keyed As | |
| Finish | Satin Chrome |
| Product Type | Deadbolt Door Lock Body |
| Width | |
| Height | |
| Cam Length | |
| Depth | |
| Material | Zinc Die-Cast |
| Mounting Type | |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | 1-1/8" |
| Certifications | ANSI/BHMA Grade 1 E07121/E07041 |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | Yes |
| Tumbler Type | |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
