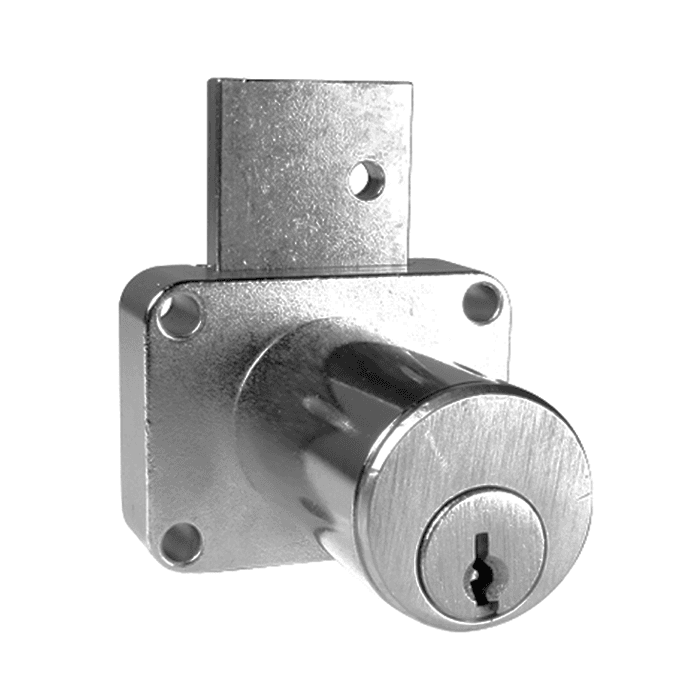

8178 Pin Tumbler Drawer Lock, Satin Chrome, Keyed to C103A Key
Item # NC8178-C103A-26D
•Mfr # C8178KA103-26D
Keyed As:
Finish:
Product Details
The Plus feature allows you to remove the cylinder from the pin tumbler box locks while the lock remains in place. No mounting screws need to be removed. Simply use a 5/64" Allen wrench from the back to remove the cylinder and plug for re-keying.
Features:
• C103A surface mount drawer lock is finished in Satin Chrome
• Surface mounted
• Requires 57/64" diameter hole for cylinder
• Key removable in both locked and unlocked positions
Supplied with two keys, strike and mounting screws.
Black plastic spacer (NC2073) for pin tumbler door and drawer locks available for additional purchase.
Features:
• C103A surface mount drawer lock is finished in Satin Chrome
• Surface mounted
• Requires 57/64" diameter hole for cylinder
• Key removable in both locked and unlocked positions
Supplied with two keys, strike and mounting screws.
Black plastic spacer (NC2073) for pin tumbler door and drawer locks available for additional purchase.
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads

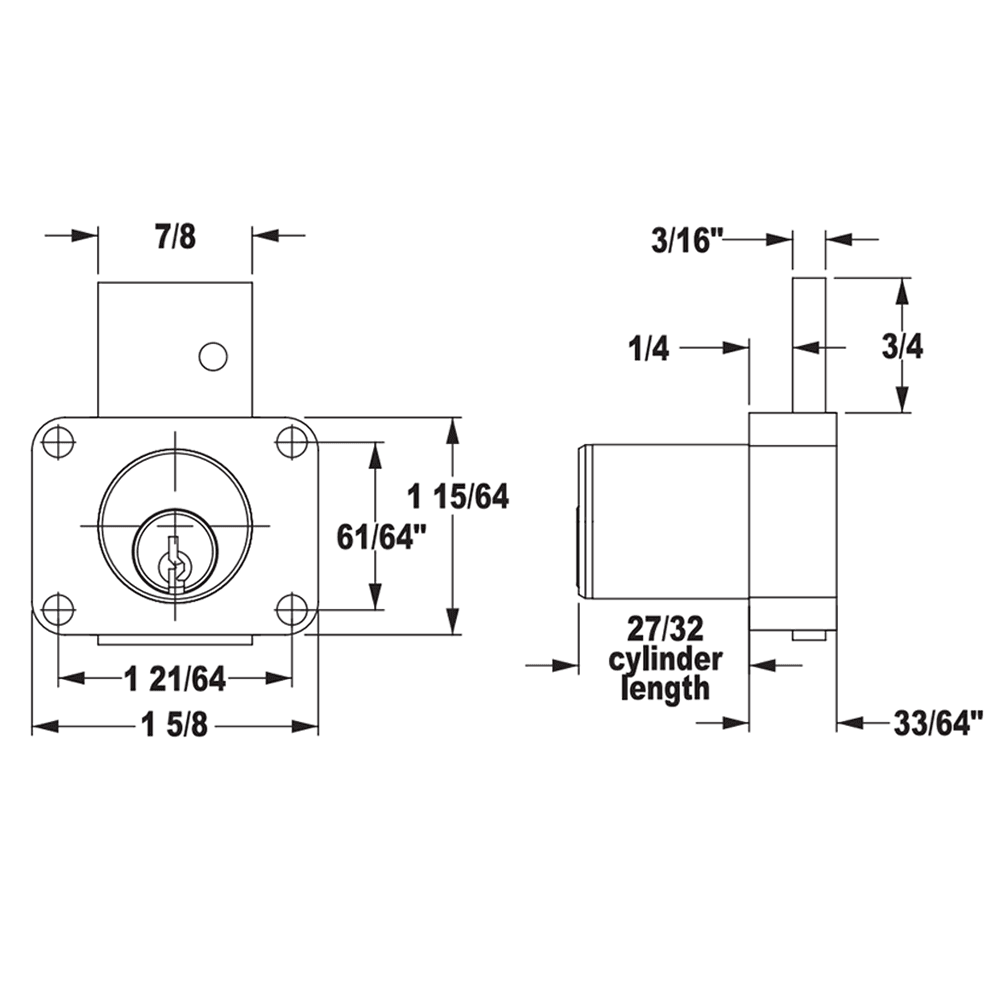

Specifications
| Box Quantity | 1 |
| Keyed As | C103A Key |
| Finish | Satin Chrome |
| Product Type | Drawer Lock |
| Width | 1-5/8" |
| Height | 1-15/64" |
| Depth | 2" |
| Material | Steel |
| Cylinder Diameter | 57/64" |
| Tumbler Type | Pin Tumbler |
