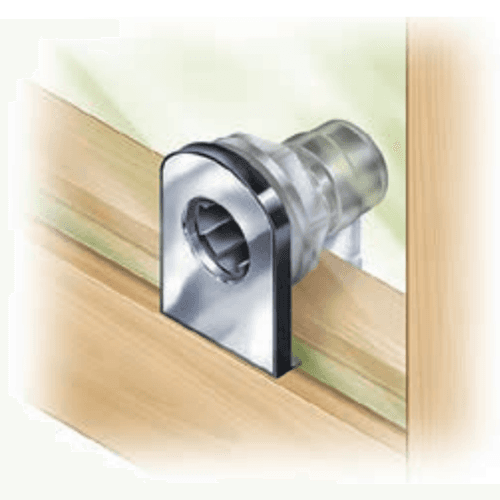

CB-307 Glass Door Lock for Timberline Lock, Vertical Mount
Item # TMBCB-317
•Mfr # CB-317
Product Details
Features:
• Designed for swing style doors
• Fully cushioned lock clamping to avoid glass damage
• Vertical mount styles lock to side or bottom of cabinet, respectively
• Lock has 2 piece design for quick mounting-user does not need to assemble cam
• Vertically mounts in glass doors up to 3/8" thick
• Requires 7/8" diameter hole bored in glass centered 7/8" from edge
• Cam must rotate counter clockwise to lock with an extension of 7/8" and a setback of 15/16"
• Strike plate sold separately
• Finish cap is attached to give finished appearance
• Designed for swing style doors
• Fully cushioned lock clamping to avoid glass damage
• Vertical mount styles lock to side or bottom of cabinet, respectively
• Lock has 2 piece design for quick mounting-user does not need to assemble cam
• Vertically mounts in glass doors up to 3/8" thick
• Requires 7/8" diameter hole bored in glass centered 7/8" from edge
• Cam must rotate counter clockwise to lock with an extension of 7/8" and a setback of 15/16"
• Strike plate sold separately
• Finish cap is attached to give finished appearance
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Finish | Satin Nickel |
| Product Type | Glass Door Lock |
| Width | 1-3/16" |
| Height | 1-5/8" |
| Mounting Type | Vertical |
