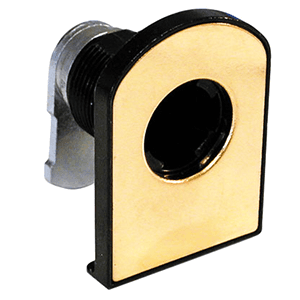

CB-315 Glass Door Lock for Timberline Lock, Vertical Mount
Item # TMBCB-315
•Mfr # CB-315
$18.94
/Each
25 items
$16.39/Each
200 items
$14.45/Each
Min Order: 1
Qty mult. by: 1
Product Details
Features:
• Designed for swing style doors
• Fully cushioned lock clamping to avoid glass damage
• Horizontal and vertical mount styles lock to side or bottom of cabinet, respectively
• Lock has 2 piece design for quick mounting-user does not need to assemble cam

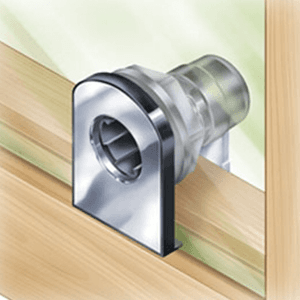

• Vertically mounts in glass doors up to 3/8" thick
• Requires 7/8" diameter hole bored in glass centered 7/8" from edge
• Cam must rotate counter clockwise to lock with an extension of 7/8" and a setback of 15/16"
• Available in three lock finishes
• Strike plate sold separately
• Finish cap is attached to give finished appearance
• Designed for swing style doors
• Fully cushioned lock clamping to avoid glass damage
• Horizontal and vertical mount styles lock to side or bottom of cabinet, respectively
• Lock has 2 piece design for quick mounting-user does not need to assemble cam
• Vertically mounts in glass doors up to 3/8" thick
• Requires 7/8" diameter hole bored in glass centered 7/8" from edge
• Cam must rotate counter clockwise to lock with an extension of 7/8" and a setback of 15/16"
• Available in three lock finishes
• Strike plate sold separately
• Finish cap is attached to give finished appearance
Specifications
| Box Quantity | 1 |
| Keyed As | |
| Finish | Bright Brass |
| Product Type | Glass Door Lock |
| Width | 7/8" |
| Height | 7/8" |
| Cam Length | |
| Depth | |
| Material | |
| Mounting Type | Vertical |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | |
| Certifications | |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | |
| Tumbler Type | |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
