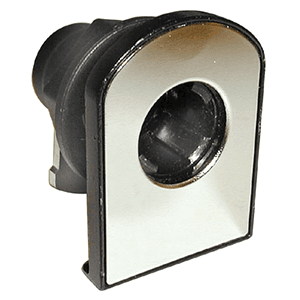

CB-311 Glass Door Lock for Timberline Lock, Vertical Mount
Item # QQTMBCB-311
•Mfr #
Product Details
Features:
• Designed for swing style doors
• Fully cushioned lock clamping to avoid glass damage

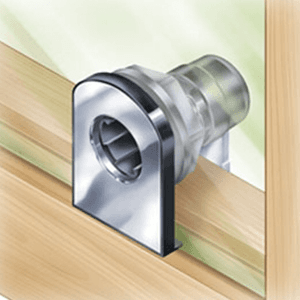

• Horizontal and vertical mount styles lock to side or bottom of cabinet, respectively
• Lock has 2 piece design for quick mounting-user does not need to assemble cam
• Vertically mounts in glass doors up to 3/8" thick
• Requires 7/8" diameter hole bored in glass centered 7/8" from edge
• Cam must rotate counter clockwise to lock with an extension of 7/8" and a setback of 15/16"
• Available in three lock finishes
• Strike plate sold separately
• Finish cap is attached to give finished appearance
• Designed for swing style doors
• Fully cushioned lock clamping to avoid glass damage
• Horizontal and vertical mount styles lock to side or bottom of cabinet, respectively
• Lock has 2 piece design for quick mounting-user does not need to assemble cam
• Vertically mounts in glass doors up to 3/8" thick
• Requires 7/8" diameter hole bored in glass centered 7/8" from edge
• Cam must rotate counter clockwise to lock with an extension of 7/8" and a setback of 15/16"
• Available in three lock finishes
• Strike plate sold separately
• Finish cap is attached to give finished appearance
Specifications
| Box Quantity | 1 |
| Finish | Bright Nickel |
| Product Type | Glass Door Lock |
| Width | 7/8" |
| Height | 7/8" |
| Mounting Type | Vertical |
