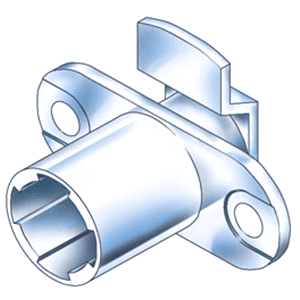

Type 080 Cam Body for Timberline Locks, 13/16" Cam Length, Horizontal Mount
Item # TMBCB-080
•Mfr # CB-080
Product Details
Features:
• Horizontal Mount
• 90ø Rotation
• Requires 16.5 MM Diameter Hole
• Mounts in 3/4" Material
• Lock Plug Required
NOTE: CAM LOCKS MUST BE INSTALLED SO THAT THEY LOCK IN THE COUNTERCLOCKWISE POSITION!
• Horizontal Mount
• 90ø Rotation
• Requires 16.5 MM Diameter Hole
• Mounts in 3/4" Material
• Lock Plug Required
NOTE: CAM LOCKS MUST BE INSTALLED SO THAT THEY LOCK IN THE COUNTERCLOCKWISE POSITION!
Specifications
| Box Quantity | 1 |
| Product Type | Cylinder Body |
| Width | 1-41/64" |
| Height | 5/8" |
| Cam Length | 13/16" |
| Mounting Type | Horizontal |
| Cam Rotation | 90 Degree |
| Cam Setback | 3/32" |
