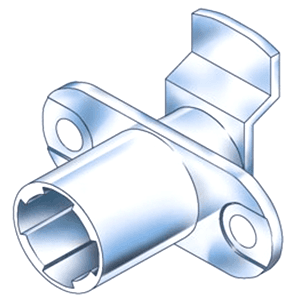

Type 085 Cam Body for Timberline Locks, 13/16" Cam Length, Horizontal Mount
Item # TMBCB-085
•Mfr # CB-085
$4.70
/Each
25 items
$4.06/Each
200 items
$3.58/Each
Min Order: 1
Qty mult. by: 1
Product Details
Features:
• Horizontal Mount
• 90ø Rotation
• Requires 16.5 MM Diameter Hole
• Mounts in 3/4" Material
• Lock Plug Required
NOTE: CAM LOCKS MUST BE INSTALLED SO THAT THEY LOCK IN THE COUNTERCLOCKWISE POSITION!
• Horizontal Mount
• 90ø Rotation
• Requires 16.5 MM Diameter Hole
• Mounts in 3/4" Material
• Lock Plug Required
NOTE: CAM LOCKS MUST BE INSTALLED SO THAT THEY LOCK IN THE COUNTERCLOCKWISE POSITION!
Specifications
| Box Quantity | 1 |
| Keyed As | |
| Finish | |
| Product Type | Cylinder Body |
| Width | 1-41/64" |
| Height | 5/8" |
| Cam Length | 13/16" |
| Depth | |
| Material | |
| Mounting Type | Horizontal |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | |
| Certifications | |
| Bolt Throw | |
| Cam Rotation | 90 Degree |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | |
| Tumbler Type | |
| Bolt Set Back | |

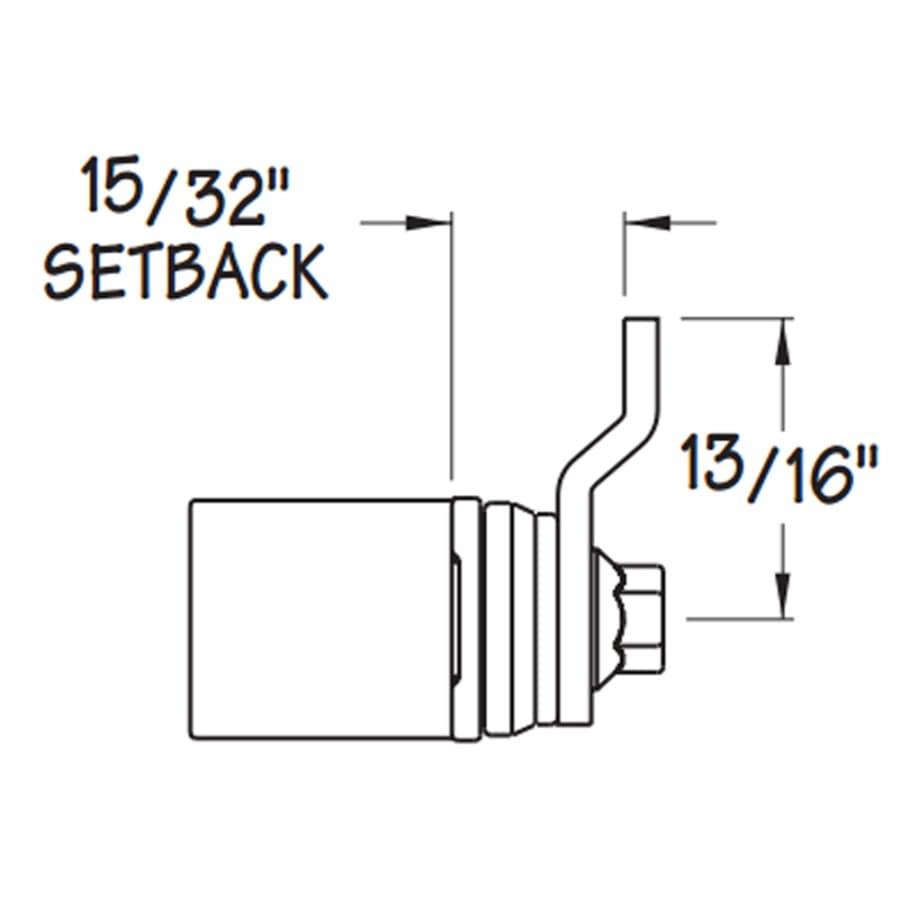

| Cam Setback | 15/32" |
| Open Bolt Length | |
| Center to Center |
