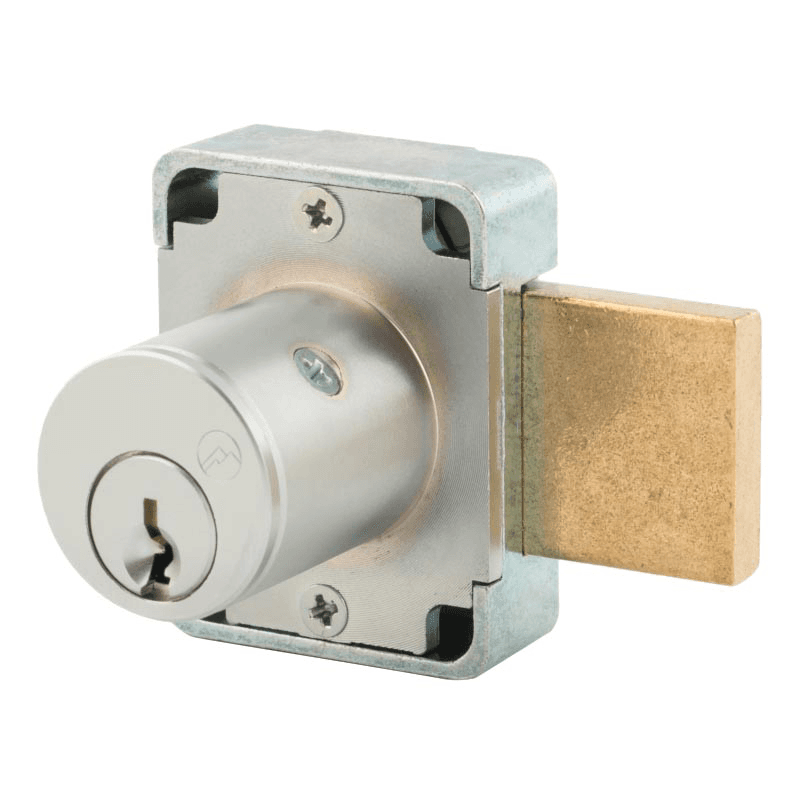

N Series Pin Tumbler Deadbolt Door Lock, Satin Chrome, Keyed to KA101 Key
25 items
Keyed As: KA101 Key
Finish: Satin Chrome
Product Details
• Keyed to KA101
• Deadbolt door lock in Satin Chrome finish
• Keying: Can be keyed together with other N Series locks
• Rekeyable: Easily rekeyable via set screw cylinder release mechanism
• ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121(100DR)
• Standard function: Key removable in locked or unlocked position. Standard function locks are non-handed
• Body: Zinc die cast

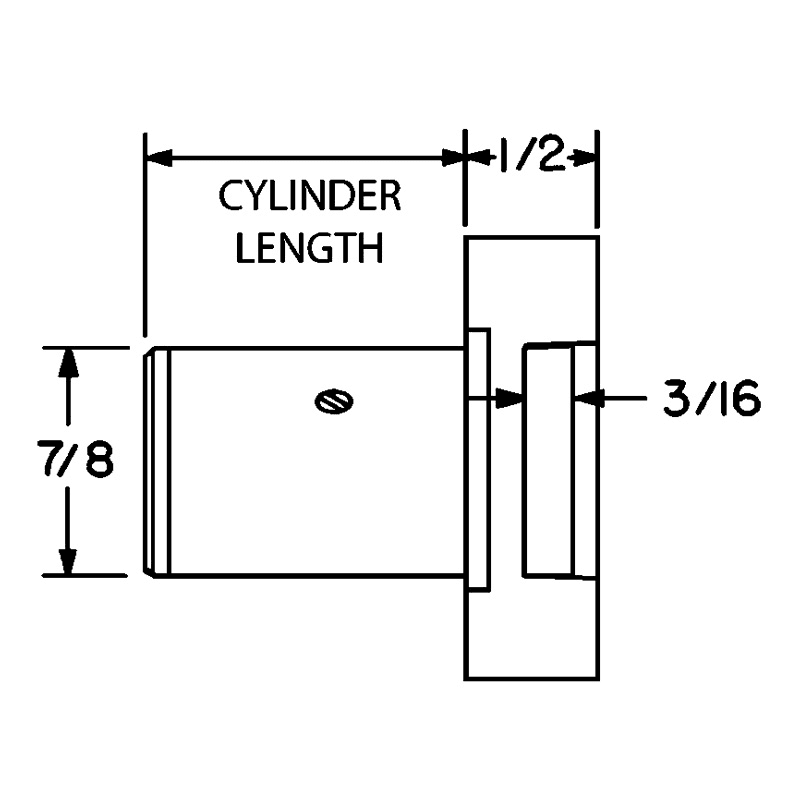

• Cylinder length: 1-3/8"
Keying Information:
• Keyway: N Series (equivalent to National D4291 4-pin or D4292 5-pin system)
• Keys: Includes 2 keys per lock
• Stock keying: KD/KA - 4 pin standard
• Stock KA#: 101, 103, 107, 915
• Masterkeyed: 5 pin standard; Grand masterkeyed: Available
Includes:
• 100DR: 2 keys, 56-1 bar strike, and lock mounting screws
This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

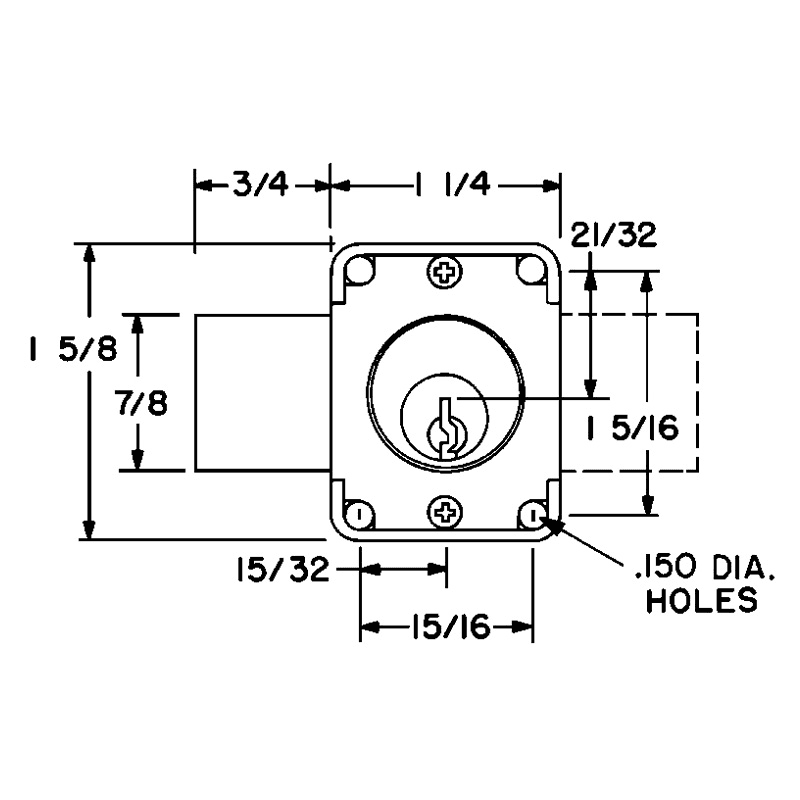

Specifications
| Keyed As | KA101 Key |
| Finish | Satin Chrome |
| Product Type | Deadbolt Door Lock |
| Width | 1-1/4" |
| Height | 1-5/8" |
| Cam Length | |
| Depth | |
| Material | Solid Brass |
| Mounting Type | |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | 7/8" |
| Certifications | ANSI/BHMA A156.11 Grade 1 |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | Yes |
| Tumbler Type | Pin Tumbler |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
