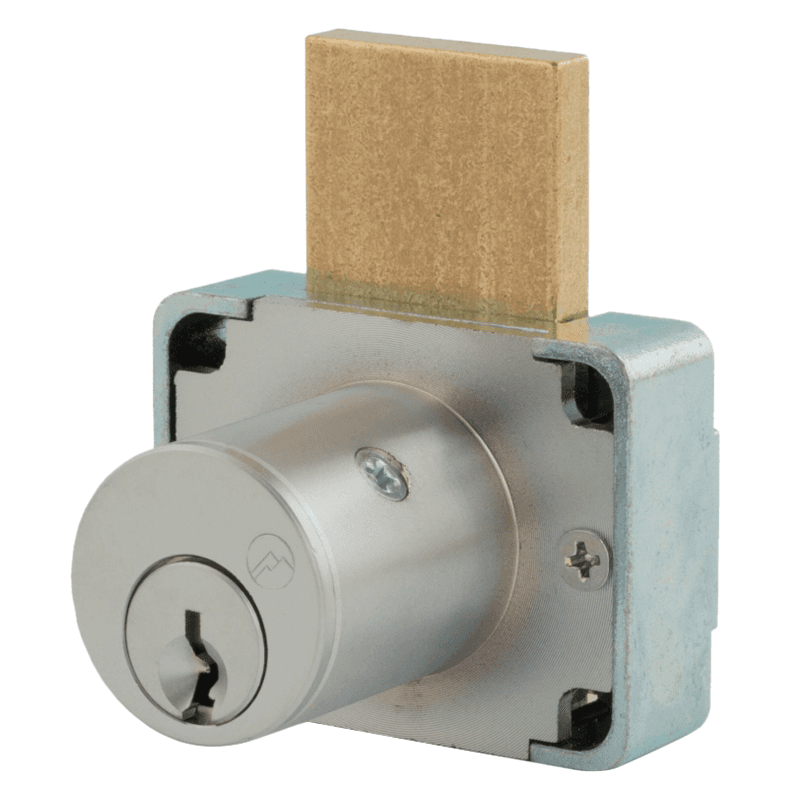

N Series Pin Tumbler Deadbolt Drawer Lock, Satin Chrome, Keyed to KA915 Key, 1-5/8" Cylinder Length
Keyed As: KA915 Key
Finish: Satin Chrome
Product Details
• Keyed to KA915
• Deadbolt drawer lock in Satin Chrome finish
• Keying: Can be keyed together with other N Series locks
• Rekeyable: Easily rekeyable via set screw cylinder release mechanism
• ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121(100DR)
• Standard function: Key removable in locked or unlocked position. Standard function locks are non-handed
• Body: Zinc die cast

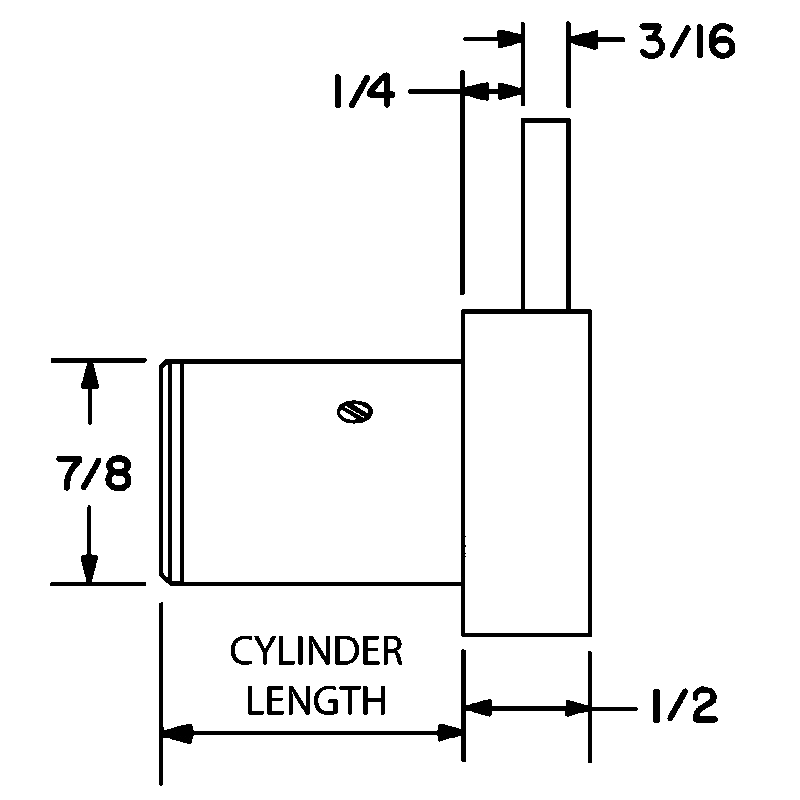

• Cylinder length: 1-5/8"
Keying Information:
• Keyway: N Series (equivalent to National D4291 4-pin or D4292 5-pin system)
• Keys: Includes 2 keys per lock
• Stock keying: KD/KA - 4 pin standard
• Stock KA#: 101, 103, 107, 915
• Masterkeyed: 5 pin standard; Grand masterkeyed: Available
Includes:
• 200DW: 2 keys, 12-3 angle strike, and lock mounting screws
This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

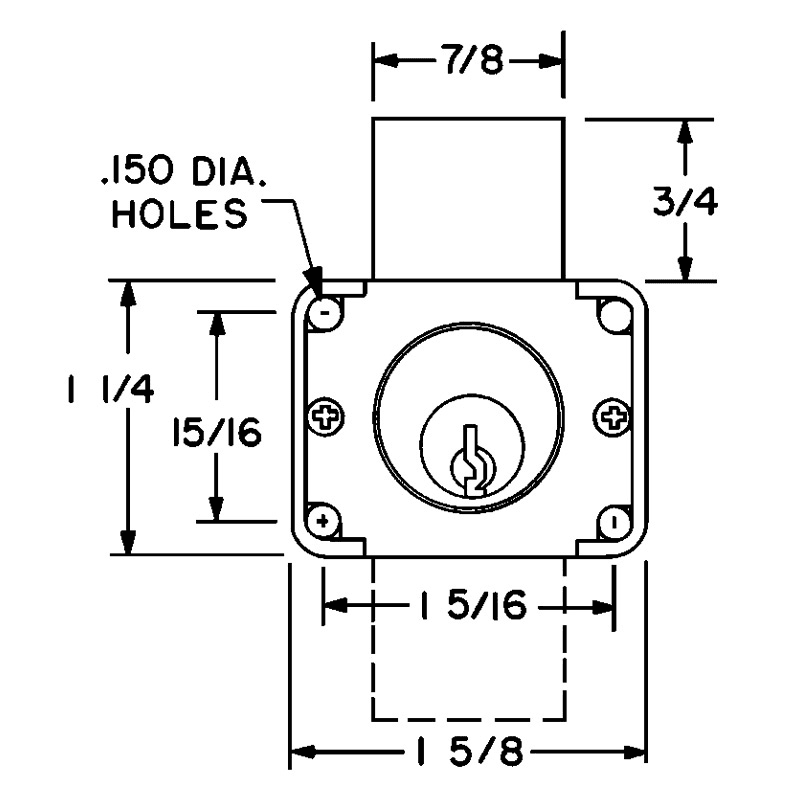

Specifications
| Keyed As | KA915 Key |
| Finish | Satin Chrome |
| Product Type | Deadbolt Drawer Lock |
| Width | 1-5/16" |
| Height | 1-1/4" |
| Cam Length | |
| Depth | |
| Material | Solid Brass |
| Mounting Type | |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | 7/8" |
| Certifications | ANSI/BHMA A156.11 Grade 1 |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | Yes |
| Tumbler Type | Pin Tumbler |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
