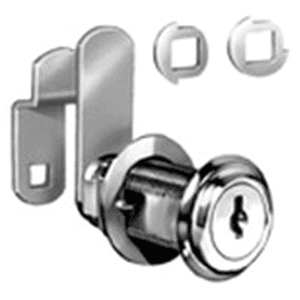

8073 Disc Tumbler Cylinder Cam Lock with FlexaCam, Bright Brass, Keyed to C415A Key
Item # NC8073-C415A-3
•Mfr # C8073-C415A-3
$11.09
/Each
25 items
$10.24/Each
100 items
$9.39/Each
Keyed As: C415A Key
Finish: Bright Brass
Product Details
Model C8073 cylinder cam lock is finished in Bright Brass features flexaCam. Three spacers enclosed with most compx national threaded disc tumbler cam locks offer three thicknesses, providing up to 12 different dimensional variations.
Includes:
• Two C346A keys
• Two cams
• Two stop washers
• Trim washer
• Spur washer - for wood
• Mounting nut
Application:

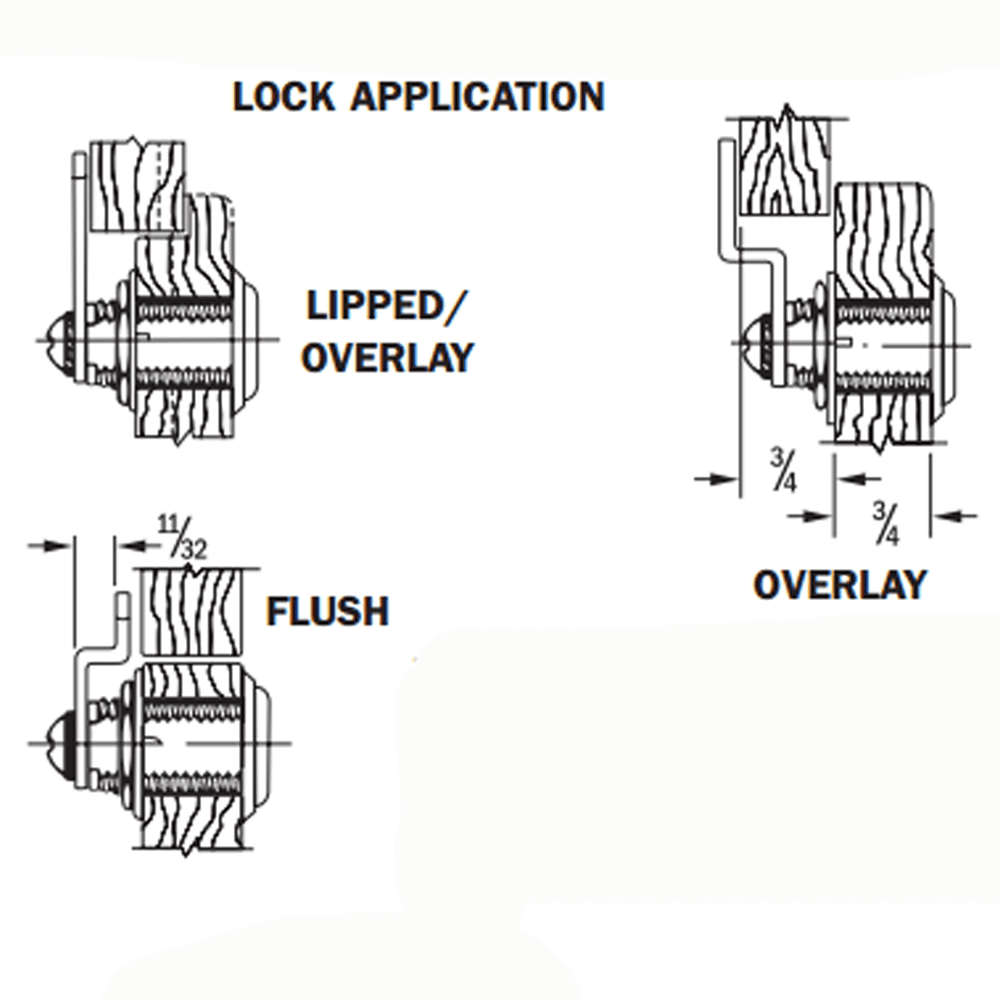

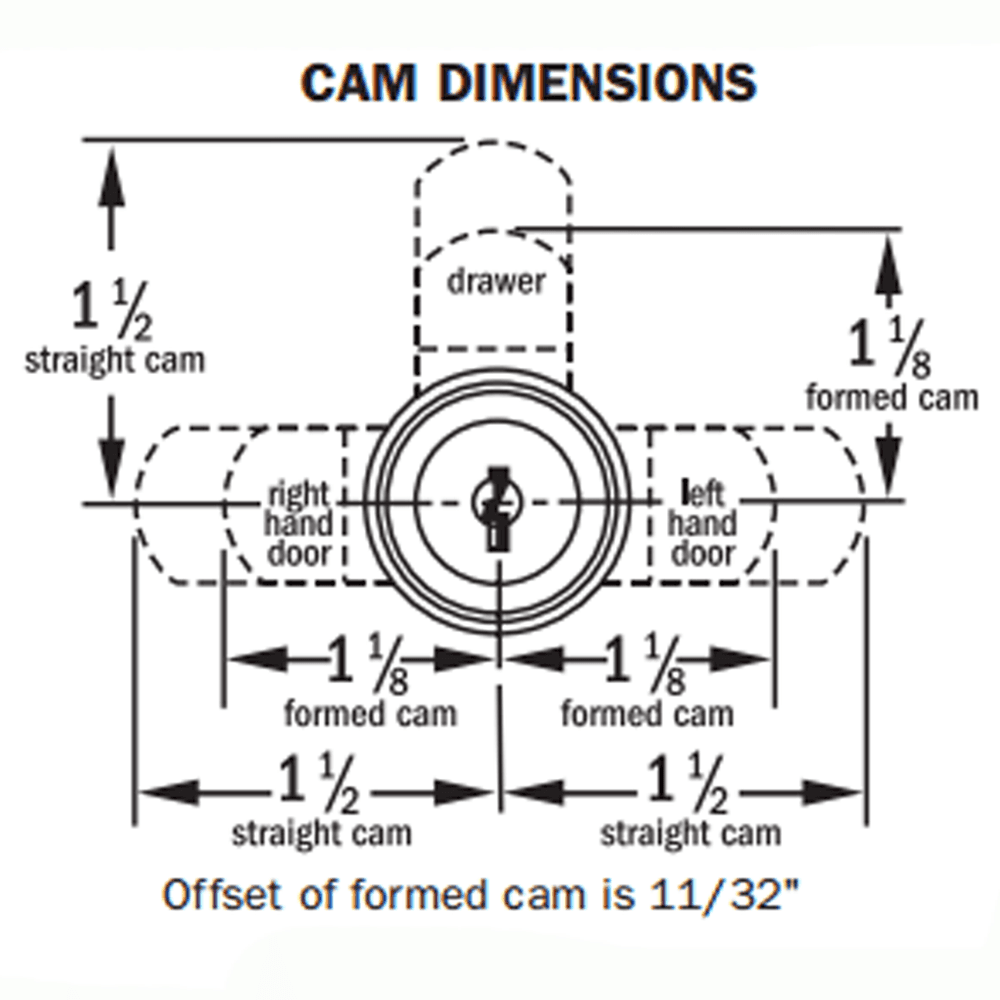

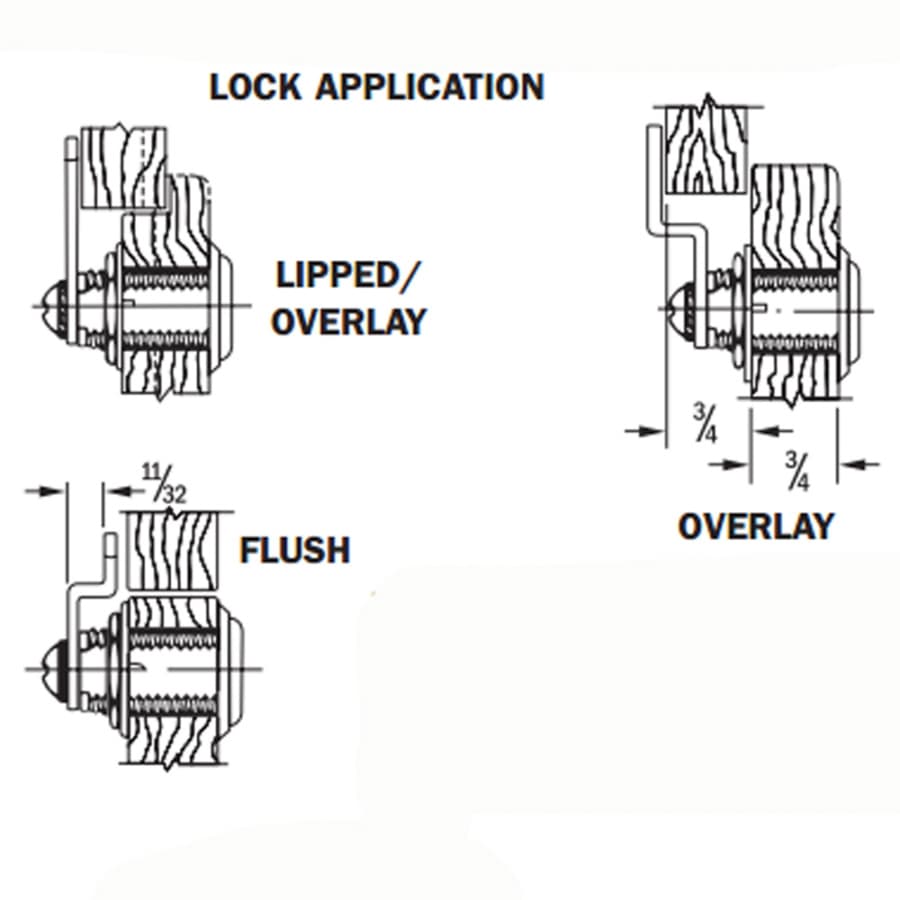

• For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam)
• For overlay application, the combined thickness of front and frame cannot exceed the cylinder length
• Do not use spur washer with metal door or drawer
Operation:
• Choice of either 90ø or 180ø cam turn. Key removable in both locked and unlocked positions
Includes:
• Two C346A keys
• Two cams
• Two stop washers
• Trim washer
• Spur washer - for wood
• Mounting nut
Application:
• For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam)
• For overlay application, the combined thickness of front and frame cannot exceed the cylinder length
• Do not use spur washer with metal door or drawer
Operation:
• Choice of either 90ø or 180ø cam turn. Key removable in both locked and unlocked positions
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 1 |
| Keyed As | C415A Key |
| Finish | Bright Brass |
| Product Type | Cylinder Cam Lock |
| Width | |
| Height | |
| Cam Length | |
| Depth | |
| Material | Steel |
| Mounting Type | |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | 3/4" |
| Certifications | |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | |
| Tumbler Type | Disc Tumbler |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
