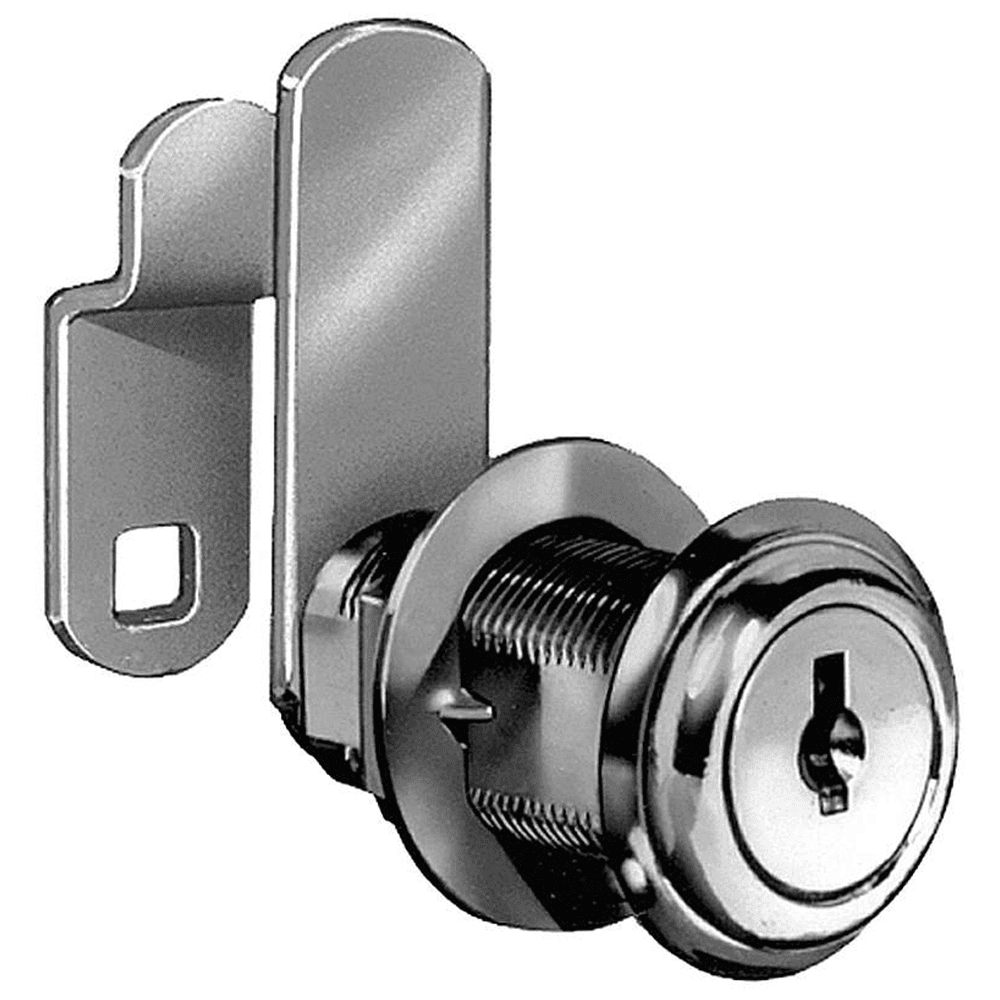

8075 Disc Tumbler Cylinder Cam Lock with FlexaCam, Bright Nickel, Keyed to C346A Key
Item # NC8075-C346A-14A
•Mfr # C8075-C346A-14A
$9.70
/Each
25 items
$8.97/Each
100 items
$8.22/Each
Keyed As: C346A Key
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• C346A key cylinder cam lock is finished in Antique Brass
• Each lock comes with two stop washers allowing cam to turn either 90ø or 180ø based on application
• For drawers, right-hand or left-hand doors
• Cams included for lipped/overlay construction (straight cam; 1-1/2" extension) or flush construction (formed cam; 1-1/8" extension, 11/32" offset)
• For overlay application, the combined thickness of front and frame cannot exceed the cylinder length listed below
• To accommodate an overlay construction using a 3/4" front and a 3/4" frame, order the NLC8073 lock and the NLC7014-2C cam
• Stop washers provided for both 90ø or 180ø cam turns
• Key removable in both locked and unlocked positions

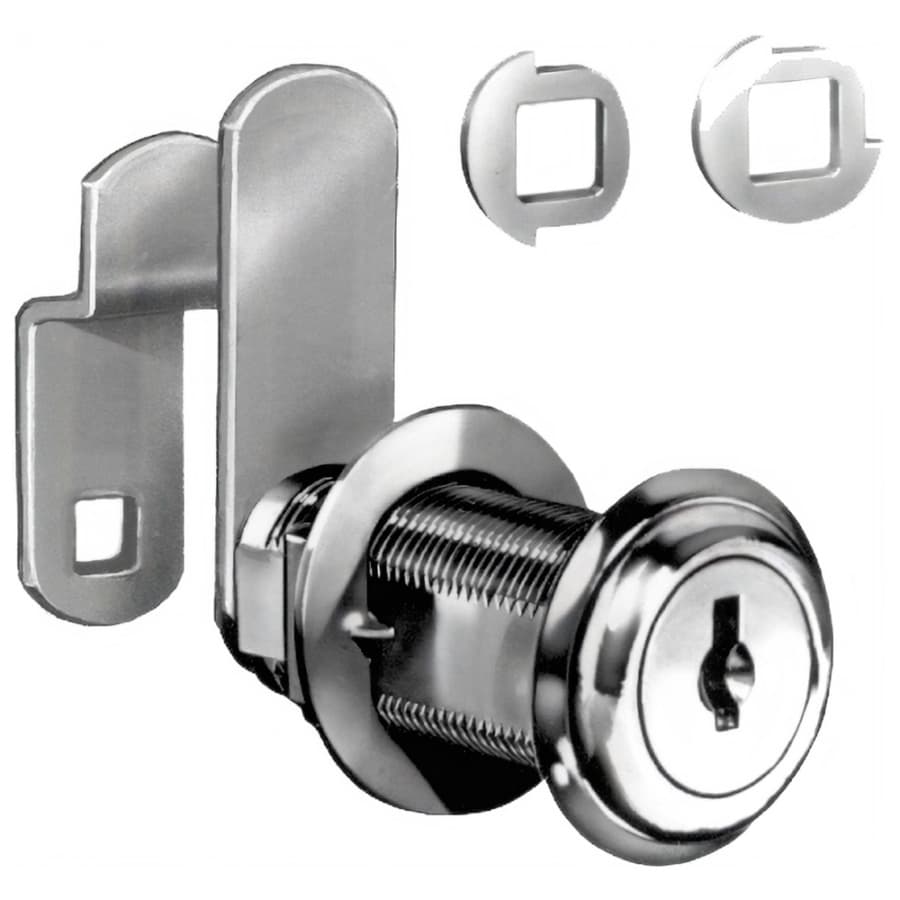

• Supplied with two keys, trim washer, spur washer (for wood), mounting nut, two cams and two stop washers
• Unassembled Removacore versions of this lock are available
• C346A key cylinder cam lock is finished in Antique Brass
• Each lock comes with two stop washers allowing cam to turn either 90ø or 180ø based on application
• For drawers, right-hand or left-hand doors
• Cams included for lipped/overlay construction (straight cam; 1-1/2" extension) or flush construction (formed cam; 1-1/8" extension, 11/32" offset)
• For overlay application, the combined thickness of front and frame cannot exceed the cylinder length listed below
• To accommodate an overlay construction using a 3/4" front and a 3/4" frame, order the NLC8073 lock and the NLC7014-2C cam
• Stop washers provided for both 90ø or 180ø cam turns
• Key removable in both locked and unlocked positions
• Supplied with two keys, trim washer, spur washer (for wood), mounting nut, two cams and two stop washers
• Unassembled Removacore versions of this lock are available
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Keyed As | C346A Key |
| Finish | Bright Nickel |
| Product Type | Cylinder Cam Lock |
| Width | |
| Height | |
| Cam Length | |
| Depth | |
| Material | Zinc Die-Cast |
| Mounting Type | |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | 3/4" |
| Certifications | |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | |
| Tumbler Type | Disc Tumbler |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
