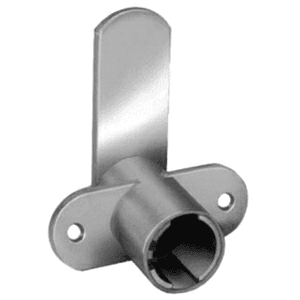

RemovaCore 1-3/4" Cam Lock Cylinder Body, Bright Nickel
Item # NCM57054N-14A
•Mfr # M5-7054N-14A
$5.39
/Each
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• 90ø Cam turn locks come with one stop washer allowing cam to turn 90ø, 90ø and 180ø Cam turn locks come with two stop washers to allow cam to turn either 90ø or 180ø based on application
• Removacore locks are factory master keyed
• Once assembled, the master key for the Removacore will open any pre-assembled disc tumbler from Compx National that is factory master keyed (KAMKD or KDMKD)
• For drawers, RH or LH doors either lipped, flush or overlay
• Separate core plug and cylinder assembly (lock housing)
• Requires 3/4" diameter hole for installation
• Key removable in locked position only
• Control key is required to install core plugs into cylinder assembly
• Plugs supplied with 2 keys
• Housing supplied with trim washer, spur washer (for wood), mounting nuts and two cams (Straight: 1-1/2" extension; Formed: 1-1/8" extension and 11/32" offset)
• Cannot mix assembled locks (i.e. C8053) with this product, they are not master keyed
• 90ø Cam turn locks come with one stop washer allowing cam to turn 90ø, 90ø and 180ø Cam turn locks come with two stop washers to allow cam to turn either 90ø or 180ø based on application
• Removacore locks are factory master keyed
• Once assembled, the master key for the Removacore will open any pre-assembled disc tumbler from Compx National that is factory master keyed (KAMKD or KDMKD)
• For drawers, RH or LH doors either lipped, flush or overlay
• Separate core plug and cylinder assembly (lock housing)
• Requires 3/4" diameter hole for installation
• Key removable in locked position only
• Control key is required to install core plugs into cylinder assembly
• Plugs supplied with 2 keys
• Housing supplied with trim washer, spur washer (for wood), mounting nuts and two cams (Straight: 1-1/2" extension; Formed: 1-1/8" extension and 11/32" offset)
• Cannot mix assembled locks (i.e. C8053) with this product, they are not master keyed
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Keyed As | |
| Finish | Bright Nickel |
| Product Type | Cylinder Body |
| Width | |
| Height | |
| Cam Length | |
| Depth | |
| Material | |
| Mounting Type | |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | |
| Certifications | |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | |
| Tumbler Type | |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
