720LM/DM No Core Cam Lock Body, Satin Chrome
25 items
Finish: Satin Chrome
Product Details

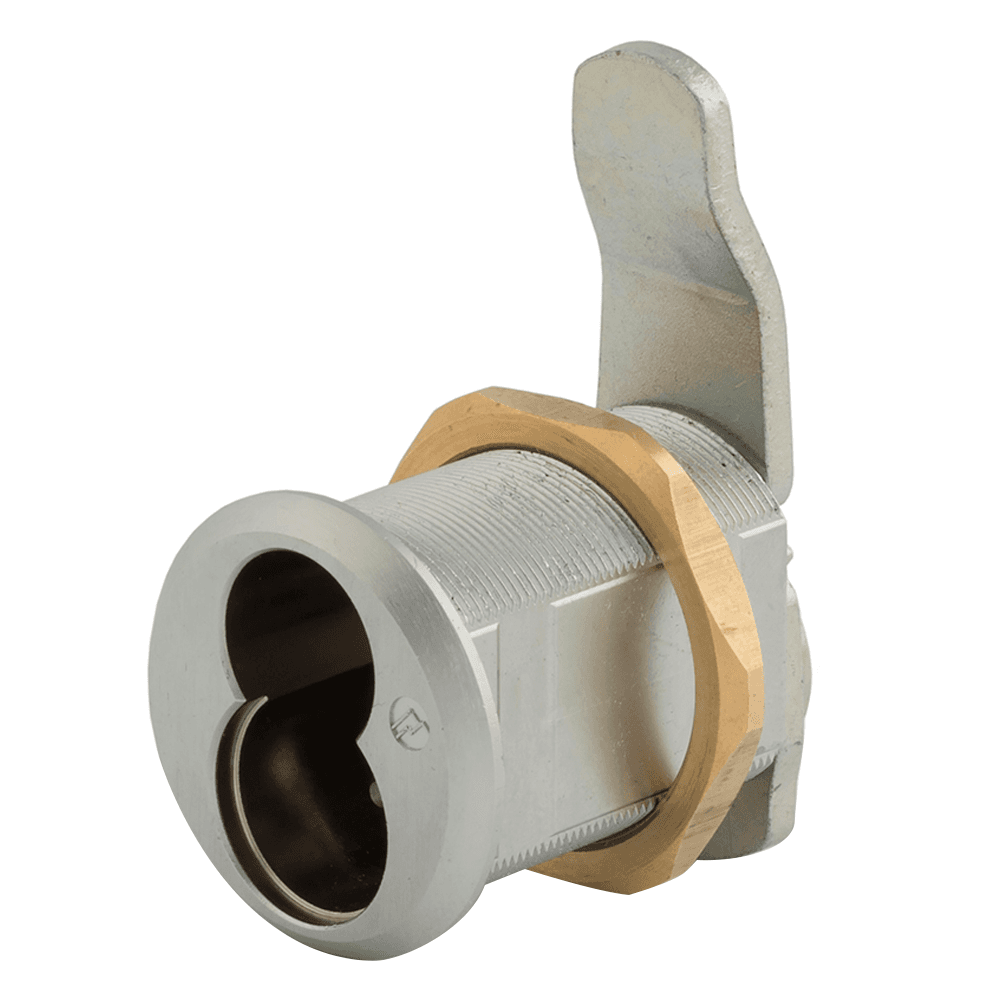

• 1-1/8" Cylinder Cam Lock Body is finished in Satin Chrome
• Retrofits: Best 1E7E4
• ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07261/E07271
• Cylinder diameter: 1-1/8"

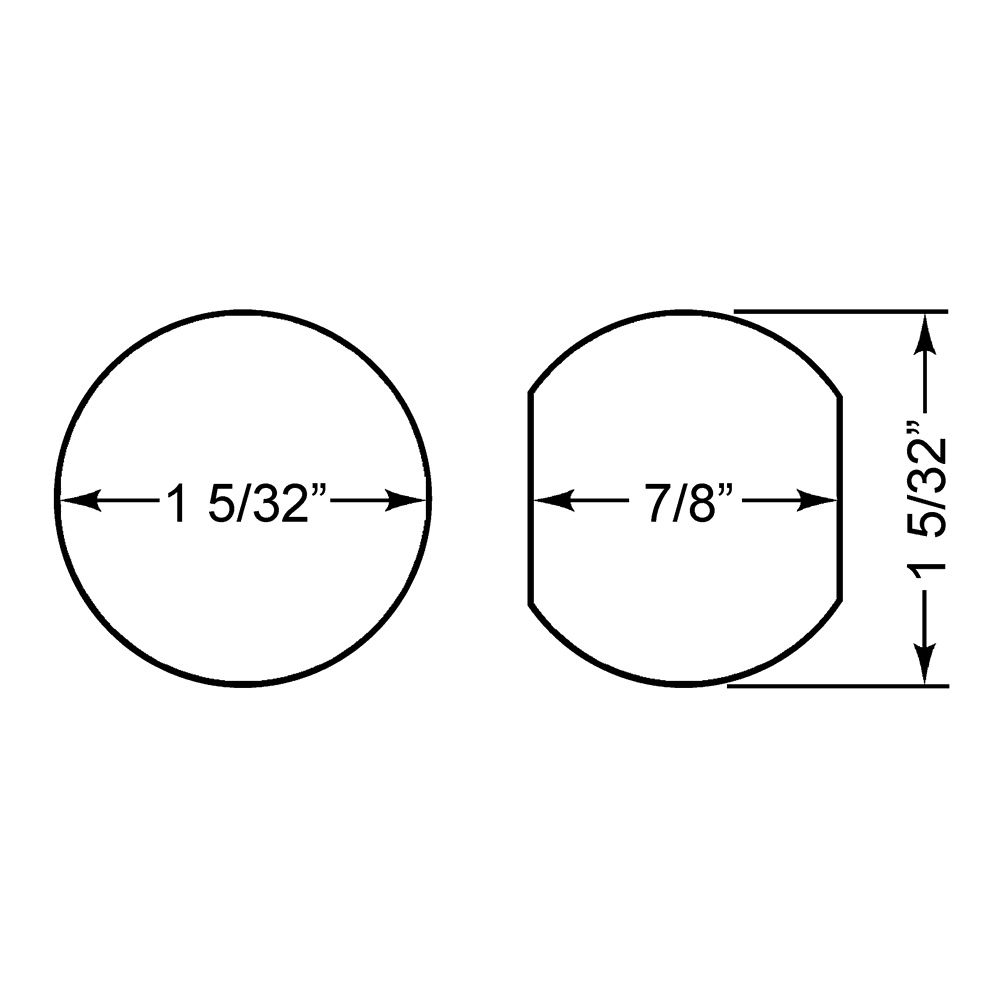

• Across flats: 7/8"
• Max. material thickness: 1-1/8"
• Min. material thickness: 0.08"
• Functions: Includes parts for key-retaining or non-key-retaining function
• Body: Zinc die cast
Keying Information:
• Cores: Not included
• Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores
• Compatible electronic cylinders: Medico Nexgen XT or VIDEX CyberLock SFIC cylinders
Includes:
• 725-PA plastic thumb turn
• 720-PL3 stabilizer plate
• 725-1 spacer to fit 6 or 7 pin cores
• 720-3-1 short inverted cam
• 720-3-2 long vertical cam
• 720-CDLM lost motion cam shifter
• 720-CDDM key retaining door cam shifter
• 720-KR key retaining drawer cam shifter
This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Keyed As | |
| Finish | Satin Chrome |
| Product Type | Cam Lock Body |
| Width | |
| Height | |
| Cam Length | |
| Depth | |
| Material | Zinc Die-Cast |
| Mounting Type | |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | 1-1/8" |
| Certifications | ANSI/BHMA Grade 1 E07261/E07271 |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | Yes |
| Tumbler Type | |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
