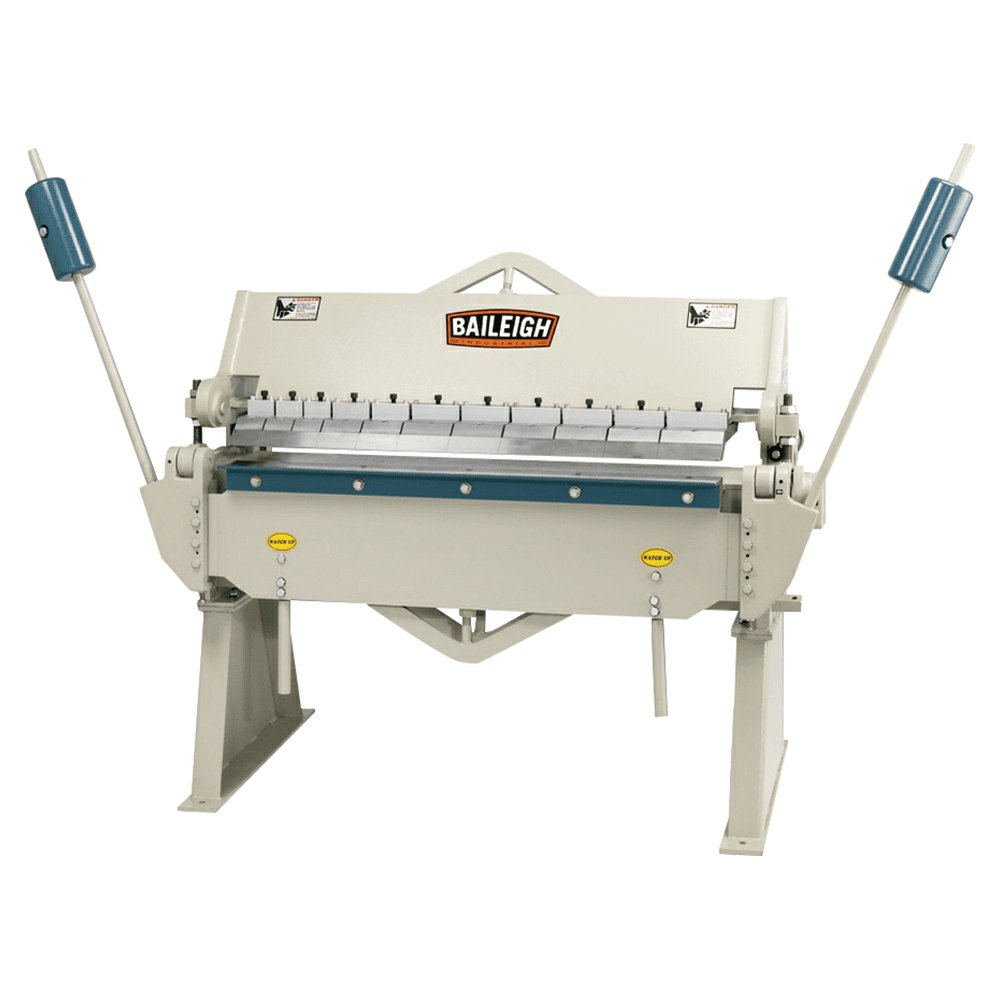

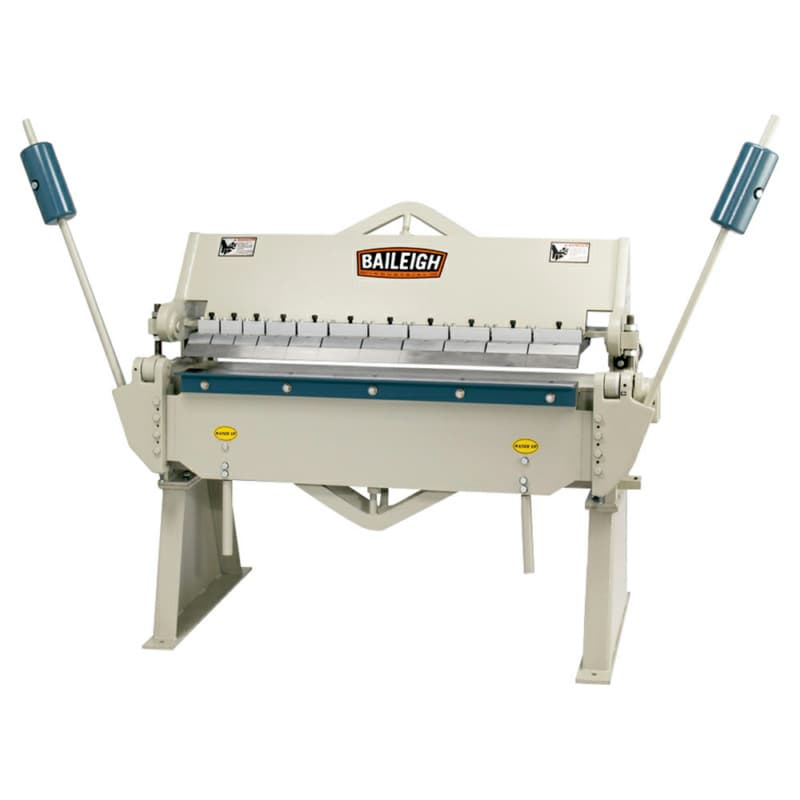

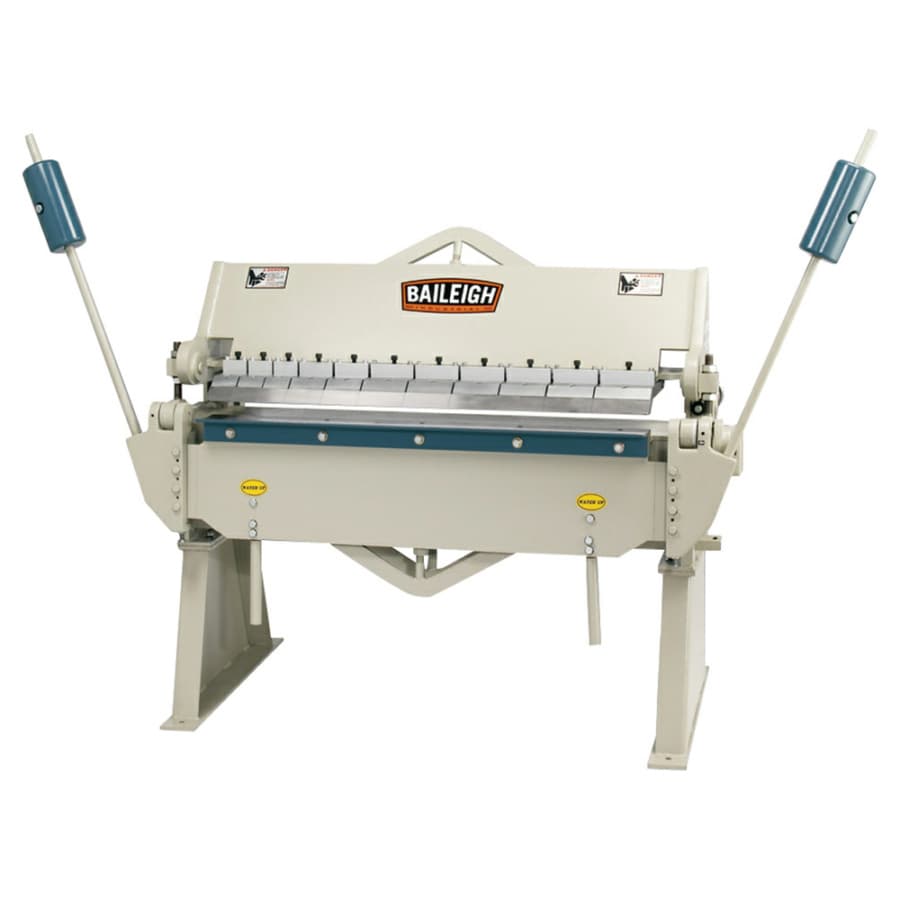

Baileigh BB-4812 Finger Brake
This item may incur additional shipping costs and lead times.
Product Details
Built to offer years of service, the BB-4812 manual sheet metal bender is one of the most powerful manual finger breaks on the market. With its thick steel plate construction, this small metal brake weighs just under 2000lbs. Features: • Bends 12 gauge (or lighter) mild steel • 4 feet (48") long with a maximum bend angle of 135° • Compact size makes a great fit for tight floor plans • Includes 11 hardened and polished 3-piece fingers of varying lengths (3 at 3", 2 at 4", 5 at 5",1 at 6"). You can make many different box sizes • Up to 6" box depth, made possible by 3-piece design, is one of the largest available • 2 handwheels adjust the gap for varying material thickness • Comes standard with a stop rod system to help you make repeatable bends and simplify production runs • Heavy counterweights assist you with bending thick sheet metal-a relief for operators who frequently use the box brake for long periods of time • Massive torsion system, connected to the steel beam and leaf, keeps the beam from twisting at maximum capacity • Electro-welded steel framework, supported by solid steel adjustable trusses, prevents flexing, and maintains accuracy
Downloads
Specifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | |
| Mild Steel Capacity (Gauge) | 12 |
| Motor (HP) | |
| Nose Radius | |
| Number and Width of Fingers | |
| Overall Dimensions (L x W x H) | |
| Overall Length | 48" |
| Product Type | Box/Pan Sheet Metal Brakes |
| Short Description | *Manual box and pan brake *12-gauge mild steel capacity *4-foot length *Includes 11 fingers, from 3" to 6" |
| Maximum Lift of Beam | |
| Maximum Box Depth | 6" |
| Beam Adjustment (Front to Rear) | 1" |
| Bending Length Capacity | |
| Configurable Base Item | |
| Configurator Option Type | |
| Finger Nose Angle (Deg.) | |
| Input Power | Manual |
| Max. Bend (Deg.) | 0 - 135° |
| Max. Clamping Bar Lift | |
| Table Length |
