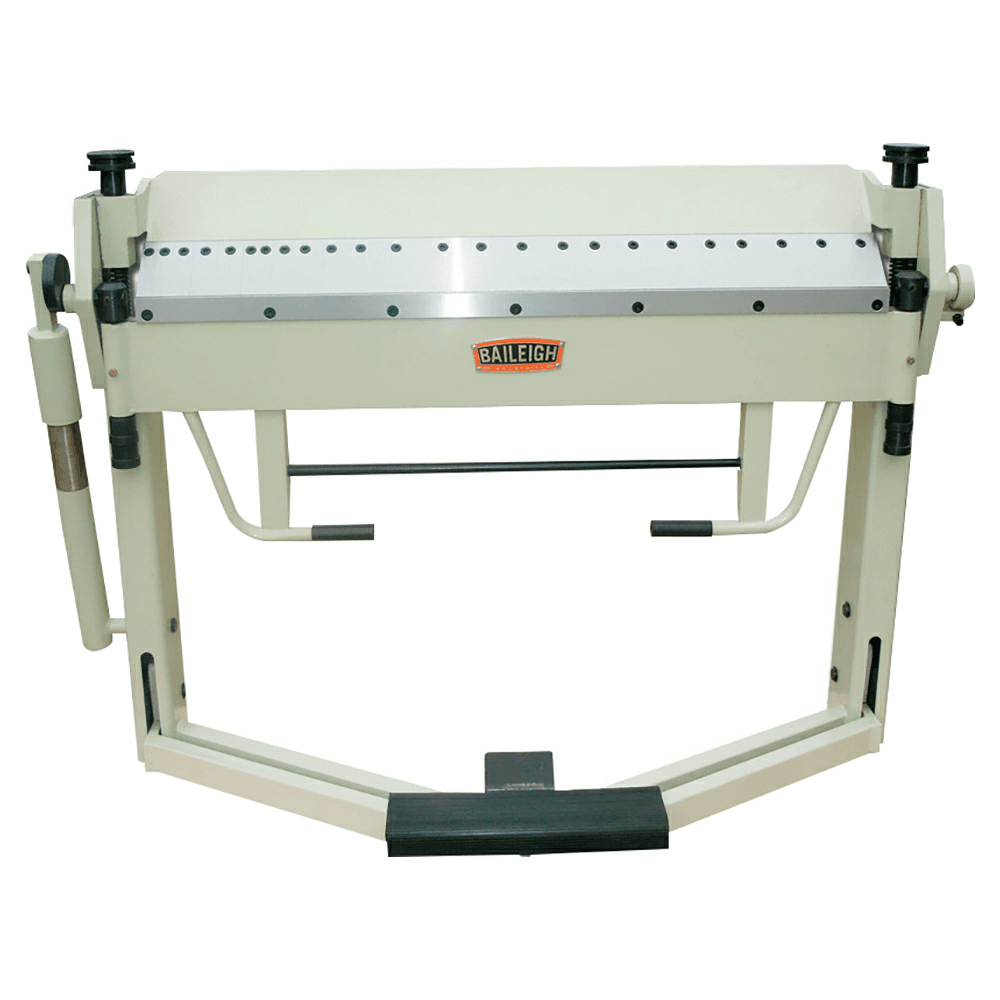

Baileigh BB-5014F Finger Brake
This item may incur additional shipping costs and lead times.
Product Details

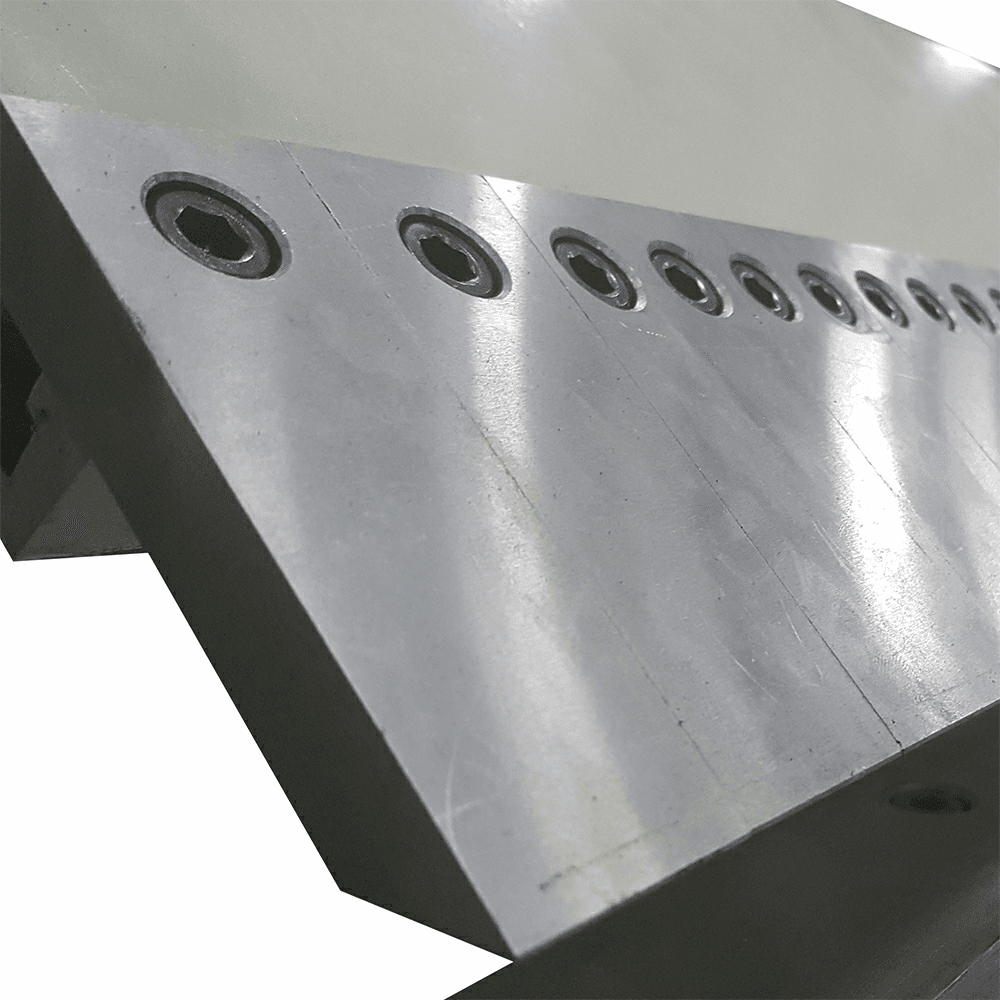

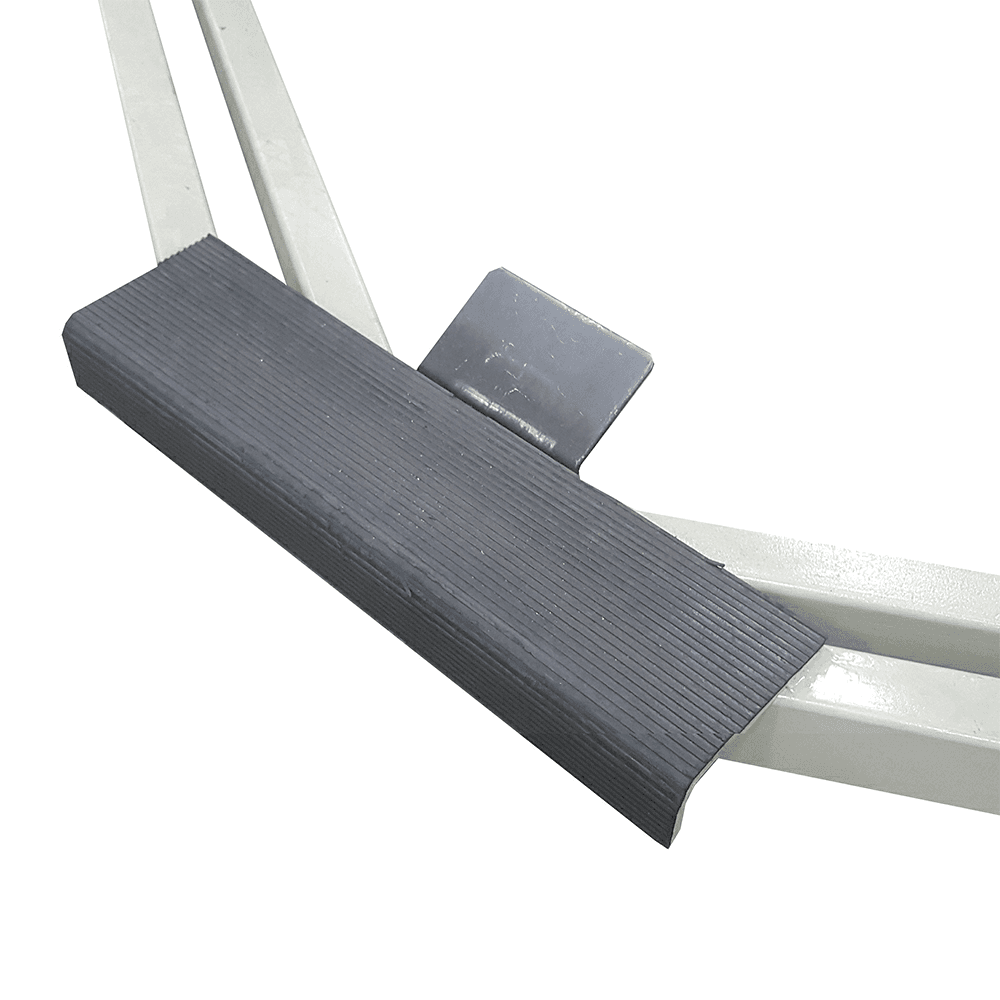

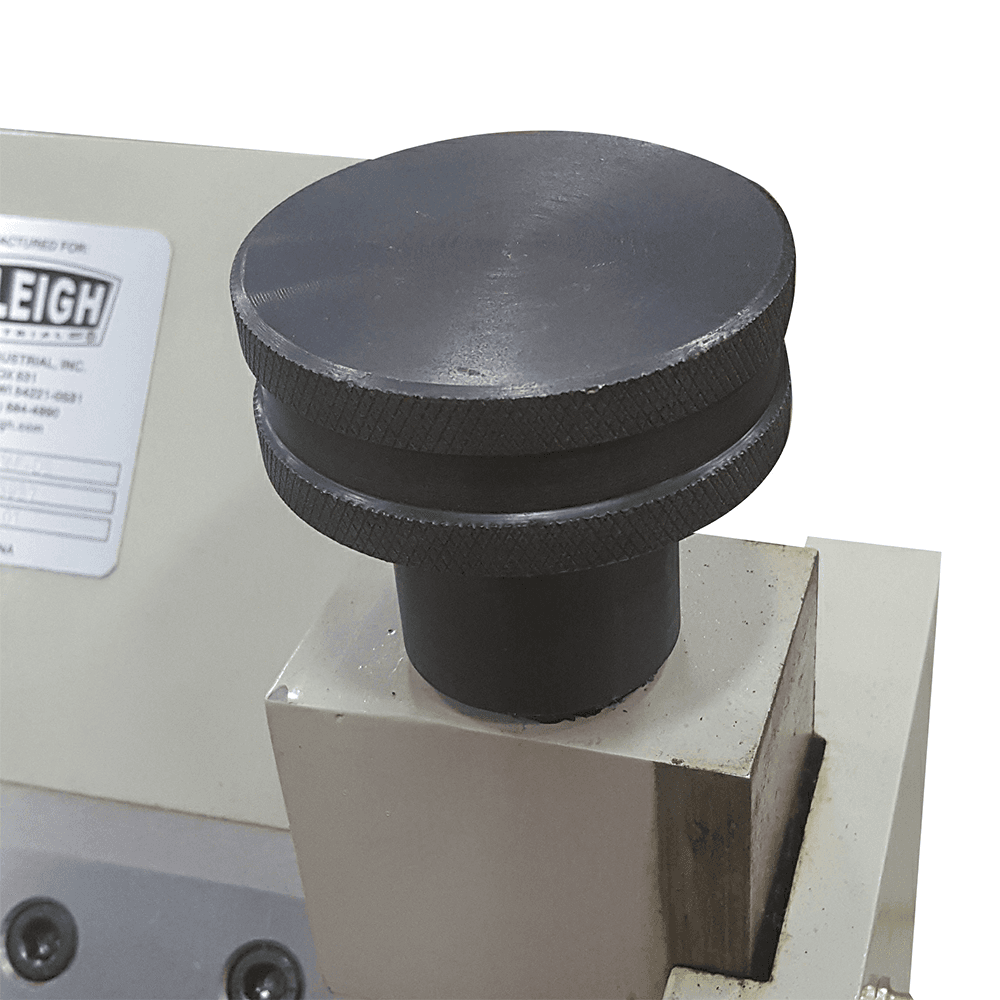

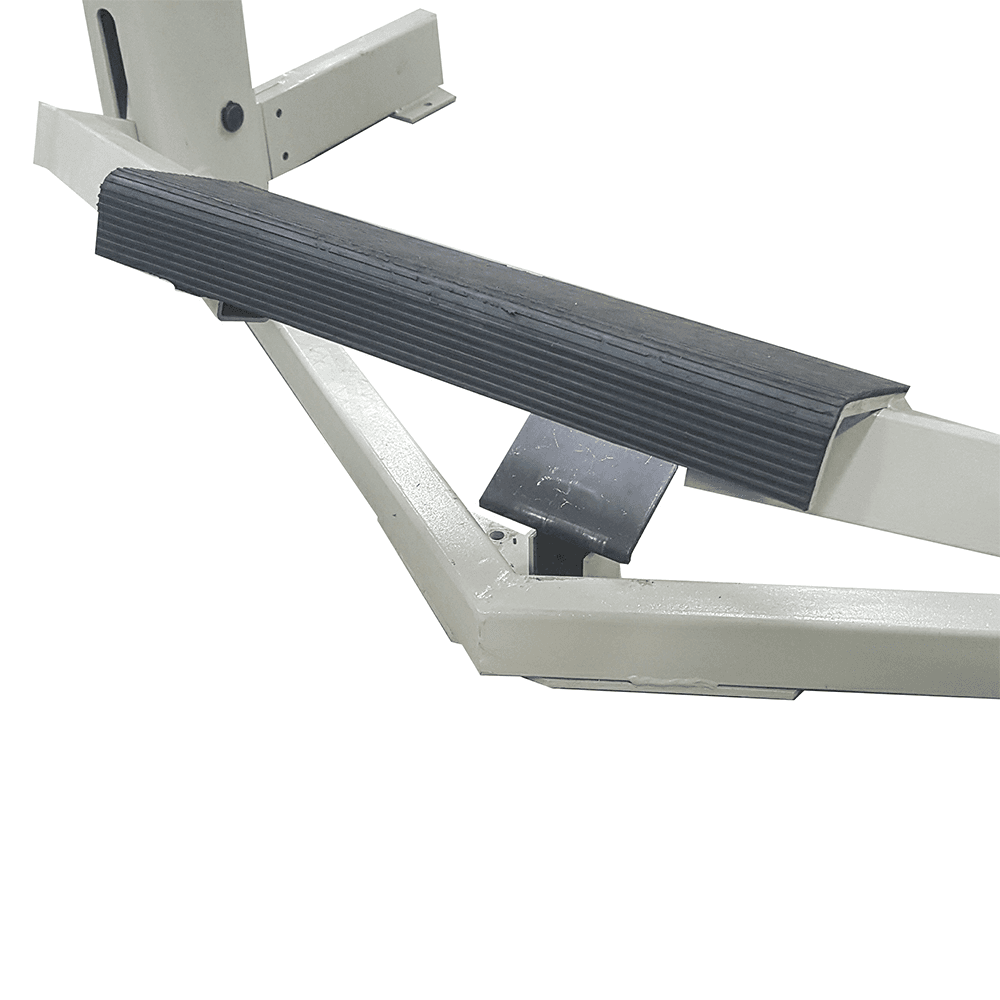

The Box brake lets you clamp sheet metal with a foot pedal, so both hands are free to position the material. Features: • Bends a maximum capacity of 14-gauge mild steel across the brake's full 50" length • Adjustable stop rod makes it easy to produce repeatable bends • Knobs at each end of the brake let you fine tune the clamping pressure to fit your application • Includes 12 fingers of varying widths that you can easily rearrange to create different sizes of tanks, pans, boxes and more • Spring-loaded cylinder assists in lifting the apron, which you'll find particularly useful when bending at full capacity • Blade gap adjustment enables you to take on various gauges of sheet metal • Made with a fully welded steel framework to maintain accuracy and reduce deformation
Downloads
Specifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | |
| Mild Steel Capacity (Gauge) | 14 |
| Motor (HP) | |
| Nose Radius | |
| Number and Width of Fingers | |
| Overall Dimensions (L x W x H) | |
| Overall Length | 50" |
| Product Type | Box/Pan Sheet Metal Brakes |
| Short Description | *Manual box brake *14-gauge mild steel capacity *50" length *Includes foot pedal for clamping |
| Maximum Lift of Beam | |
| Maximum Box Depth | 2.5" |
| Beam Adjustment (Front to Rear) | |
| Bending Length Capacity | 50" |
| Configurable Base Item | |
| Configurator Option Type | |
| Finger Nose Angle (Deg.) | |
| Input Power | Manual |
| Max. Bend (Deg.) | |
| Max. Clamping Bar Lift | |
| Table Length |
