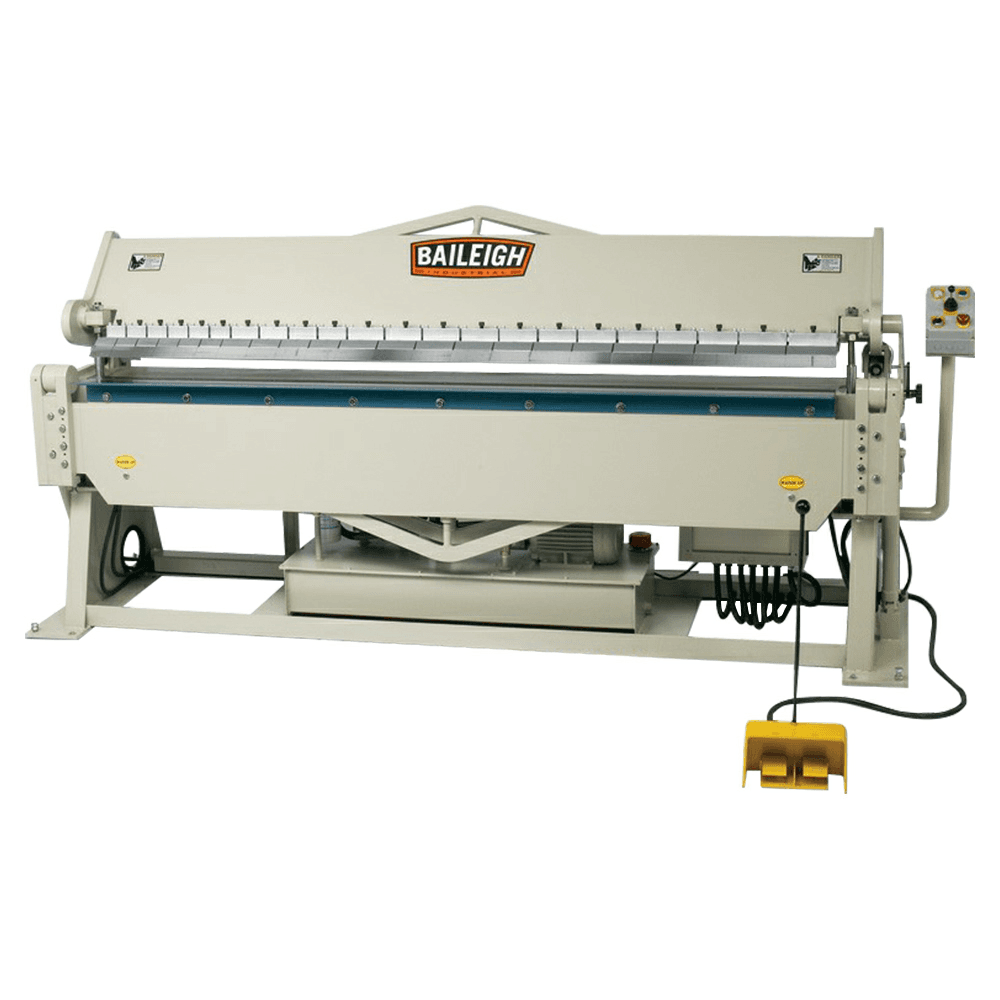

Baileigh BB-9612H Hydraulic Box/Pan Brake, 3 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details
Supported by a fully-welded steel frame, the BB-9612H Hydraulic box and pan brake can bend 12-gauge mild steel (or lighter) across its full 8-foot (96") width. Features: • 135° maximum bend angle • Comes standard with 22 fingers (6 fingers of 3", 4 of 4", 10 of 5", and 2 of 6") that you can adjust to make different sizes of boxes and pans • Powerful industrial-grade hydraulics lift the leaf and lift or clamp the beam • You can run this hydraulic sheet metal brake in manual or semi-automatic mode via toggle or foot pedal controls • Adjustable bend auto-stop, for easy and exact repeatability, makes this a very production-oriented hydraulic sheet metal brake • Apron angle bar detaches to let you get closer between bends • Electro-welded beam and leaf, stabilized with truss rods, minimizes deflection when you're bending at full capacity and keeps bends crisp and accurate
Specifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | |
| Mild Steel Capacity (Gauge) | 12 |
| Motor (HP) | 3 HP |
| Nose Radius | |
| Number and Width of Fingers | |
| Overall Dimensions (L x W x H) | |
| Overall Length | 96" |
| Product Type | Hydraulic Sheet Metal Brakes |
| Short Description | *220V 3-phase box brake *12-gauge mild steel capacity *8-foot length *Includes 22 Fingers, from 3" to 6" |
| Maximum Lift of Beam | |
| Maximum Box Depth | 6" |
| Beam Adjustment (Front to Rear) | 1" |
| Bending Length Capacity | |
| Configurable Base Item | |
| Configurator Option Type | |
| Finger Nose Angle (Deg.) | |
| Input Power | 220V/3-phase |
| Max. Bend (Deg.) | |
| Max. Clamping Bar Lift | |
| Table Length |
