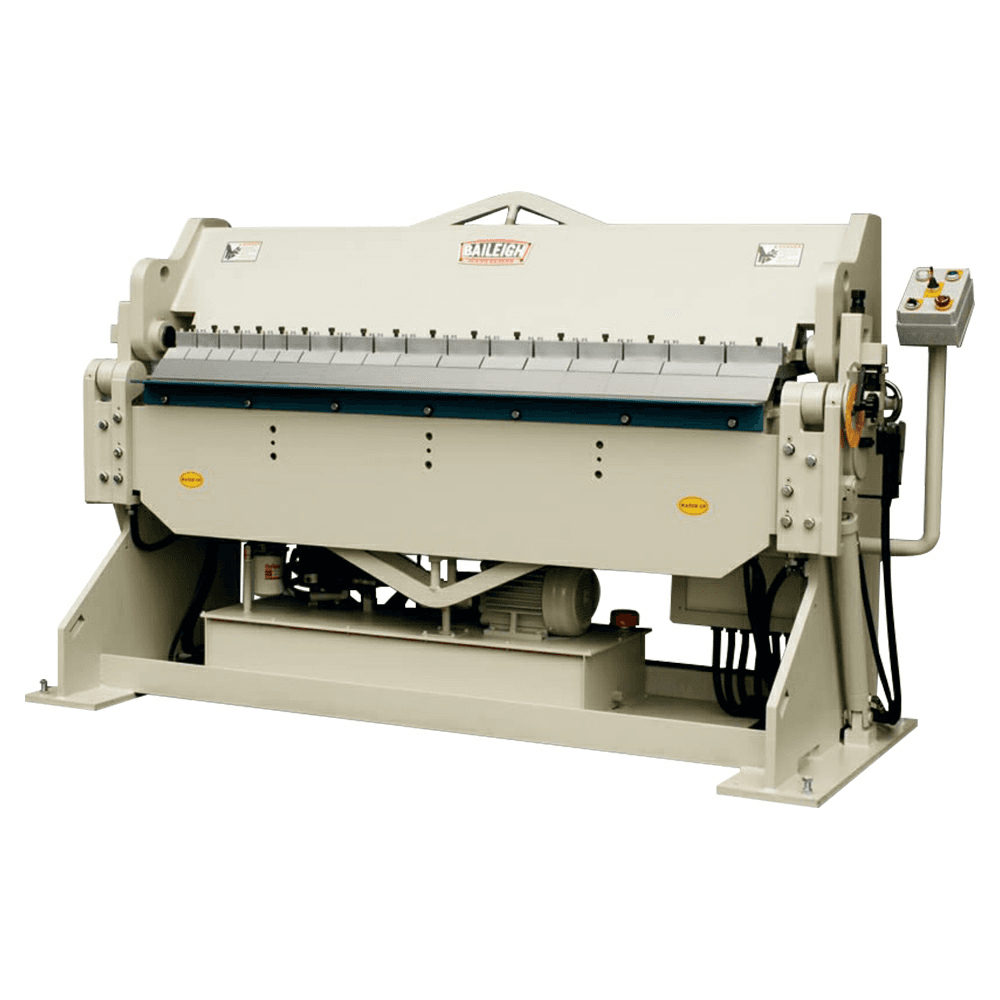

Baileigh BB-7210H Hydraulic Box/Pan Brake, 3 Phase/220V
This item may incur additional shipping costs and lead times.
Product Details
The BB-7210H Hydraulic sheet metal box and pan brake can bend 10-gauge mild steel sheet metal across its full 6-foot (72") length. It also handles smaller gauges just as easily. Features: • Maximum bend angle of 135° with a 1" beam adjustment • Box and pan brake made with top-quality industrial-grade hydraulics for reliability over many years of use • You can operate the hydraulic system in manual or semi-automatic mode to lift the leaf • Adjustable bend auto-stop makes production runs more efficient and ensures repeatability • 5 hp motor controls all hydraulic functions and runs on 220-volt 3-phase power • Hydraulic motor attached to a cam lifts and clamps the beam to deliver the extreme pressure required to bend 10-gauge mild steel • Includes 17 hardened 3-piece fingers (6 of 3", 3 of 4", 6 of 5", and 2 of 6") to adjust for just about any size box or pan • 6" maximum box depth • Removable bending apron lets you get closer between bends • Fully welded top beam and bending leaf, stabilized with solid steel support rods, keep deflection and twisting to a minimum when you're bending at full capacity
Specifications
| Box Quantity | 1 |
| Approx. Pressure (Tons) | |
| Mild Steel Capacity (Gauge) | 10 ga |
| Motor (HP) | 5 HP |
| Nose Radius | |
| Number and Width of Fingers | |
| Overall Dimensions (L x W x H) | |
| Overall Length | 72" |
| Product Type | Hydraulic Sheet Metal Brakes |
| Short Description | 220V 3-phase hydraulic box brake 10-gauge mild steel capacity 6-foot length Includes 17 fingers, from 3" to 6" |
| Maximum Lift of Beam | |
| Maximum Box Depth | 6" |
| Beam Adjustment (Front to Rear) | 1" |
| Bending Length Capacity | |
| Configurable Base Item | |
| Configurator Option Type | |
| Finger Nose Angle (Deg.) | |
| Input Power | 220V / 3-phase |
| Max. Bend (Deg.) | 0 - 135° |
| Max. Clamping Bar Lift | |
| Table Length |
