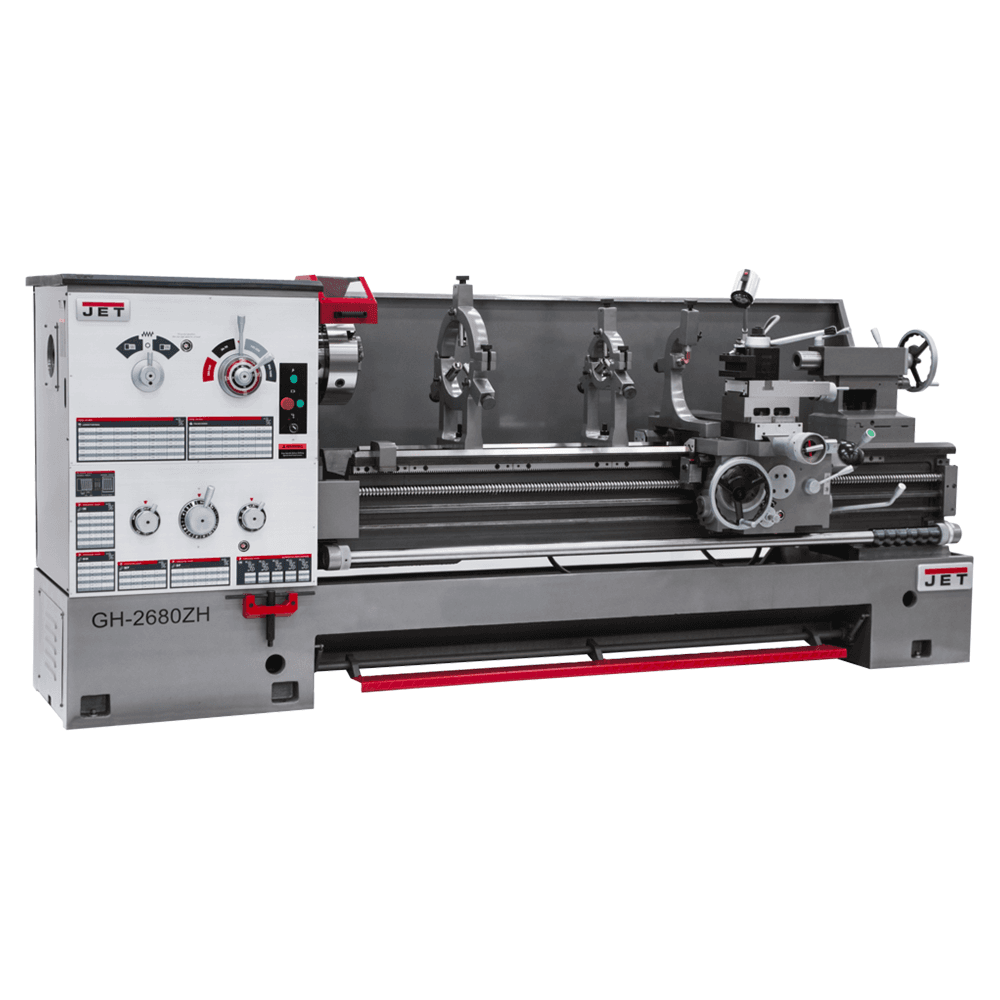

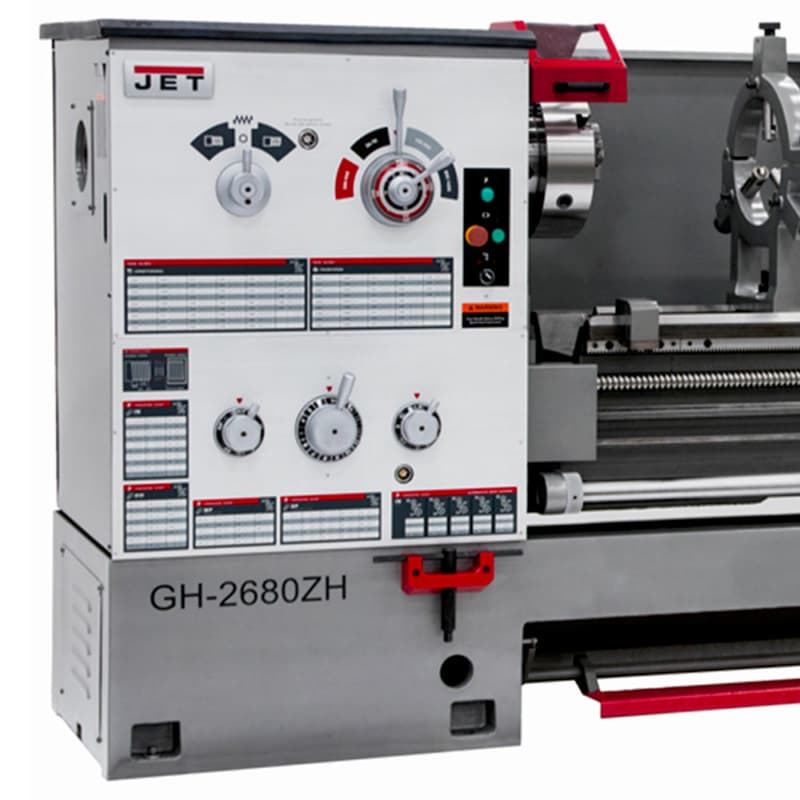

Jet Tools GH-2680ZH 4-1/8" Spindle Bore Geared Head Lathe, 3 Phase/230V/460V
This item may incur additional shipping costs and lead times.
Product Details

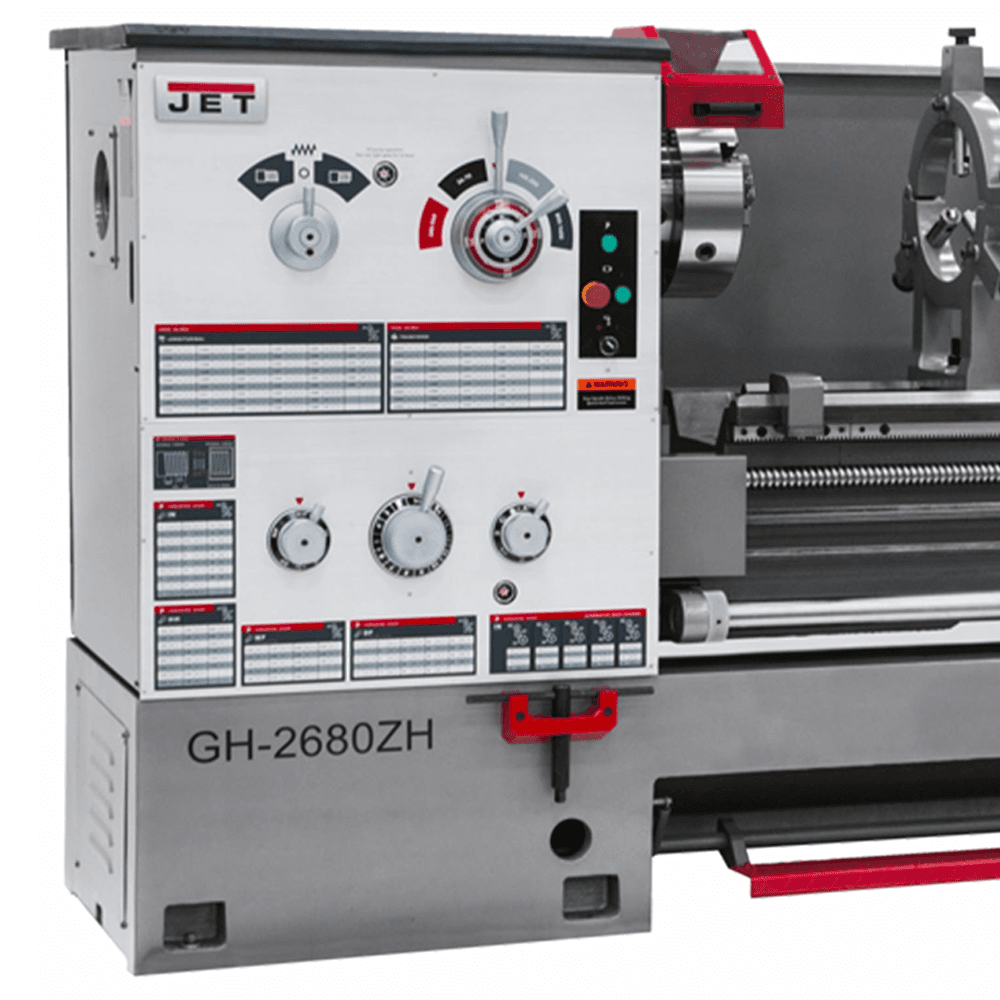

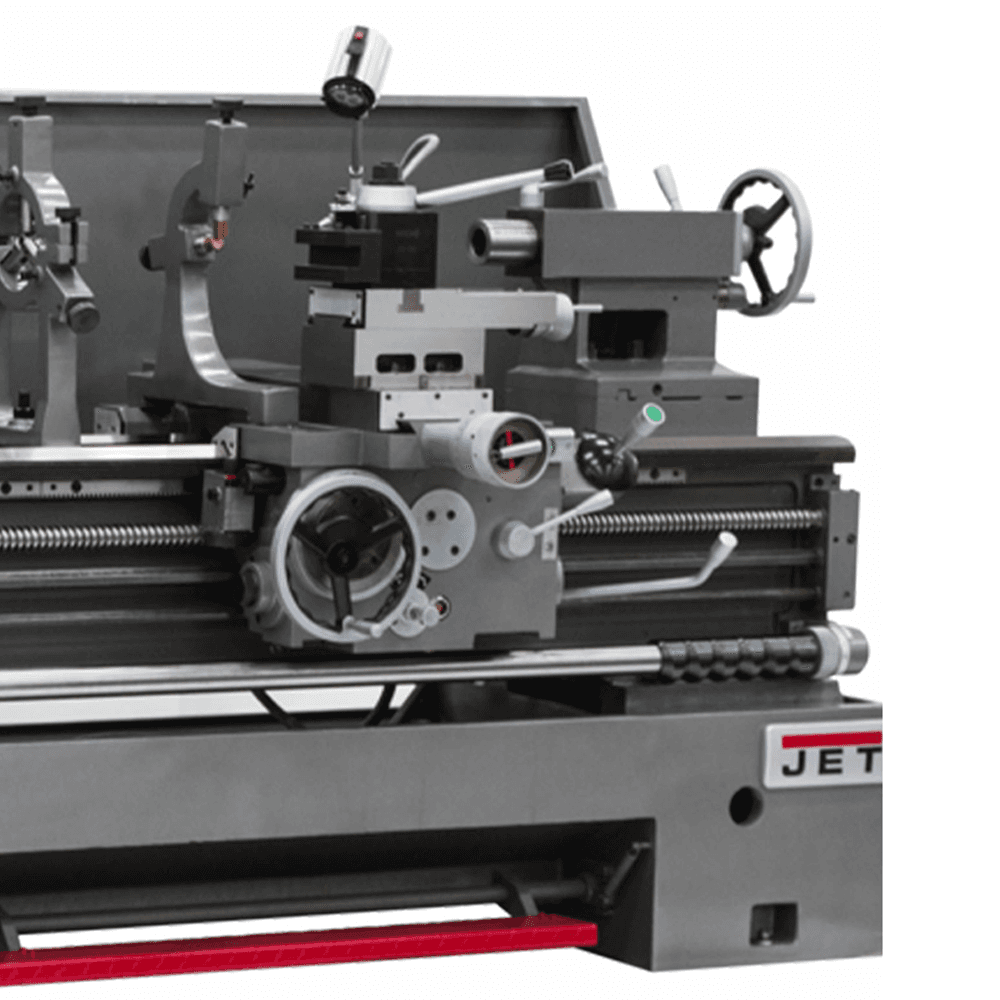

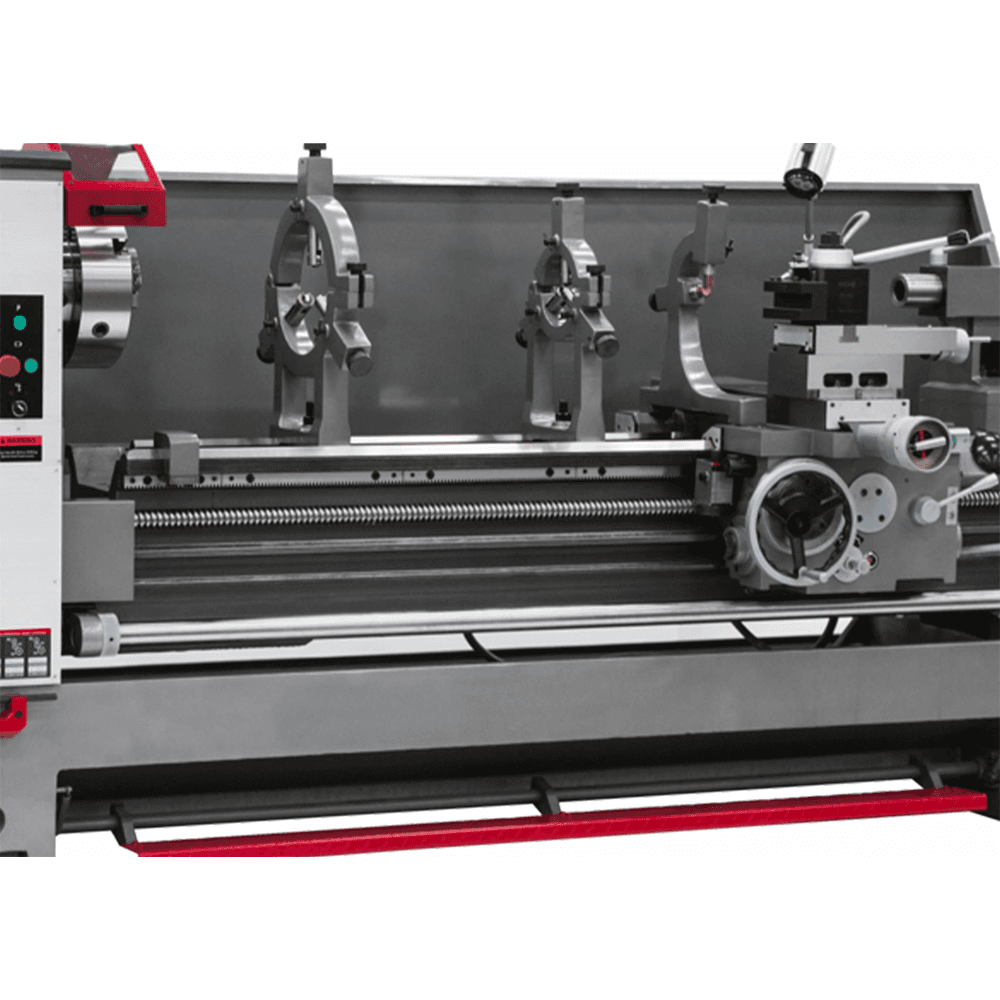

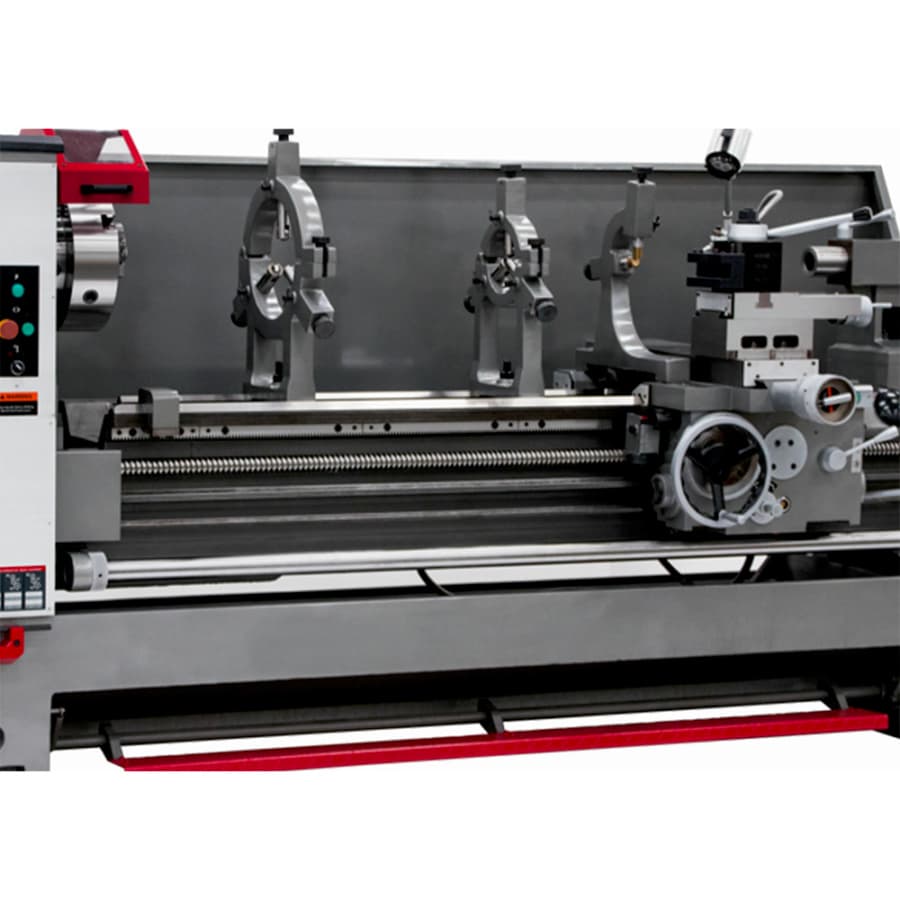

Constructed using the Certified Meehanite® casting process for added durability, the Jet ZH-Series 4-1/8" Spindle Bore Lathes provide consistent and reliable operation. Features include a clutch operated headstock with all headstock gears hardened and ground, a universal gearbox, fully integrated coolant system, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. These are the features you've come to expect in a Jet Lathe that is backed by the industry-leading Jet Two Year Warranty. Features: • 12" 3 Jaw scroll chuck with top reversing jaws • 2 Steady rests with roller bearings • Bed ways are induction hardened and ground for durability • E-Stop on Carriage for added safety • Electronic Chuck Key Holder • Fitted top mats to hold tooling • Full Length Splash Guard • Heavy-duty tailstock and quill • Large easy to use foot brake • Rapid power traverse to cross slide and carriage
Specifications
| Box Quantity | 1 |
| Width of Bed | 16" |
| Range of Cross Feeds (IPR) | .010 - .0404 |
| Product Type | Lathes |
| Overall Height | 57" |
| Overall Dimensions (L x W x H) | 138" x 43" x 57" |
| Number of Spindle Speeds | 12 |
| Number of Metric Threads | 22 |
| Number of Longitudinal and Cross Feed Rates | 65 |
| Number of Inch Threads | 48 |
| Range of Inch Threads (TPI) | 2 - 30 TPI |
| Range of Longitudinal Feeds (IPR) | .0023 - .0937 |
| Range of Metric Threads | |
| Taper in Tailstock Spindle | MT-5 |
| Tailstock Spindle Travel | 6" |
| Swing Through Gap | 34" |
| Swing Over Cross Slide | 16-1/2" |
| Steady Rest Capacity | Small 25/32" - 4-29/32", Large 3-15/16" - 9-7/16" |
| Spindle Taper with Sleeve | MT-5 |
| Spindle Mount | D1-8 |
| Range of Spindle Speeds (RPM) | 36 - 1,600 RPM |
| Modular Pitch Threads Range | |
| Modular Pitch Threads Number | |
| Max Tool Size | 1-1/4" x 1-1/4" |
| Amperage Draw @ 460V 3Ph | |
| Amperage Draw @ 230V 3Ph | |
| Bed Gap | 8 |
| Swing Over Bed | 26" |
| Size | 26" x 80" |
| Motor Amps | 25.4/12.7 |
| Distance Between Centers | 80 |
| Prewired Voltage | 230 V |
| Spindle Thread (In./TPI) | |
| Carriage Travel | 72-1/2" |
| Compound Slide Travel | 5-1/2" |
| Length of Gap | 8" |
| Input Power | 230/460V, 3Ph |
| Follow Rest Capacity | 25/32" - 3-15/16" |
| Drive | Geared Head |
| Diametral Pitch Threads Number | 24 |
| Cross Slide Travel | 12-3/32" |
| Coolant Pump Motor | 1/8" |
| Configurator Option Type | Base Machine |
| Configurable Base Item | Yes |
| Motor Phase | 3 |
| Speed Range | |
| Centerline of Spindle to Floor (In.) | |
| Spindle Bore | 4-1/8" |
| Headstock Movement | |
| Wiring Remarks | Additional Fee required to rewire to 460V |
| Spindle Taper | MT5 |
| Number of Indexing Positions | |
| Swing Over Tool Rest Base (In.) | |
| Motor Power (HP) | 10 HP |
| Outboard Turning | |
| Spindle Speeds | |
| Ram Travel Quill Travel | |
| Bed Construction | Cast Iron |
| Recommended Circuit Size (Amps.) | |
| Quill Taper | |
| Style (Type) | |
| Tailstock Bore | |
| Outboard External Threads (In. x TPI) | |
| Motor Voltage (V.) | 230V/460V |
| Horsepower | |
| Warranty | |
| Height | |
| Phase | |
| Length | |
| Width |
