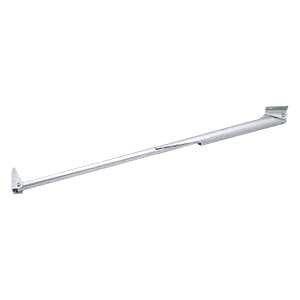

430.8mm Folding Bracket, Anodized

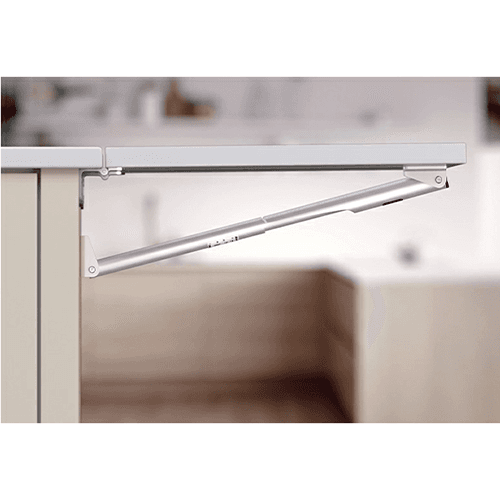

They lock into position automatically whenever the flap is fully extended into the opened position. To release the lock and fold the shelf down, simply press the lever on the bracket. With a load capacity of up to 132 pounds (including the weight of the shelving itself), these folding brackets are well-suited for many uses in homes and businesses.

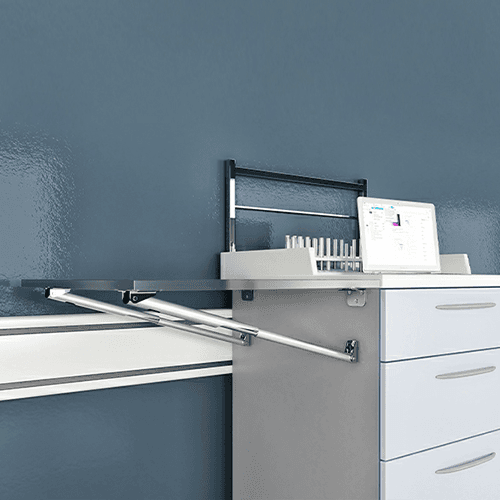

These folding brackets also make excellent drop leaf supports and can be used in a variety of other applications as well.

Specification:
• 430.8mm Folding bracket in anodized aluminum finish
• Shelf / Panel Thickness: 19/32" – 1-3/8" (15 – 35 mm)
• Shelf Depth1: 16-13/16" – 17-51/64" (427 – 452 mm)
• Max. Shelf Width, 1 Bracket: 23-5/8" (600 mm)
• Max. Shelf Width, 2 Brackets: 51-3/16" (1300 mm)

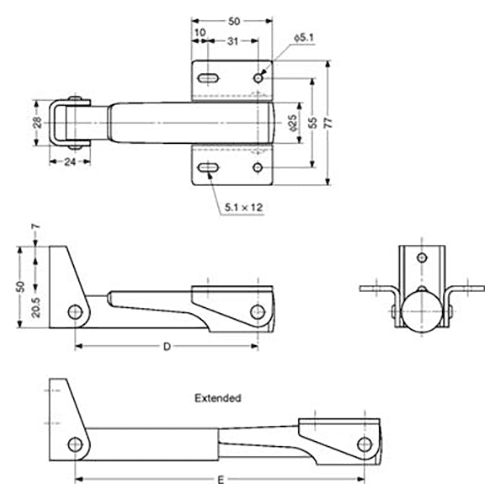

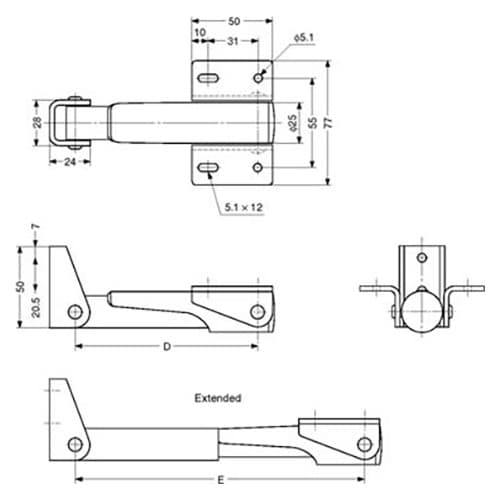

• Bracket Length When Extended2: 16-61/64" (430.8 mm)
• Bracket Length When Folded2: 10-11/64" (258.5 mm)
• Total Vertical Height to Shelf Bottom3: 5-1/8" (130 mm)
• Includes: 63/64" – 1-31/32" (25 – 50 mm) for non-foldable supporting lip
• As measured between pivot points
• Allow 25/64" (10 mm) additional clearance on the bottom
