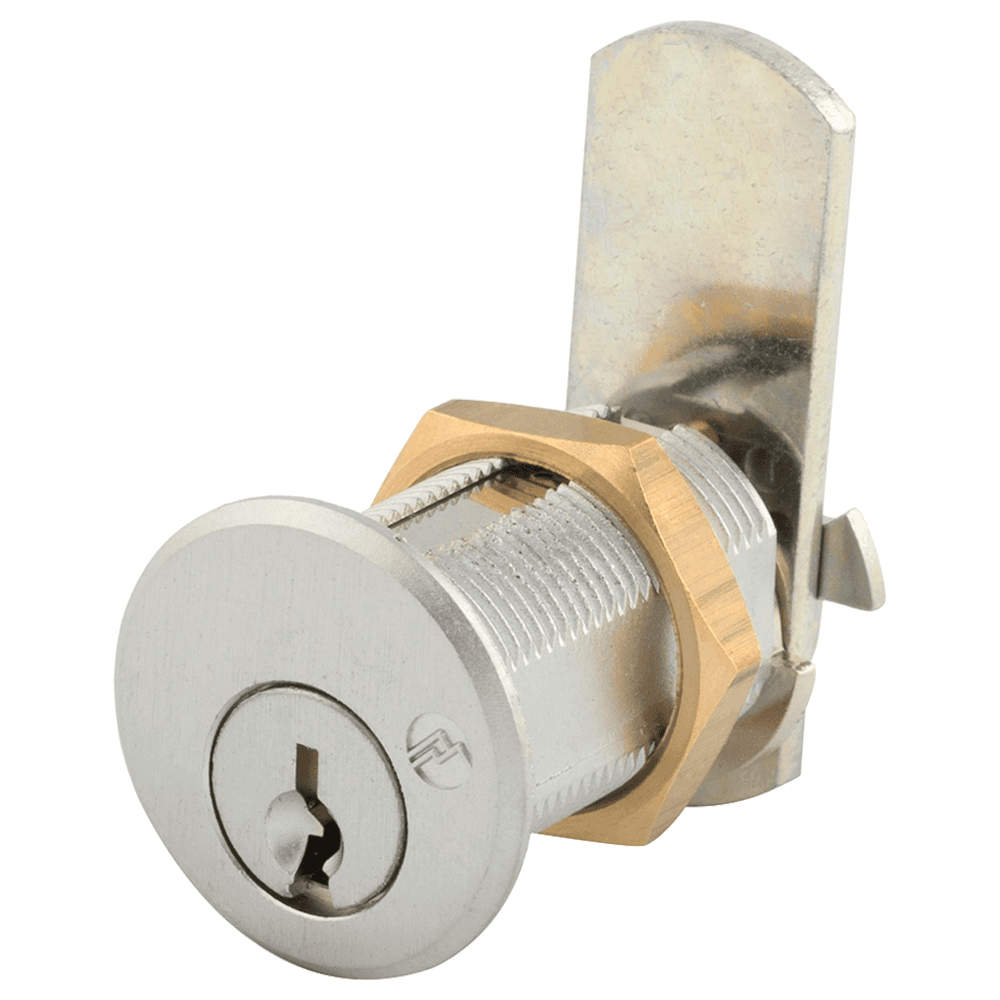

DCN N Series Pin Tumbler Cam Lock for 3/4" Material Thickness, Satin Chrome, KA51004 Key
25 items
Keyed As: KA51004 Key
Finish: Satin Chrome
Certifications: ANSI/BHMA Grade 1 E07261/E07271
Hardware Included: Yes
Product Details
• KA51004 Key DCN Cam Lock is finished in satin chrome
• Keying: Can be keyed together with other N Series locks
• Rekeyable: Easily rekeyable via cylinder retainer clip
• ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07261/E07271
• Woodwork Institute: (WI) acknowledged product
• Body: Zinc die cast; Cylinder: Zinc die cast, pin tumbler
• Standard function: Key removable in locked or unlocked position
• Cams: 2 reversible cams work in all positions
• Face: 1" face covers splintering, no additional trim ring required
Keying Information:
• Keyway: N Series (equivalent to National D4291 4-pin or D4292 5-pin system)
• Keys: Includes 2 keys per lock
• Stock keying: Custom key
• Stock KA#: KA 51001,51002,51003,51004
Includes:
• (1) DCNP-100-SC straight cam
• (1) DCNP-100-BC offset reversible cam
• (1) DCNP-500-ARP anti-rotation plate
• (1) DCNP-200-OCD lost-motion cam shifter
This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Keyed As | KA51004 Key |
| Finish | Satin Chrome |
| Product Type | Cam Lock |
| Width | |
| Height | |
| Cam Length | |
| Depth | |
| Material | Zinc Die-Cast |
| Mounting Type | |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | 3/4" |
| Certifications | ANSI/BHMA Grade 1 E07261/E07271 |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | Yes |
| Tumbler Type | Pin Tumbler |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
