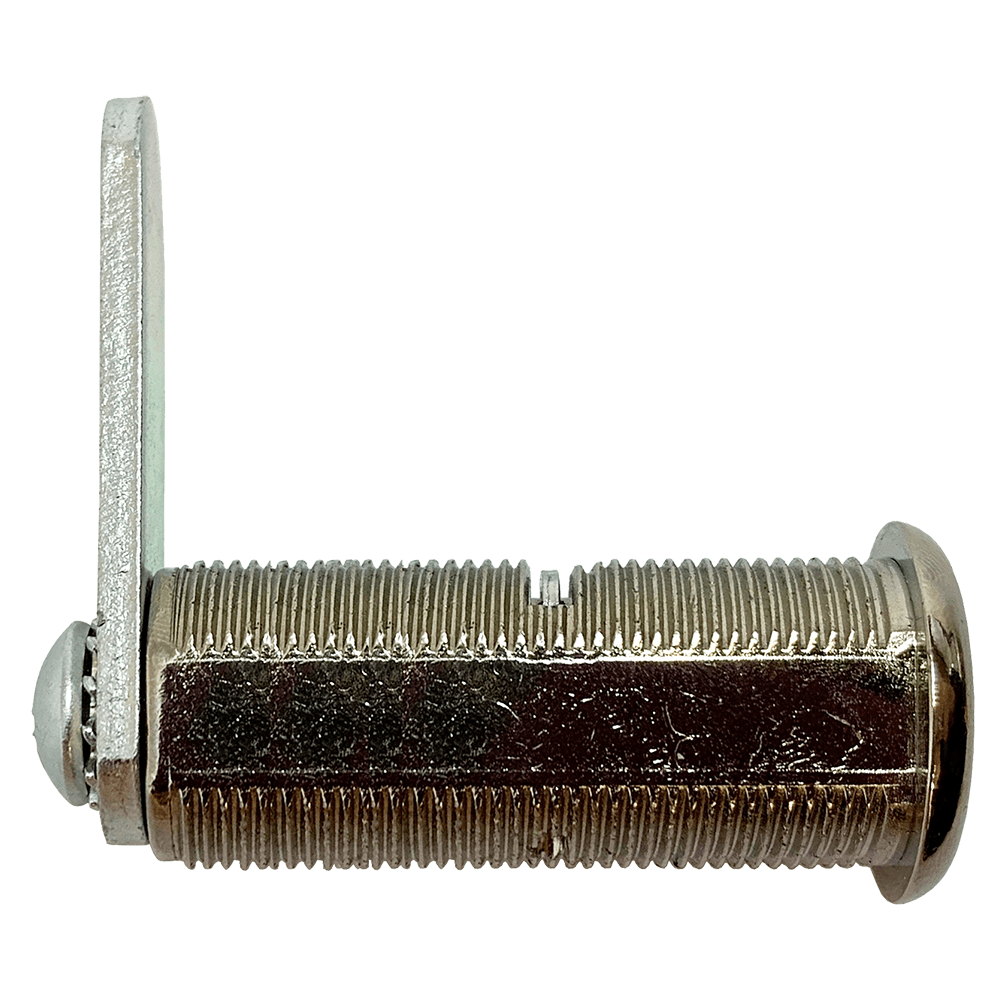

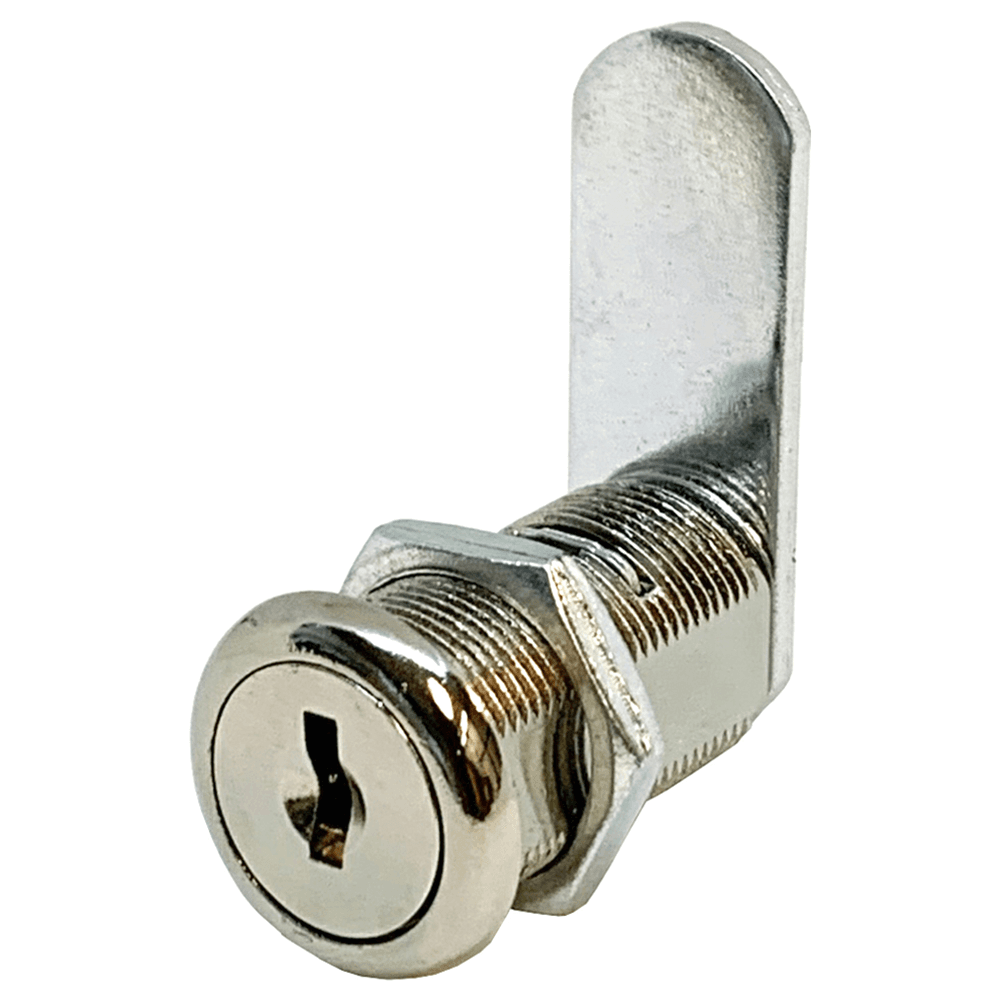

953 Disc Tumbler Cam Lock for Doors/Drawers Application, Bright Nickel, Custom Keyed
Item # OL953-CUST-14A
•Mfr # 953-14A-CUST
$13.32
/Each
Keyed As: Custom Keyed
Finish: Bright Nickel
Certifications: N/A
Hardware Included: N/A
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:

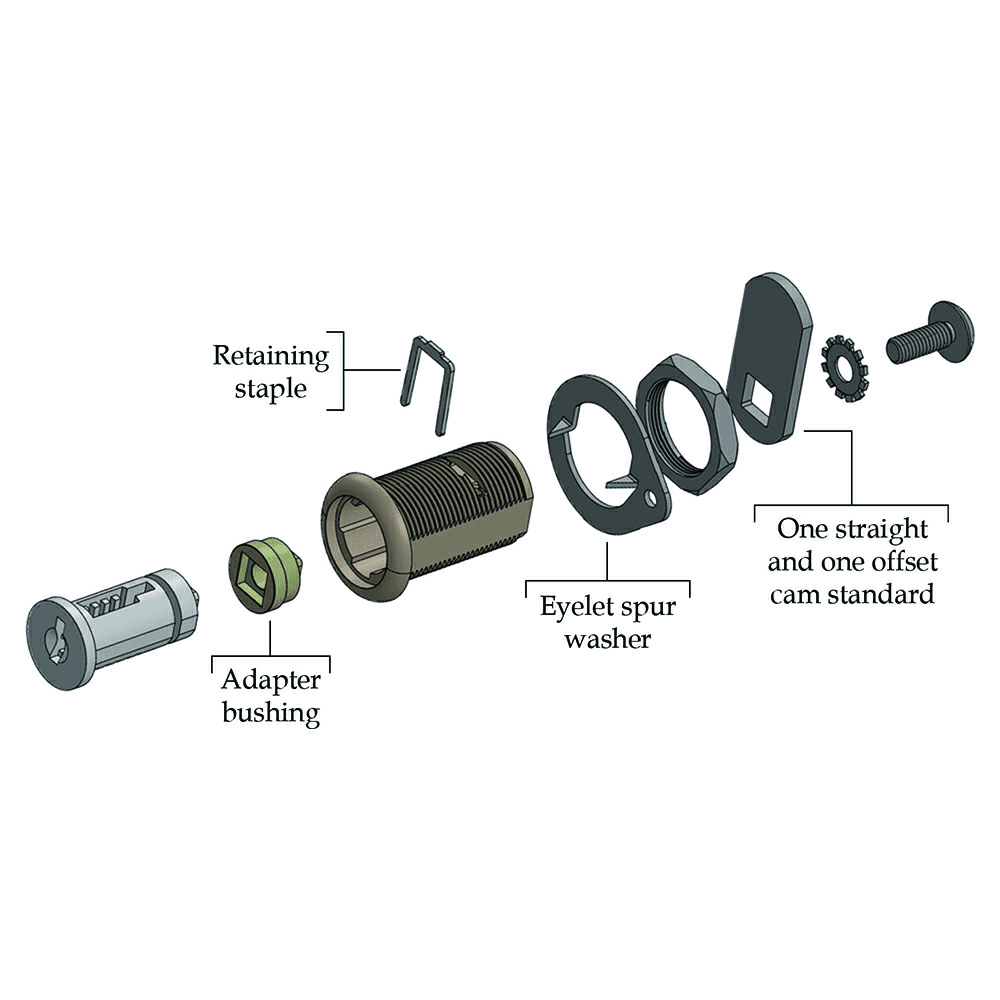

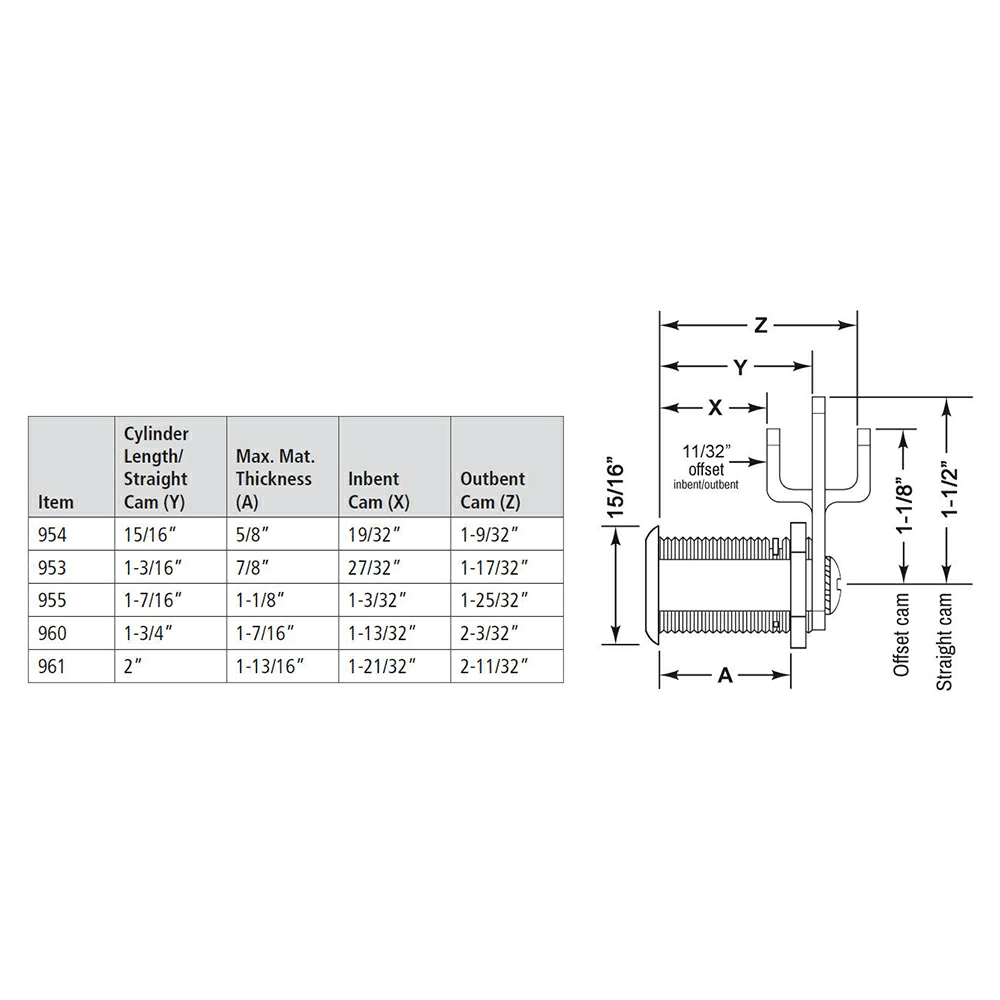

• Custom keyed cam lock in bright nickel finish • Lock comes assembled • Passed ANSI/BHMA Grade 2 cycle test: 20,000 cycles including key insertion and removal • Shipped with cylinder and body assembled via patented retainer staple • Keys are not required for assembly • Spur washer with eyelet • When screwed into place, the spur washer prevents lock rotation and keeps fixing nut from loosening after installation • Revolutionary cylinder + cylinder extender allows cylinders to easily be swapped between different size cam lock bodies increasing inventory and keying flexibility • Custom keying typically ships direct from mfr in 48-72 hours • 90deg cam turn • For drawers, right-hand or left-hand doors • Lipped/overlay construction (1-1/2" straight cam) or flush construction (1-1/8" extension, 11/32" offset offset cam) • For overlay application, the combined thickness of front and frame cannot exceed the cylinder length listed below • Key removable in both locked and unlocked positions • Includes: 2 keys, 2 cams, eyelet spur washer, fixing nut, trim ring, cam screw with star washer and retainer staple • All Custom keyed, various lock numbers, master key will not work on these locksSpecifications
| Keyed As | Custom Keyed |
| Finish | Bright Nickel |
| Product Type | Cam Lock |
| Width | |
| Height | |
| Cam Length | |
| Depth | |
| Material | Zinc Die Cast |
| Mounting Type | |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | 15/16" |
| Certifications | |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | |
| Tumbler Type | Disc |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
