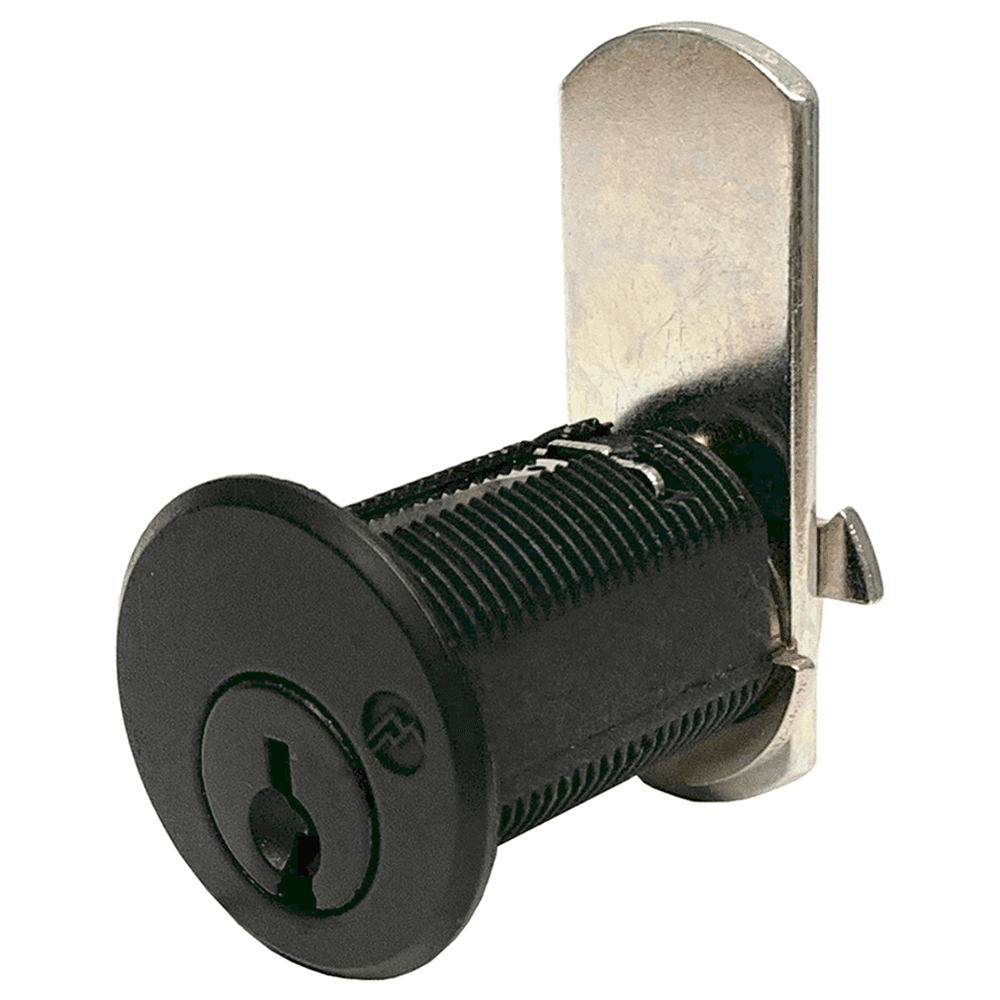

DCN N Series Pin Tumbler Cam Lock for 3/4" Material Thickness, Flat Black, Custom Keyed
Item # OLDCN1-19-CUST
•Mfr # DCN1-US19-CUST
$35.64
/Each
Keyed As: Custom Keyed
Finish: Flat Black
Certifications: N/A
Hardware Included: N/A
Min Order: 1
Qty mult. by: 1
Product Details
Features:
• KA101 Key DCN cam lock is finished in flat black • Keying: Can be keyed together with other N Series locks • Rekeyable: Easily rekeyable via cylinder retainer clip • ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07261/E07271 • Woodwork Institute: (WI) acknowledged product • Body: Zinc die cast; Cylinder: Zinc die cast, pin tumbler • Standard function: Key removable in locked or unlocked position • Cams: 2 reversible cams work in all positions • Face: 1" face covers splintering, no additional trim ring required Keying Information: • Keyway: N Series (equivalent to National D4291 4-pin or D4292 5-pin system) • Keys: Includes 2 keys per lock • Stock keying: KD/KA - 4 pin standard • Stock KA#: 101, 103, 107, 915 • Masterkeyed: 5 pin standard; Grand masterkeyed: Available Includes: • (1) DCNP-100-SC straight cam • (1) DCNP-100-BC offset reversible cam • (1) DCNP-500-ARP anti-rotation plate • (1) DCNP-200-OCD lost-motion cam shifterSpecifications
| Box Quantity | 1 |
| Keyed As | Custom Keyed |
| Finish | Flat Black |
| Product Type | Cam Lock |
| Width | |
| Height | |
| Cam Length | |
| Depth | |
| Material | Zinc Die-Cast |
| Mounting Type | |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | 3/4" |
| Certifications | |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | |
| Tumbler Type | Pin Tumbler |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
