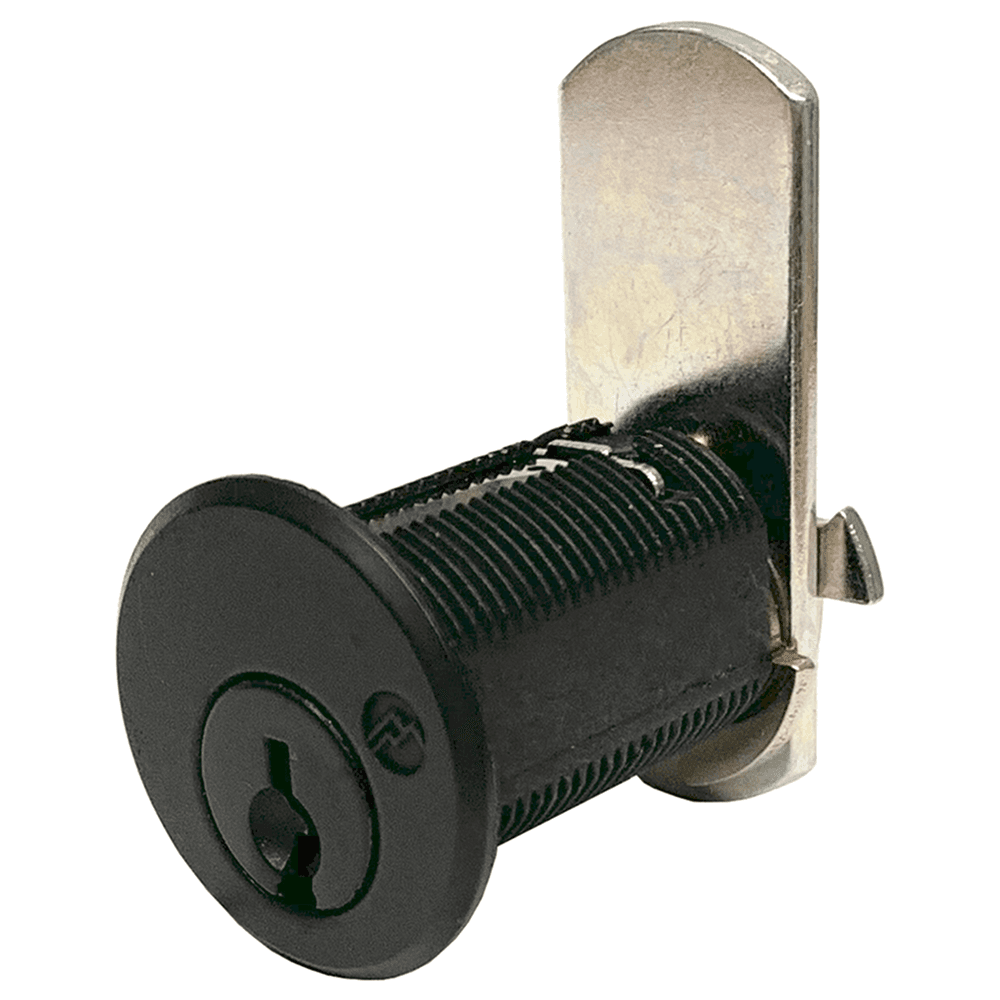

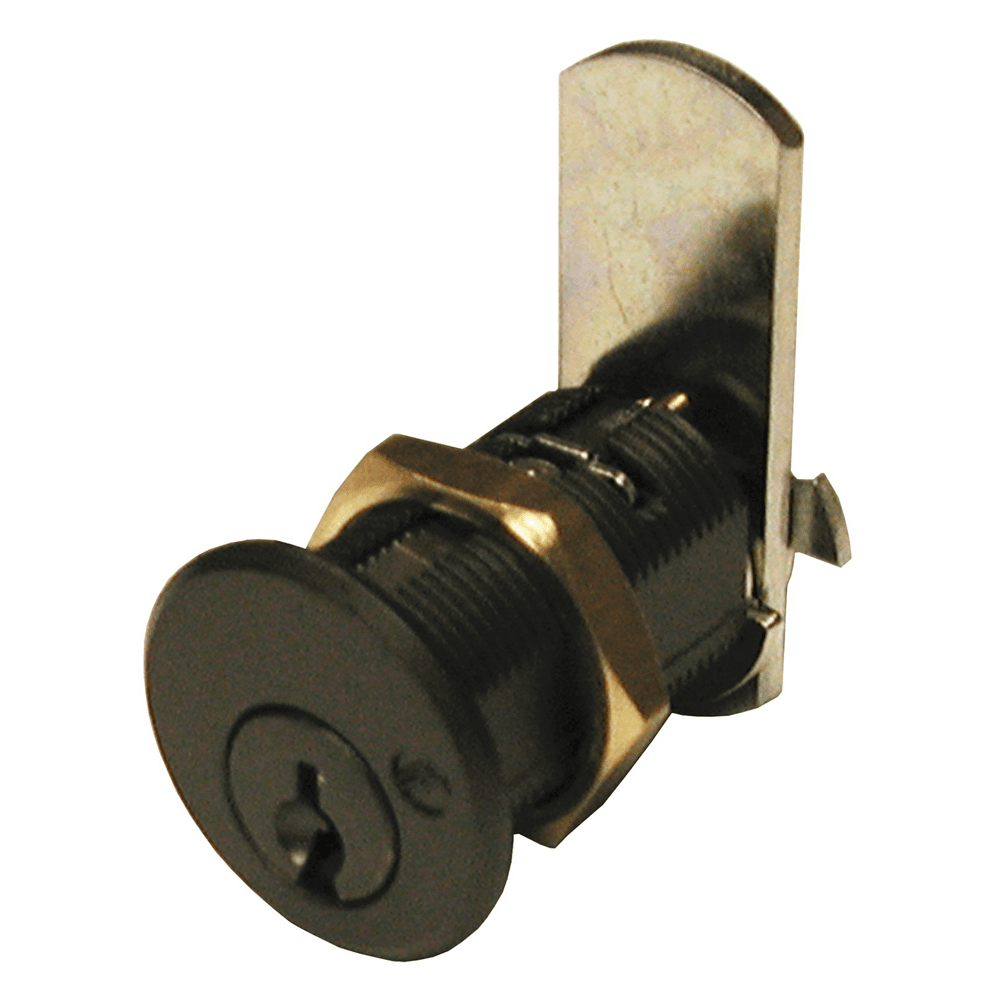

DCN N Series Pin Tumbler Cam Lock for 1-1/2" Material Thickness, Flat Black, Custom Keyed
Item # OLDCN4-19-CUST
•Mfr # DCN4-US19-CUST
Keyed As: Custom Keyed
Finish: Flat Black
Certifications: N/A
Hardware Included: N/A
Product Details
Features:
• KA101 Key DCN Cam Lock is finished in flat black • Keying: Can be keyed together with other N Series locks • Rekeyable: Easily rekeyable via cylinder retainer clip • ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07261/E07271 • Woodwork Institute: (WI) acknowledged product • Body: Zinc die cast; Cylinder: Zinc die cast, pin tumbler • Standard function: Key removable in locked or unlocked position • Cams: 2 reversible cams work in all positions • Face: 1" face covers splintering, no additional trim ring required Keying Information: • Keyway: N Series (equivalent to National D4291 4-pin or D4292 5-pin system) • Keys: Includes 2 keys per lock • Stock keying: KD/KA - 4 pin standard • Stock KA#: 101, 103, 107, 915 • Masterkeyed: 5 pin standard; Grand masterkeyed: Available Includes: • (1) DCNP-100-SC straight cam • (1) DCNP-100-BC offset reversible cam • (1) DCNP-500-ARP anti-rotation plate • (1) DCNP-200-OCD lost-motion cam shifterSpecifications
| Box Quantity | 1 |
| Keyed As | Custom Keyed |
| Finish | Flat Black |
| Product Type | Cam Lock |
| Material | Zinc Die-Cast |
| Cylinder Diameter | 3/4" |
| Tumbler Type | Pin Tumbler |
