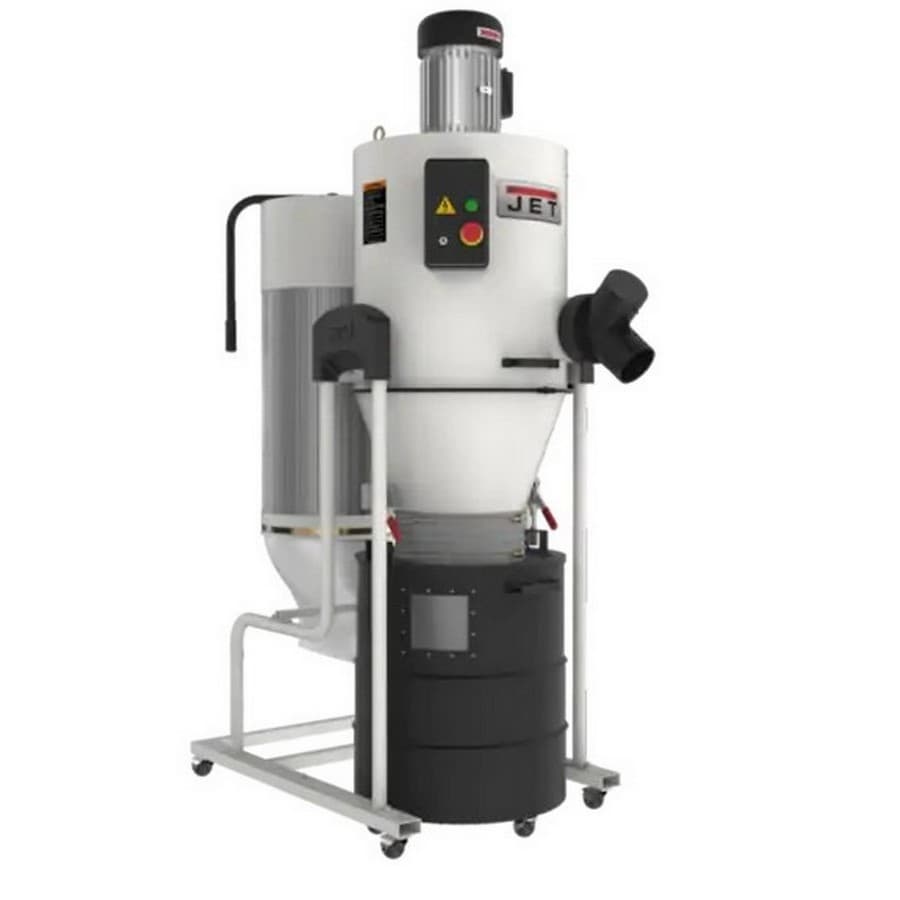

Jet Tools 717520 JCDC-2 Cyclone Dust Collector 2HP Single Phase 230V

Are you ready to get more from your dust collector? The Cyclone Dust Collector Collection from JET delivers the efficiency you’ve been waiting for. With a direct mount filter, a radio frequency remote control and a large collection bin these dust collectors take your shop’s capabilities to a new level. Upgrade to a JET Cyclone Dust Collector and experience The Power of Efficiency.

Features

• Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
• Double paddle manual cleaning system quickly cleans the pleated filter
• Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
• Heavy debris is captured in a 30 gallon drum with quick release levers and independent casters for quick emptying
• Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
• Included radio frequency remote control works from up to 50 feet away
• Remote timer settings allows system to run for 2, 4, 6, or 8 hours before automatic shutoff
• Swivel casters make it easy to move the unit around the shop
• The cyclone's two stage separation provides more working CFM than comparable horsepower single stage units

Specifications

Static Pressure Loss (US Method) (Wc.) - 2.52

Static Pressure Loss (EU Method) (Wc.) - 3.78

MERV Value - 13

Filter Efficiency (Micron) - 1

Canister Filter Length (In.) - 22-5/8

Max. Static Pressure (Wc.) - 10.079

Collection Drum Capacity (gal.) - 30

Impeller Material - Steel

Motor Power (HP) - 2

Footprint (L x W/In.) - 50-5/8 x 25-7/8

1-Hose Connection Diameter (In.) - 6

2-Hoses Connection Diameter (In.) - 4

Motor Voltage (V.) - 230

Prewired Voltage (V.) - 230
