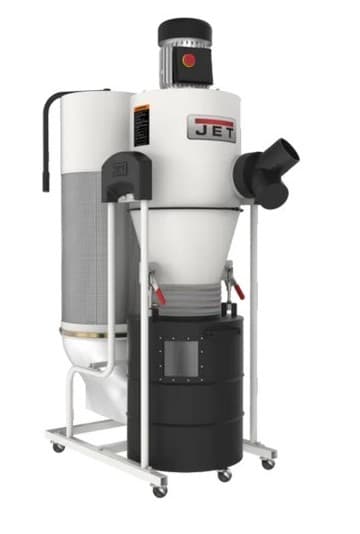

Jet Tools 717515 JCDC-1.5 Cyclone Dust Collector 1-1/2HP Single Phase 115V

Are you ready to get more from your dust collector? The Cyclone Dust Collector Collection from JET® delivers the efficiency you’ve been waiting for. With a direct mount filter, a radio frequency remote control and a large collection bin these dust collectors take your shop’s capabilities to a new level. Upgrade to a JET® Cyclone Dust Collector and experience The Power of Efficiency.

Features

• Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
• Double paddle manual cleaning system quickly cleans the pleated filter
• Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
• Heavy debris is captured in 20 gallon drum with quick release levers and independent casters for quick emptying
• Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
• Included radio frequency remote control works from up to 50 feet away
• Swivel casters make it easy to move the unit around the shop
• The cyclone's two stage separation provides more working CFM than comparable horsepower single stage units

Specifications

Static Pressure Loss (US Method) (Wc.) - 1.535

Static Pressure Loss (EU Method) (Wc.) - 2.677

MERV Value - 13

Filter Efficiency (Micron) - 1

Canister Filter Length (In.) - 15-3/4

Max. Static Pressure (Wc.) - 8.268

Collection Drum Capacity (gal.) - 20

Sound Rating (Db.) - 75

Impeller Material - Steel

Motor Power (HP) - 1.5

Footprint (L x W/In.) - 47 x 22

1-Hose Connection Diameter (In.) - 6

2-Hoses Connection Diameter (In.) - 4

Motor Voltage (V.) - 115

Prewired Voltage (V.) - 115

Motor Amps - 14
